TransAct Epic 430 - Print Mechanism; Rev Q

Parts List
43-06955 - Rev Q Page 71

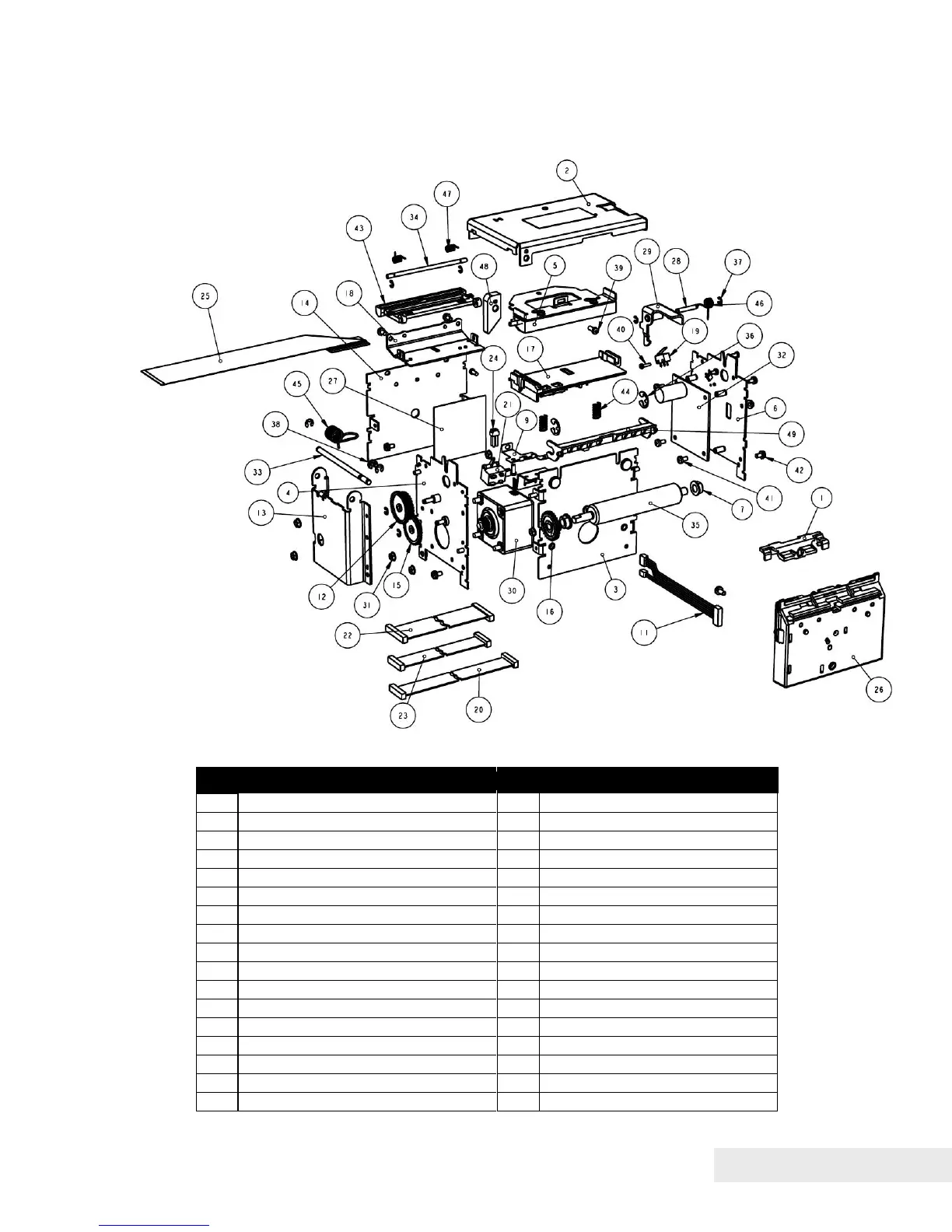

Print Mechanism
No.
Description (standard parts)
Qty.
Part No. (History)
1
Assy - Jam Sensor
1
43-08980 (43-06626)
2
Assy - Top Cover Label
1
43-07020 (43-06630, 43-06728, 43-06443)
3
Assy - Front Plate
1
43-08485 (43-06654) (43-06593)
4
Assy - Left Side Plate
1
43-07010 (43-06587)
5
Assy - Print Head Bracket
1
43-06430
6
Assy - Right Side Plate
1
43-07008 (43-06730, 43-06588)
7
Bearing - Platen
2
43-06436
8
Bracket - Sensor Mount (Paper Out)
1
43-06434
9
Bracket - Sensor Mount (TOF)
1
43-06707 (43-06417)
10
Cable Tie 3 3/8" (not shown)
3
98-0941
11
Cable - Knife Motor/Sensor
1
43-05507L
12
Combo Gear - 48/28 Idler
1
28-03705
13
Cover - Gear (Print Mechanism)
1
43-06576
14
Frame - Rear
1
43-06711 (43-06397)
15
Gear - Combo 26/46 Drive
1
28-03707
16
Gear - Platen
1
28-03942
17
Guide - Bottom Paper (82.5mm)
1
43-07408 (43-07013, 43-06401)
