TransAct Epic 430 - Remote Base Assembly

90 pages

Save Page as PDF

To Next Page

To Previous Page

Parts List

43-06955 - Rev Q Page 75

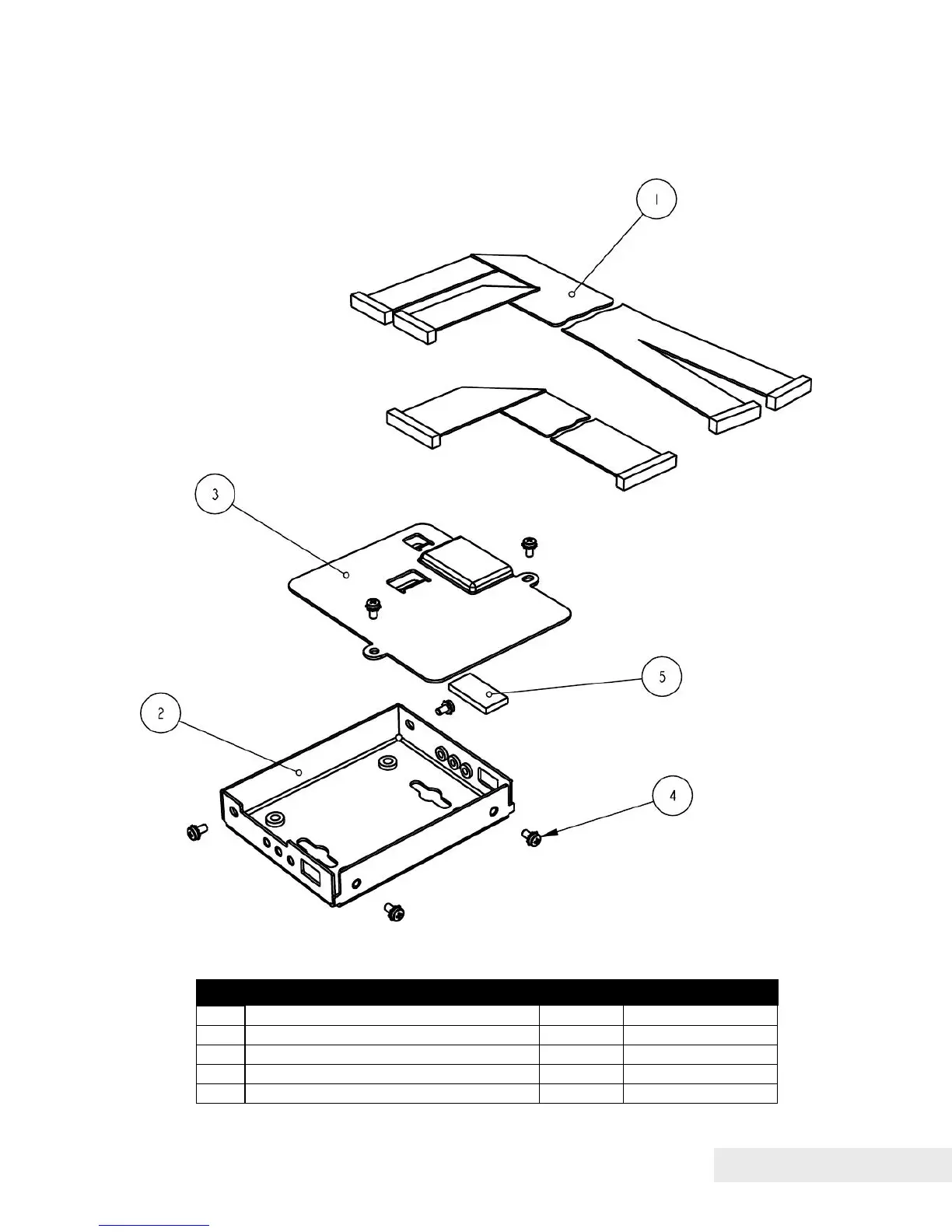

Remote Base Assembly

‘

No.

Description (standard parts)

QTY.

Part No. (History)

Assy-Remote Cable

43-06553L

Base-Printer Mounting

43-06652 (43-06323)

Cover-Connection Opening

43-06598 (43-06358)

Screw-M3x6mm Sems Phps Phd

98-02215

Tape-1/8” Foam

98-03599
