Assembly and Disassembly
43-06955 - Rev Q Page 53
Principal Subassemblies for the Epic 430™
Printer
The principal electromechanical component of the Epic 430
TM
printer is the
printer mechanism assembly, which itself contains numerous subassemblies.
The assembly instructions in this chapter refer to the following principal
subassembly components for the printer mechanism assembly, outlined in
further detail in the Parts List chapter.

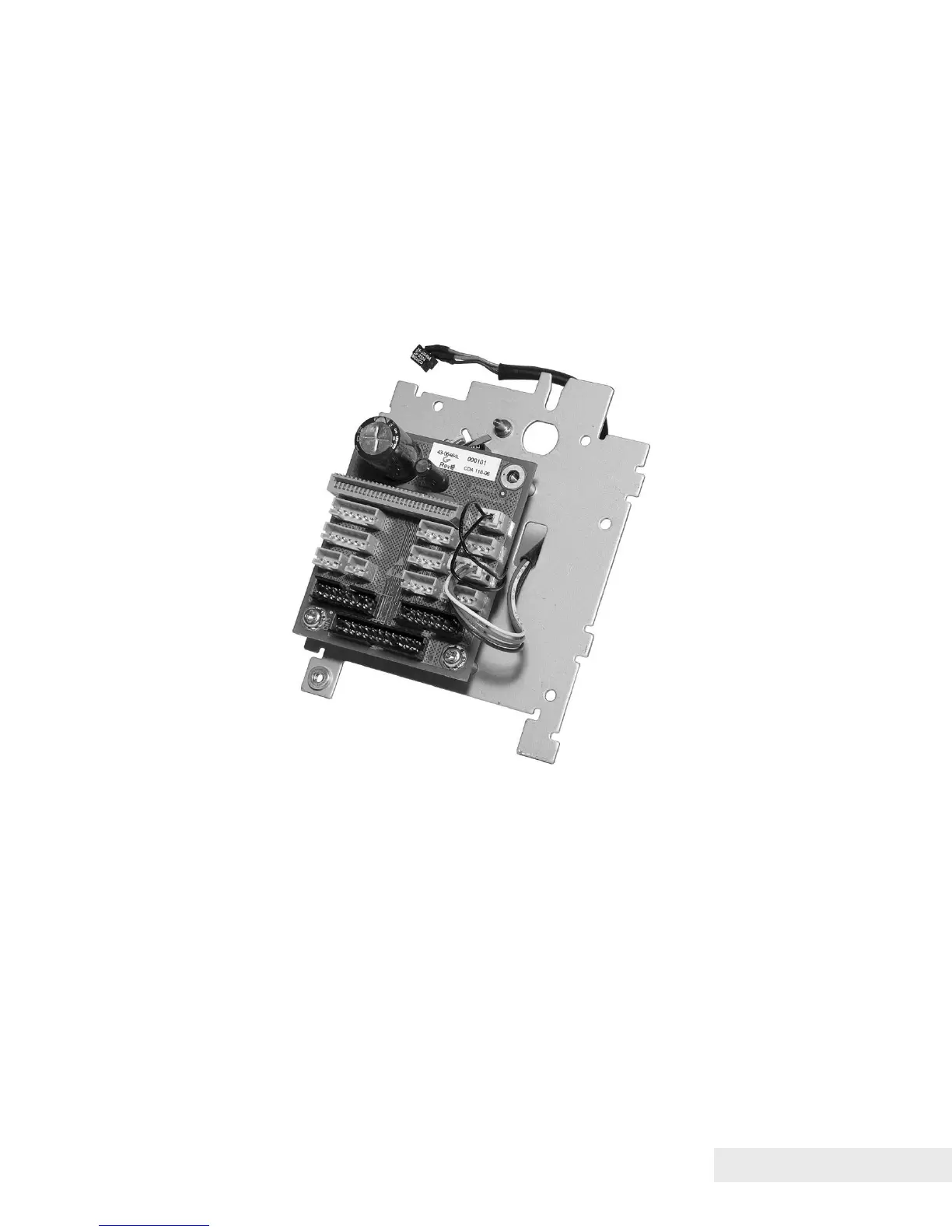

Figure 15. Right Side Frame Assembly.
