Assembly and Disassembly
Page 60 43-06955 - Rev Q
Step 3. Connect Transport Assembly

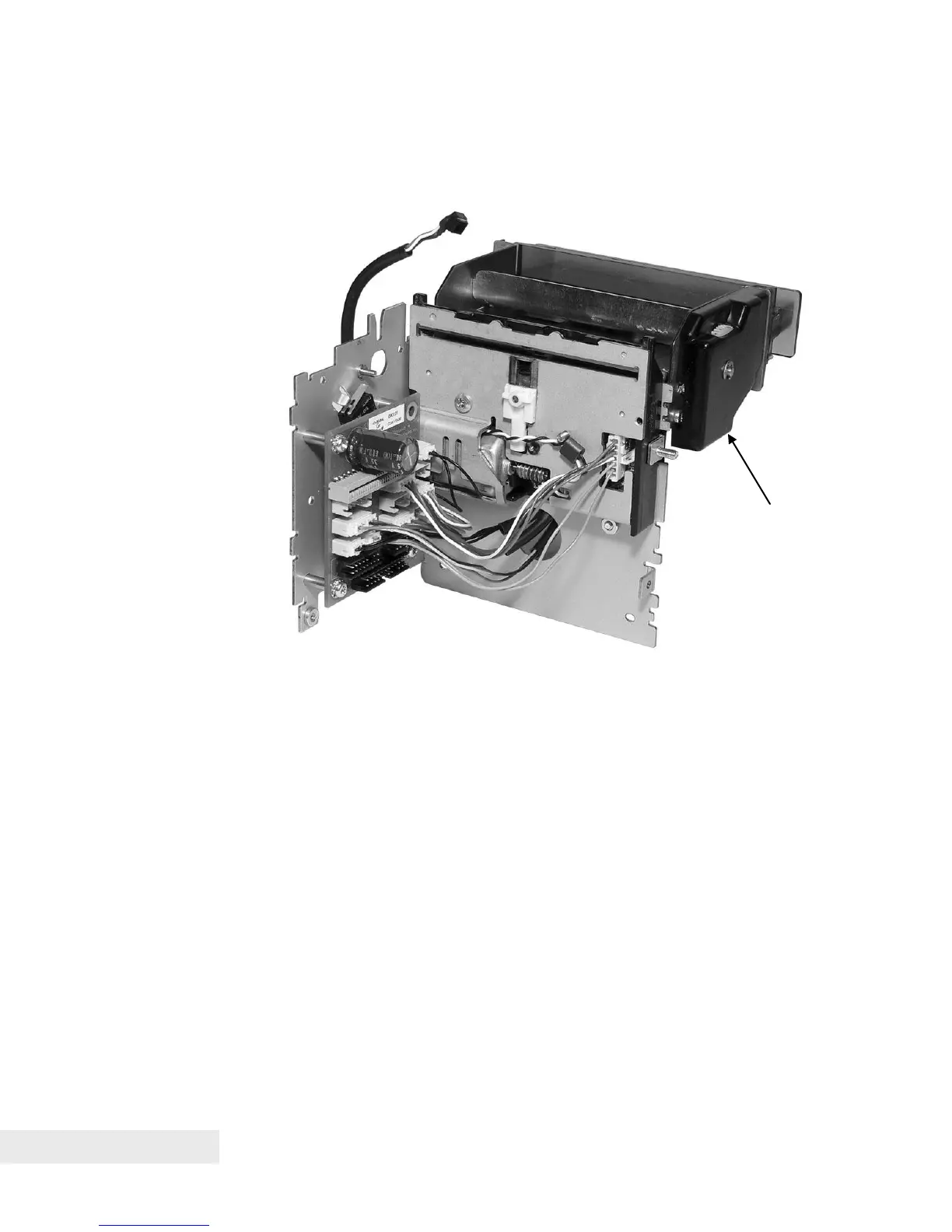

Figure 25. Connect Transport Assembly
• Mount the Transport Assembly by positioning the flange of the transport
assembly over two corresponding mounting studs on the front of Front
Plate Assembly, and then fastening it to the front of the plate using two M3
Sems screws.
• Thread the Ticket Taken Sensor, Transport Motor, and Bezel Lamp
connections from the Transport Assembly through the hole at the bottom
of the Front Plate Assembly, and then plug these into the appropriate
color-coded connectors on the printed circuit board located on the Right
Side Frame Assembly, as follows:
• Ticket Taken Sensor: connector CN7 (black)
• Transport Motor: connector CN8 (white)
• Bezel Lamp: connector CN5 (white)
