Assembly and Disassembly
43-06955 - Rev Q Page 61
Step 4. Connect Jam Sensor Assembly

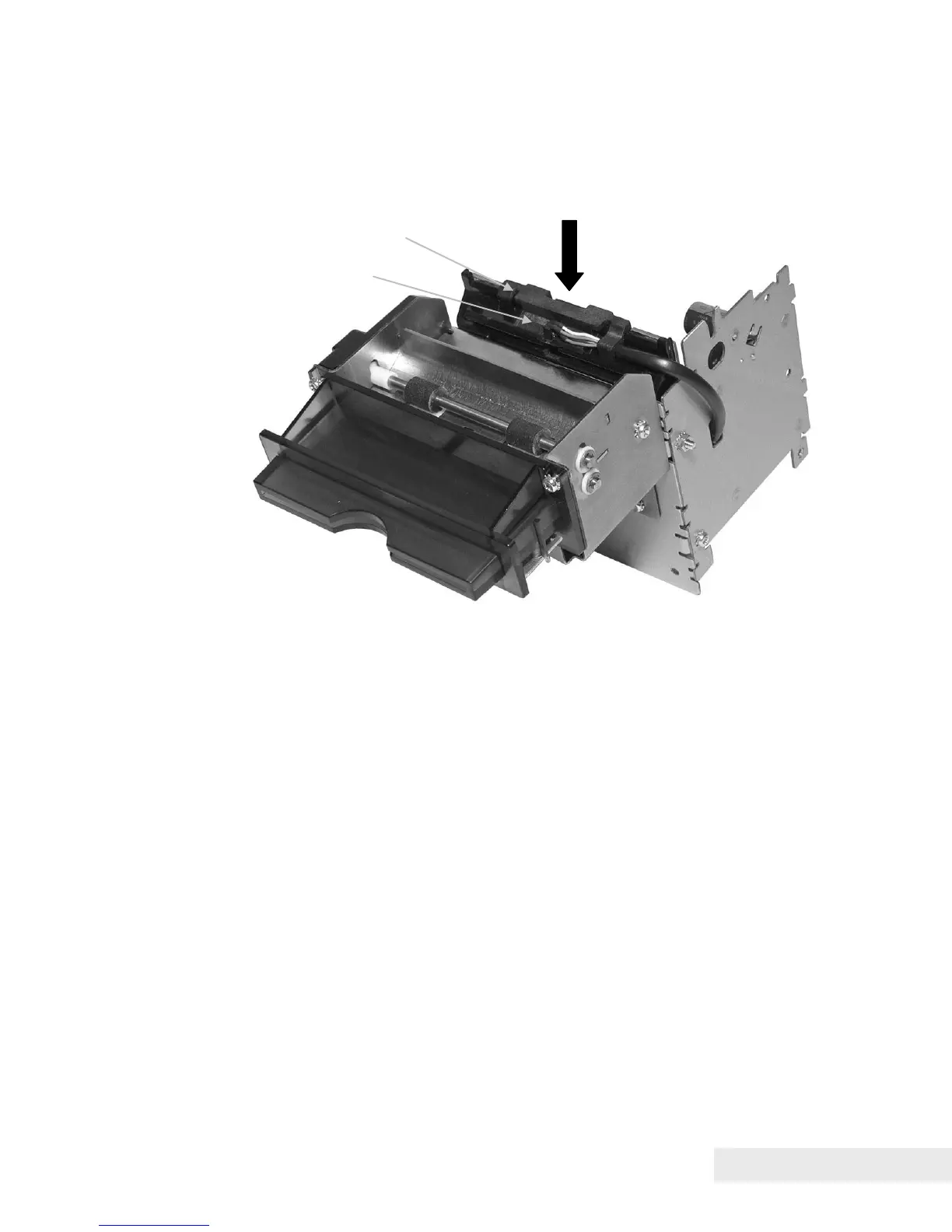

Figure 26. Connect Jam Sensor Assembly
• Attach Jam Sensor to the corresponding slot on the Jam Sensor Bracket,
mounting the sensor into the center opening, then pressing the wiring into
place inside the tab on the right side of the assembly.
• Snap the Jam Sensor Bracket on top of the Knife Assembly, pressing
down into place as shown in the figure.
