Custom Bezel Specifications and Recommendations
Custom Bezel to Printer Mechanism mounting points
Epic 430
TM
printers are designed to accommodate an optional bezel assembly
that is mounted following the hardware and mounting dimensions as listed.
(Bezel assemblies are available from TransAct as an option with your printer.)

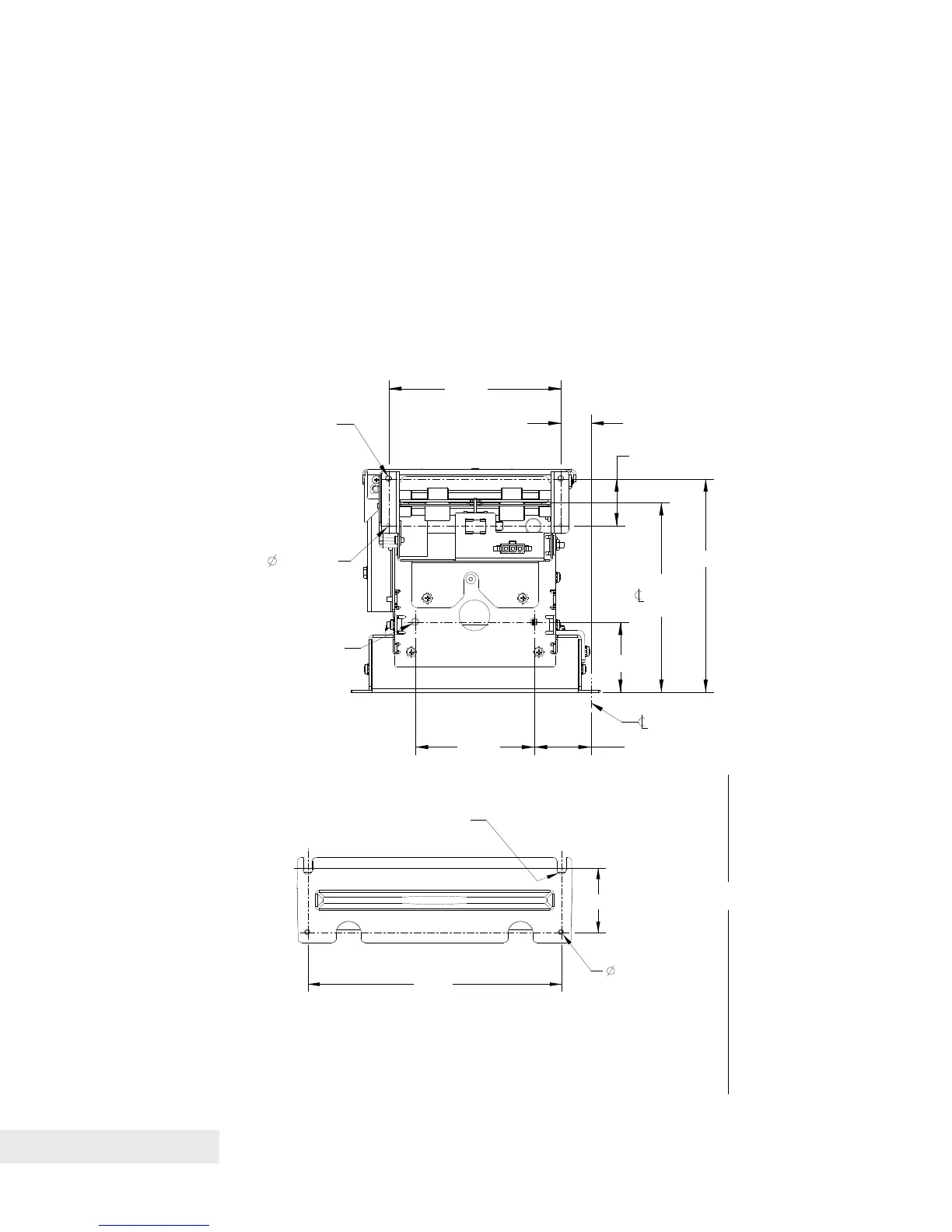

The following drawing shows the positioning and dimensions of the Epic 430
TM
printer’s mounting points.
Front: 2x M3x 0.5 screws and interface with custom bezel.
4.060
REF.702
1.100
TICKET
EXIT
4.458
REF5.014
1.646
1.3322.800
-2PL.100
M3 THREAD-2PL
M4 THREAD-2PL
OPTIONAL REMOTE
MOUNTING
MOUNTING SLOT
PRINTER VIEW
4.060
MOUNTING
BOSS - 2PL
.090
1.100
M3 MOUNTING
SCREW - 2PL
Figure 10. Custom Bezel Mounting and Hardware Requirements
