TransAct Epic 430 - Printer Sensors; Paper out Sensor; Figure 11. Sensor Breakdown and Locations

Printer Sensors
43-06955 - Rev Q Page 43
Printer Sensors
The Epic 430
TM
printer uses several sensors to provide feedback to the host
system, as pictured in Figure 11.

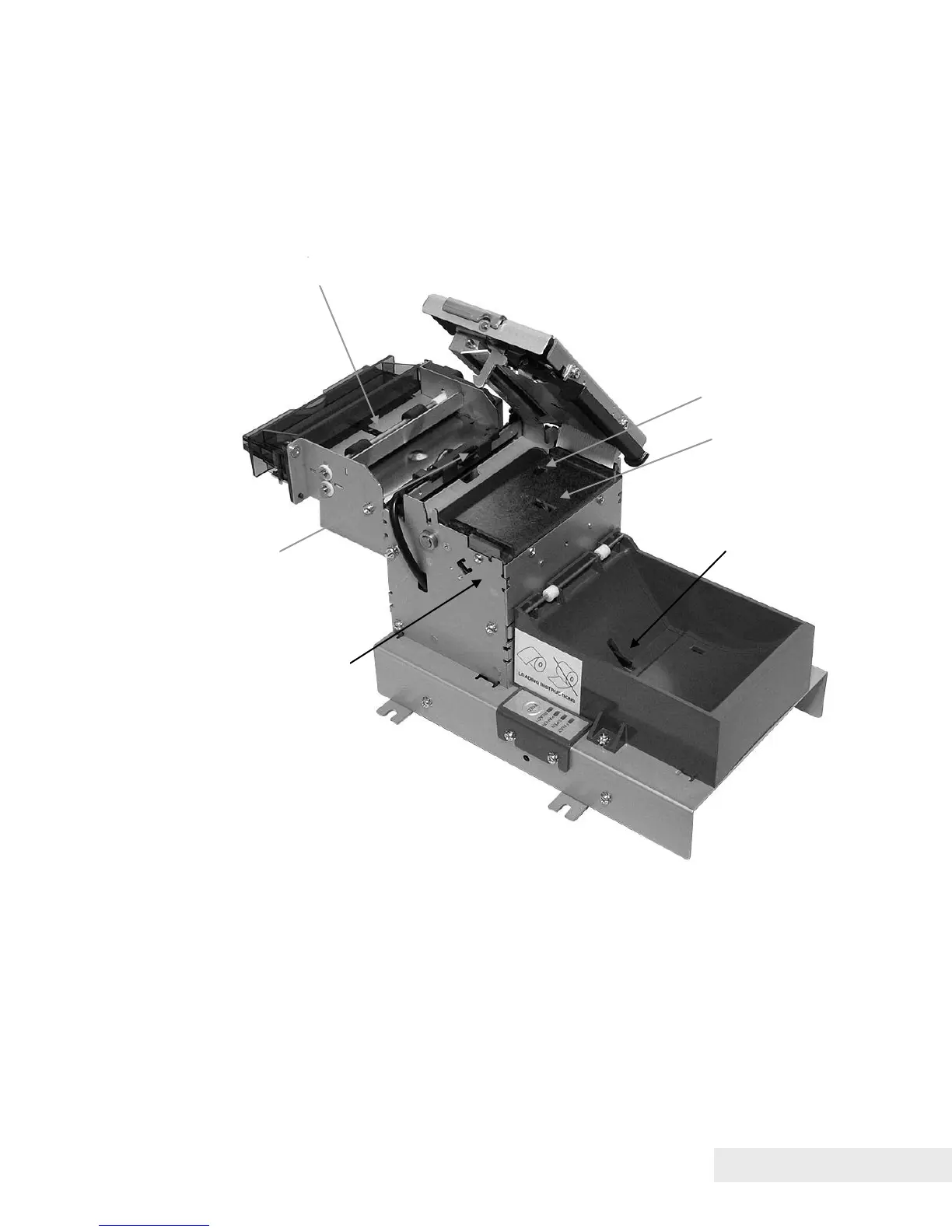

Figure 11. Sensor Breakdown and Locations.
Paper Out Sensor
A Paper Out Sensor, mounted to the Lower Paper Guide, optically senses a
Paper Out flag located in the ticket path. When the sensor detects the flag, it
indicates that the ticket roll is depleted.
Anti-Jam Sensor
Paper Low Sensor
Cover-Open Switch
(located on inner
frame)
Top-of-Form Sensor
Paper Out Sensor
Transport Ticket Taken Sensor
