Specifications and Requirements
Page 18 43-06955 - Rev Q
Note: The standard USB interface does not have enough power to run the
printer. It is not possible to power the printer with the USB cable alone.
Power Input Connector Interface
The power input connector for the Epic 430
TM
printer uses a Molex 4-pin
interface, with pin functions are as shown.

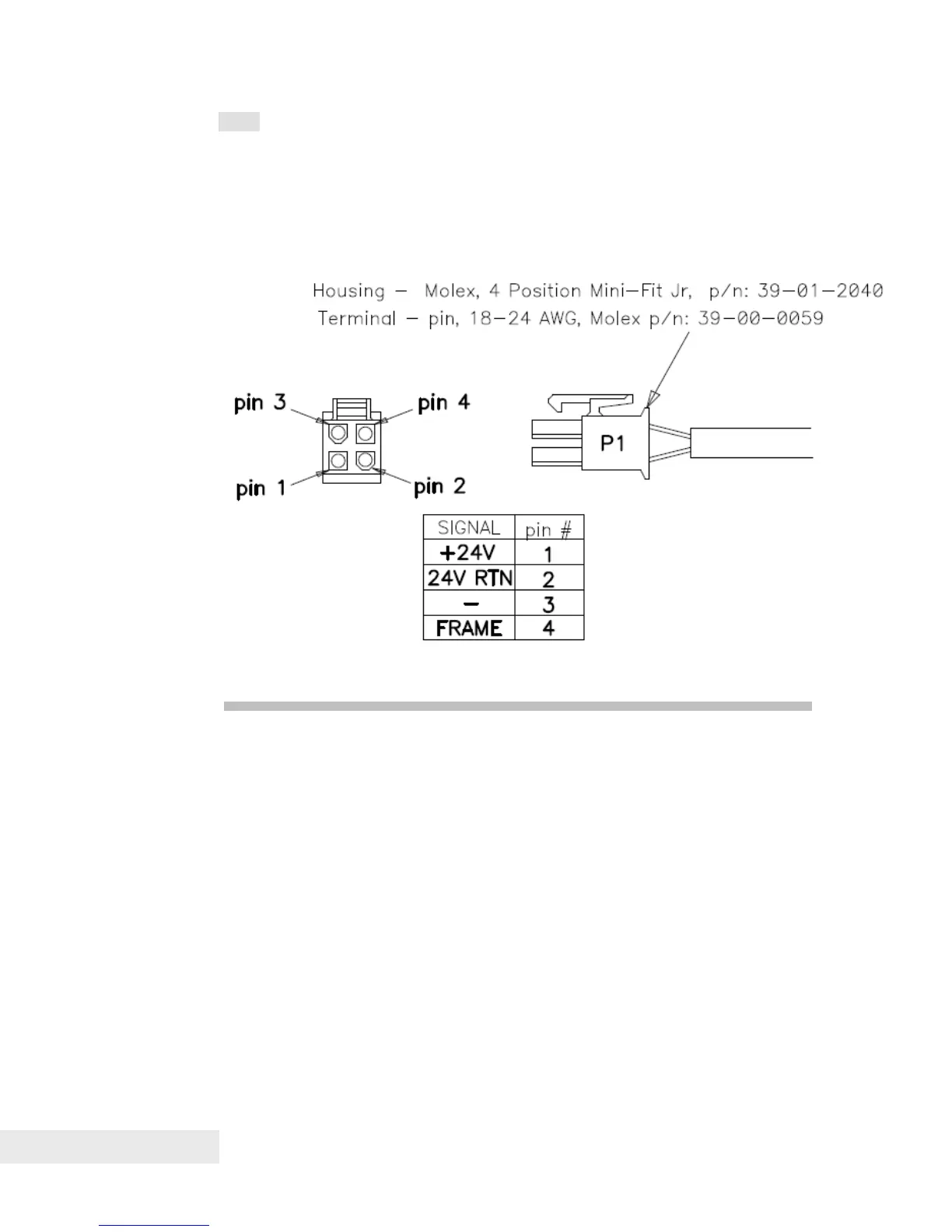

Figure 4. Pin Functions for Power Input Connector.
