Assembly and Disassembly
43-06955 - Rev Q Page 59
Step 2. Connect Bezel Assembly (optional)

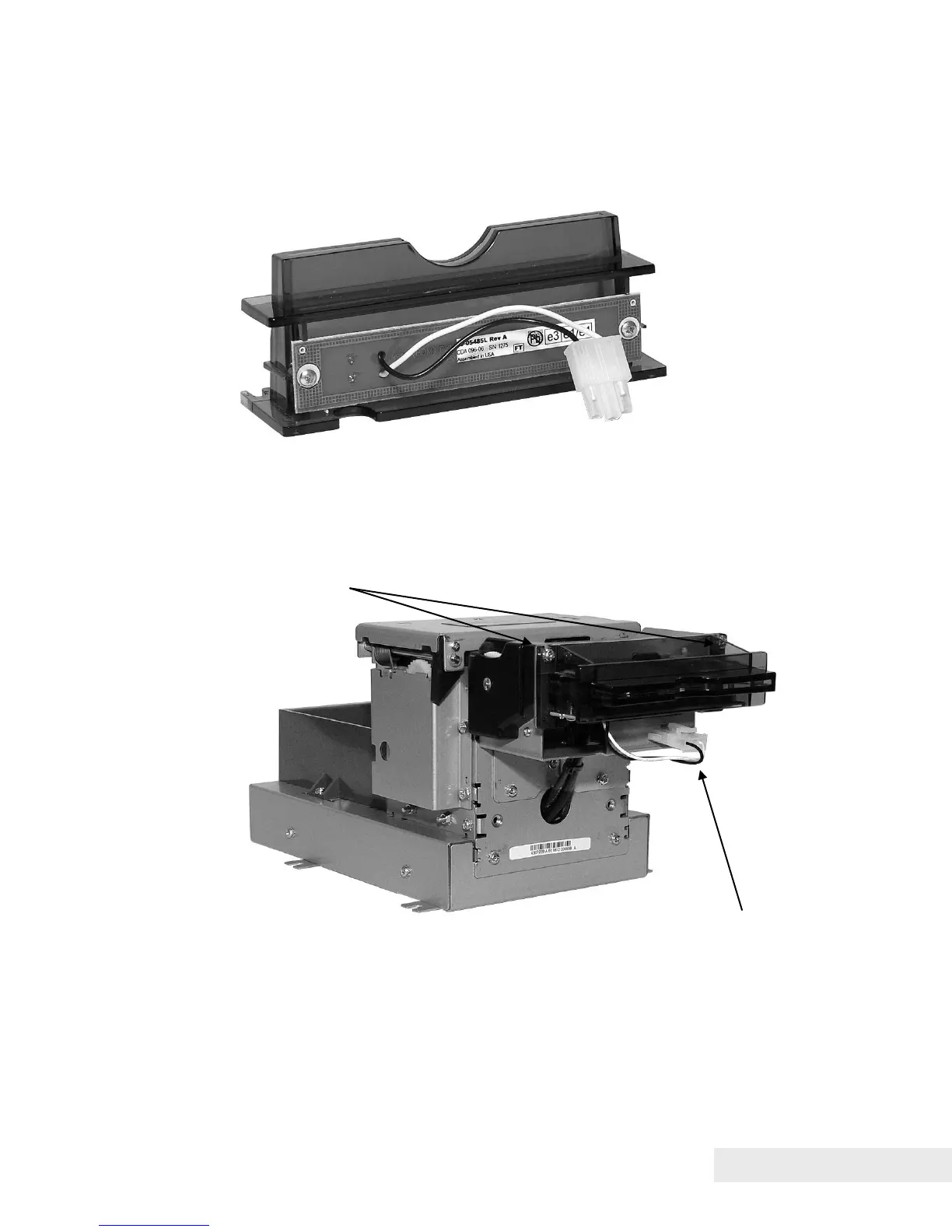

Figure 23. Bezel Assembly and Electrical Harness
Figure 24. Bezel Assembly Attached to Transport Assembly
• Attach the optional Bezel Assembly to the front of the Transport Assembly
using two M3 Sems screws as shown, and then connect its electrical
harness to the Lamp Board connector on the front of the Transport
Assembly.
