Page 38 43-06955 - Rev Q
Remote Base Cover
The Epic 430
TM
printer can optionally be configured for the printer mechanism
to be mounted remotely from the electronics base. In such a case, a remote
base cover is attached to the base of the printer mechanism. The diagram
shows mounting holes and dimensions for this base cover, while the
subsequent image shows this base cover attached to the printer mechanism.
Top: 2x M4x 0.7 screws.
2x Ф.200" thru holes.
3.936
.718 2.500
.548
2.000
1.390
-TYP.390
-4PL
Screw Holes
.200
3.096
M4 Mounting PEM's-4PL

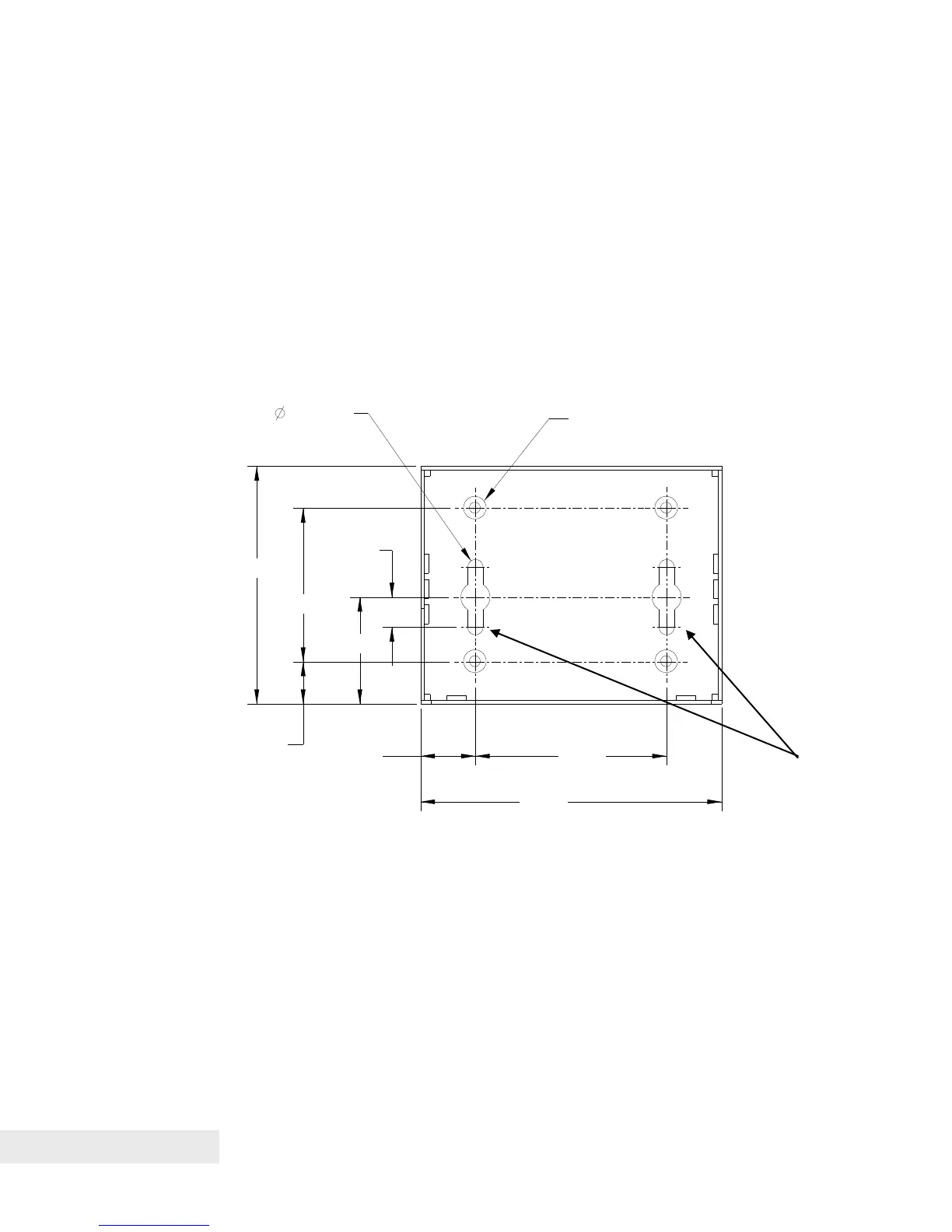

Figure 8. Optional Remote Base Cover
