TransAct Epic 430 - Communications Interface

43-06955 - Rev Q Page 37
Mounting Requirements
Electronics Base Assembly to Final Product
The following shows dimensions and locations for mounting a standard Epic
430
TM
printer, with attachment points shown on the Electronic Base Assembly.
Bottom: 4x M4x 0.7 screws.
4x Ф.176" thru holes.
.232
5.464
.664
4.500
7.827
-4PL.176

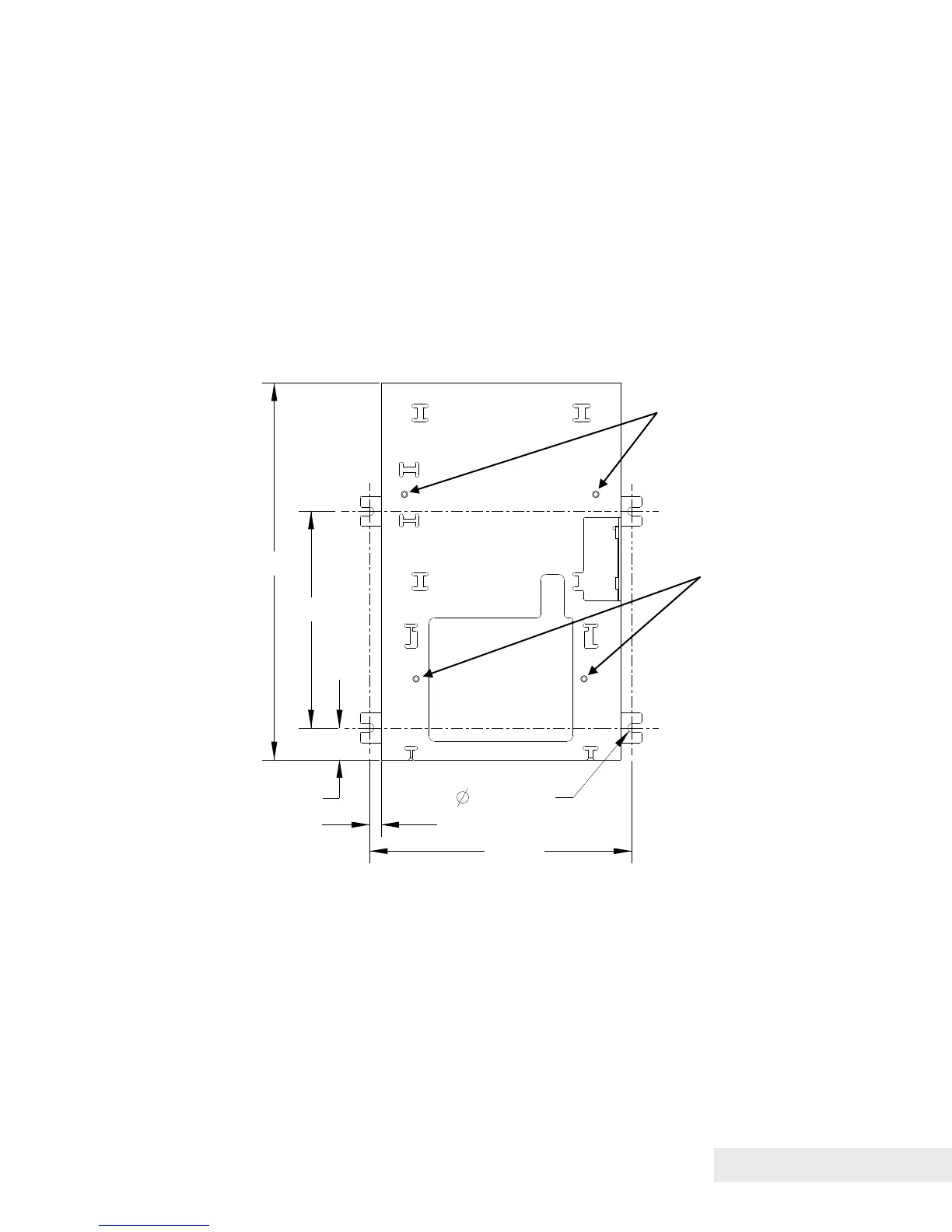

Figure 7. Electronics Base Assembly to Final Product
Bucket mounting
holes
Cover plate
holes
