Enkapsis & EnerSure Platform Installation Guide Rev07.2
The card should be set to an address between 1 and 30. Page 17 of this installation
guide contains a matrix to indicate the address selection and the relation to the
circuit numbers.

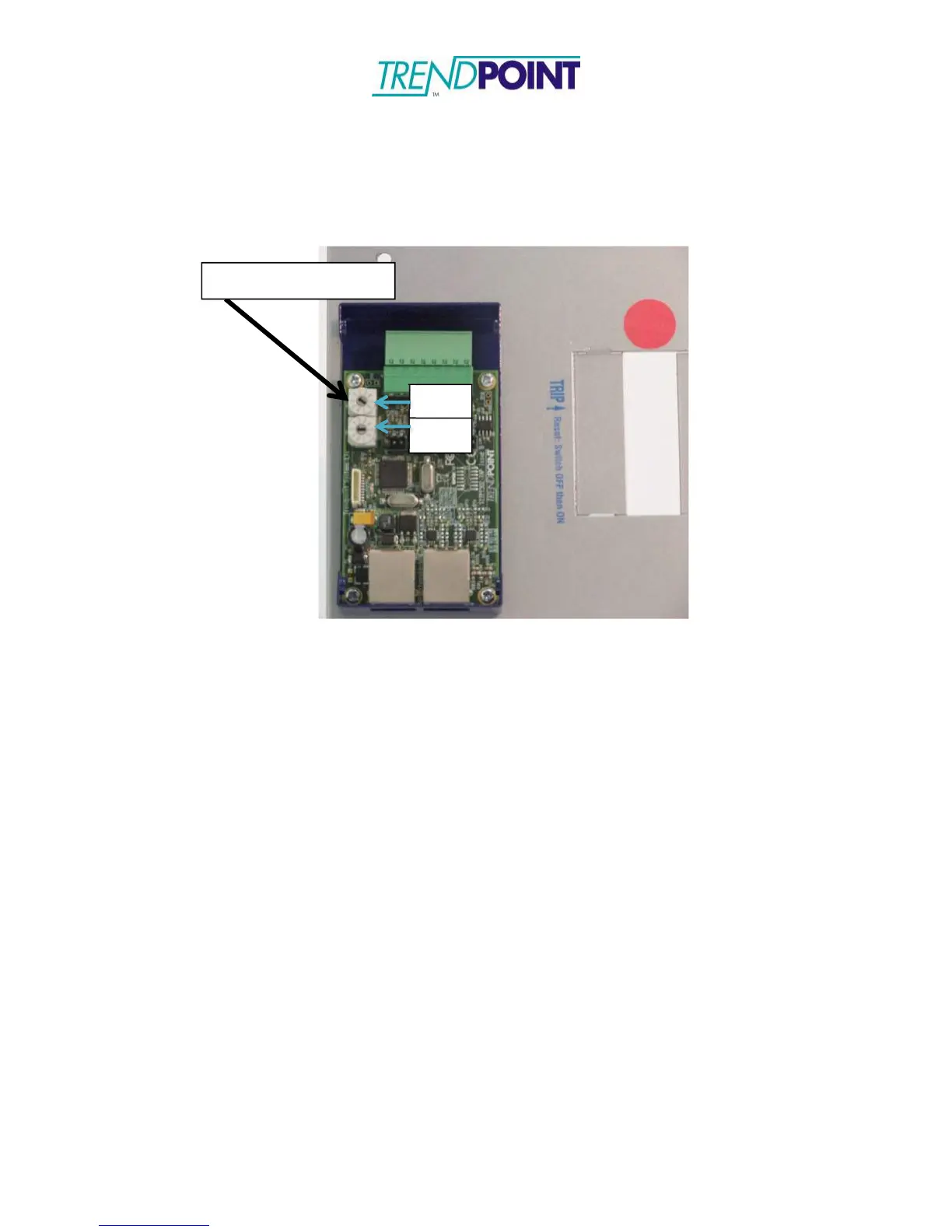

Figure 25: Bus Tap Card mounted on the Tap Box with CT Wires
Connected
6.) Place the cover on the Bus Tap Card and mount the cover panel back onto the tap
box if it was removed.
7.) The Bus Tap Cards are connected via a straight-though Ethernet cable. The
system uses all 8 wires on the Ethernet cable.
