Triax TDX User Manual

TDX Headend System Main Unit
Black Edition
EN
12

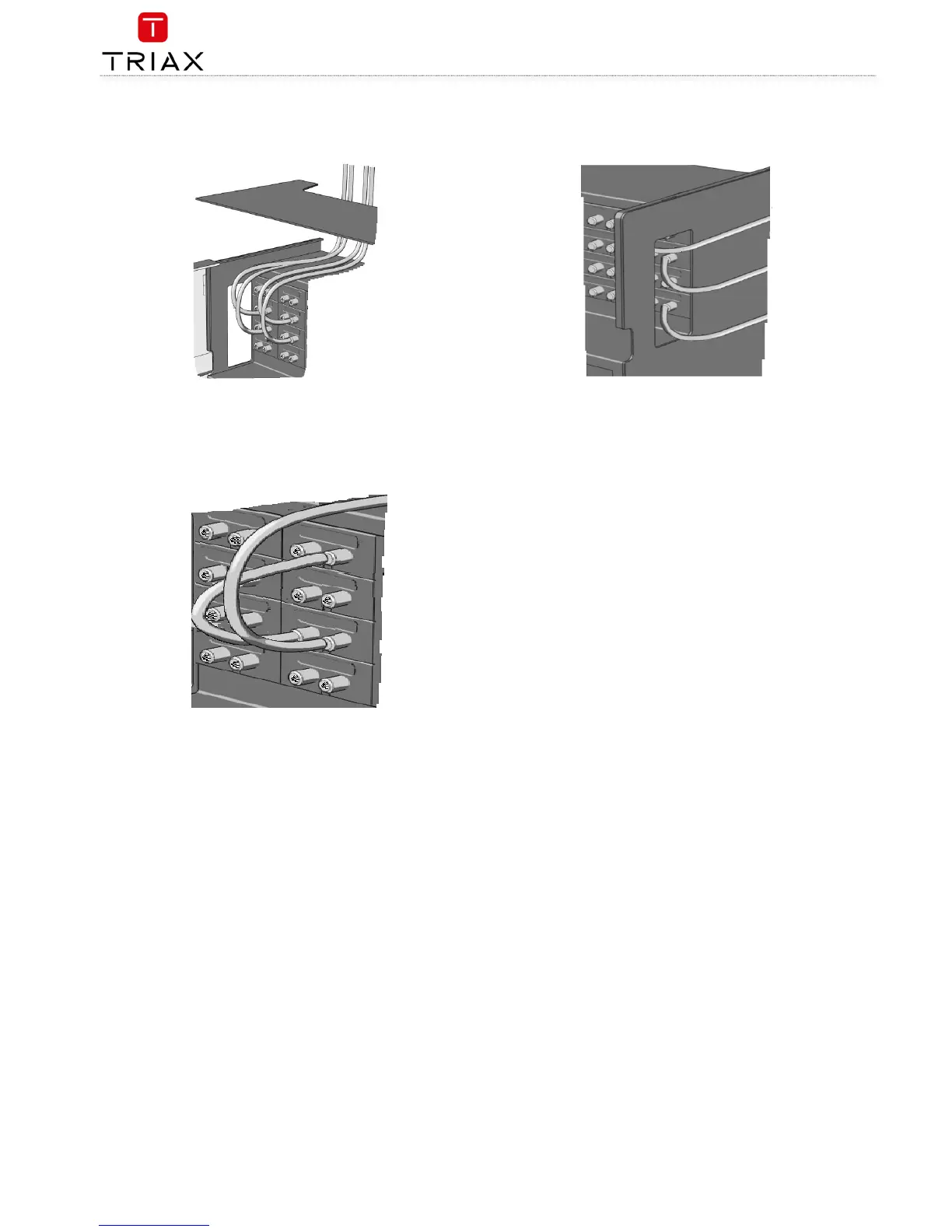

Attaching cables
Signal cables can be attached when all input modules have been installed.
1. Route the cables either through the cable openings on the top or on the sides of the headend.
2. Attach the signal cables to the ‘IN’ connector on the input module.
Note:
Ensure that enough cable is available for relocating input modules to alternate input slots at a later date.
Looping cables
DVB-S/S2 signals can be looped between input modules:
1. Attach the signal cable to the IN port on one DVB-S/S2 input
module.
2. Attach a loop cable to the OUT port on the same DVB-S/S2
input module.
Attach the other end of the loop cable to the IN port on another DVB-
S/S2 input module.*
Removing input modules
Input modules are removed from the headend by:
1. Remove the signal cable from the module.
2. Prize the module out of the headend with a flathead
screwdriver.
3. Pull the module out of the headend.
Note:
Modules can be removed while the headend is in operation.
Moving input modules
1. Prize the module out of the headend with a flathead
screwdriver.
2. Pull the module out of the headend.
3. Insert the module in a new input slot.
Note:
Modules can be moved while the headend is in operation.
