Triax TDX User Manual

TDX Headend System Main Unit
Black Edition
21
EN
IP
settings
It may be necessary to specify specific IP addresses for the
headend to avoid network IP address conflicts.
Note:
Headend IP addresses can be reset to factory default
settings if required. This is done via the ID switch located on
the headend unit(s).
1. Press the
Admin
button at the top right-hand
corner of the System window.
2. Expand the
IP settings
area.
3. Specify the headend’s IP address, subnet mask
and default gateway in the corresponding fields.
4. Press the
UPDATE
button, down below.

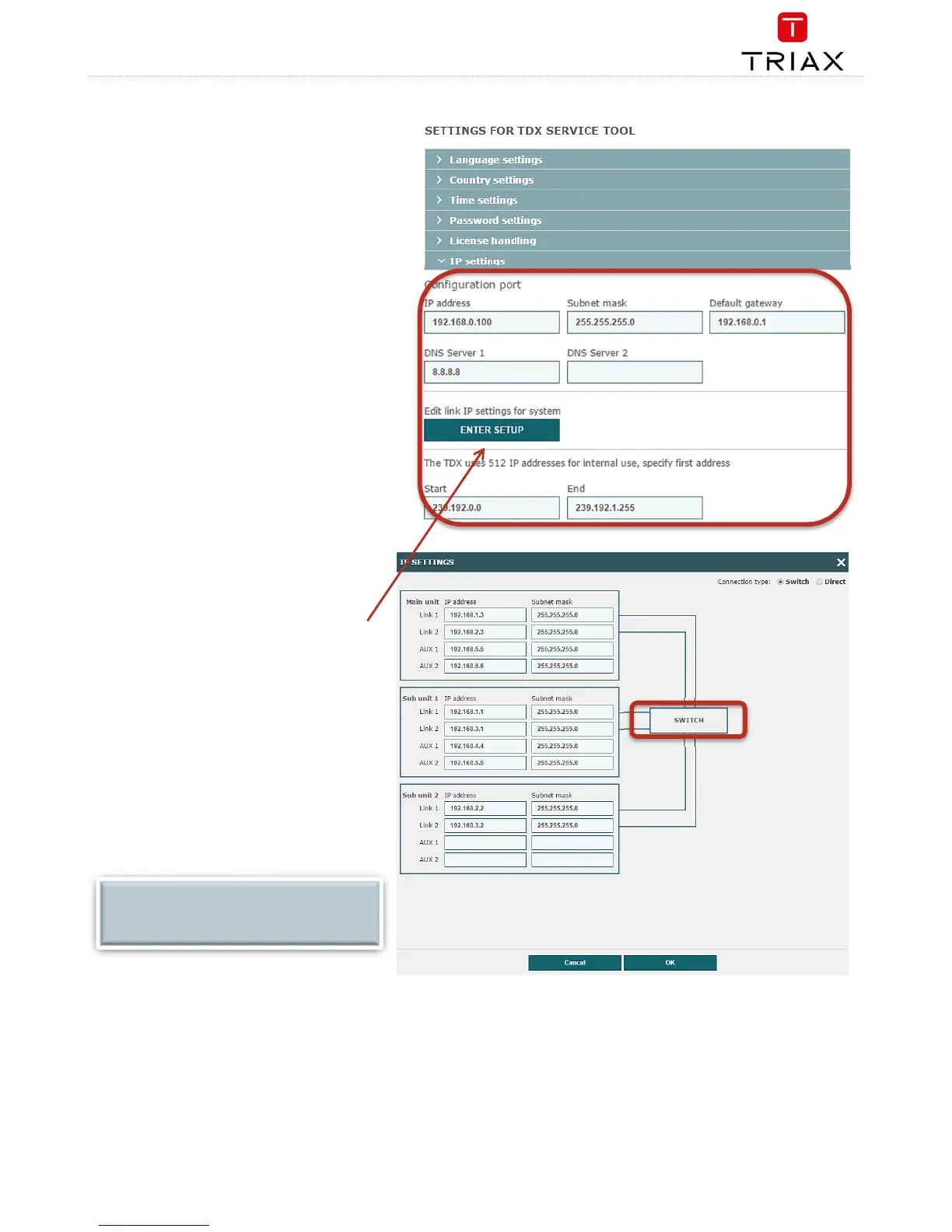

IP settings
-
continued
This step is only relevant where Main and sub units are
connected to the network via a Gigabit network switch.
1.
Press the
ENTER SETUP
button
The
IP Settings
window is used to specify unique IP
addresses and subnet masks used by the Link 1 and
Link 2 sockets on the main and sub units. This provides
additional functionality to avoid IP address conflicts.
1. Select the
Switch
radio button.
2. Specify unique IP addresses and subnet
mask details for the main and subunits in the
corresponding fields.
3. Press the
UPDATE
button, down below.
NOTE:
The
AUX 1
,
AUX 2
and associated
IP Address
and
Subnet mask
fields are used in connection with the
IP output module
.
