Triax TDX - Inserting input modules

TDX Headend System Main Unit
Black Edition
EN
16

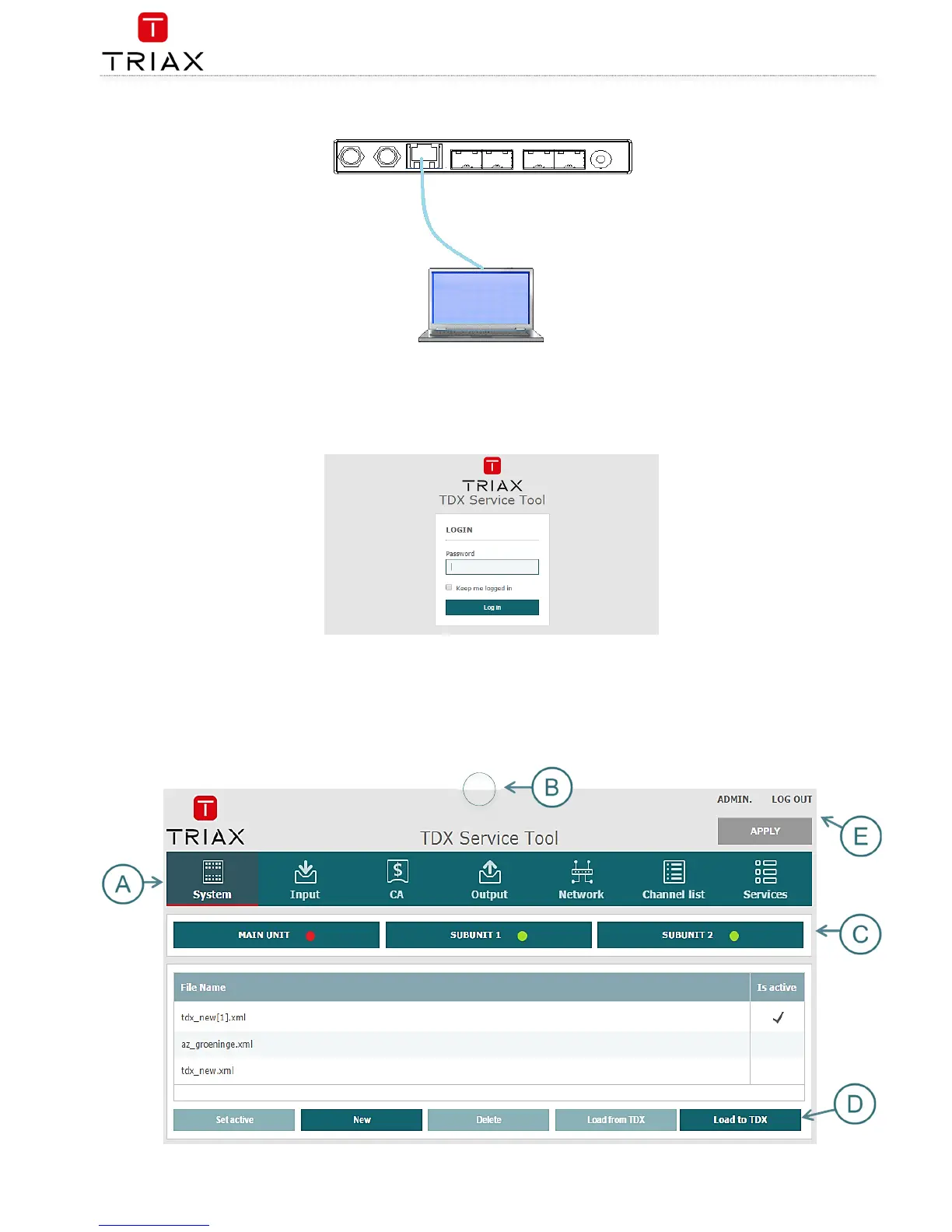

Physical connection to headend
Connect a Cat5e shielded cable or better between the computer’s network port and the configuration port on the headend.
Starting service tool
1. Open a web browser window.
2. Enter
‘http://192.168.0.
100’ in the web address field.
3. Press
Enter
.
4. Enter the password.
5. Press the
Log in
button.
Note:
Password = ‘
triax1234’
when the service tool is opened on each headend for the first time.
The
Keep me logged in
checkbox overrides the system’s automatic time out function, which is activated after 20 minute’s inactivity.
Overview
