Triax TDX User Manual

TDX Headend System Main Unit
Black Edition
27
EN
System information
Duplicated PID‘s
Selecting IP services for output may result in a selection
of services from an MPTS stream that uses the same PID
for two or more services.
It is not possible to output services with identical PIDs.
If you have selected services with identical PIDs, the
System icon of the headend unit that handles the output
of the services with identical PIDs turns red.
 Click the affected unit to open the
System
information for unit
window.

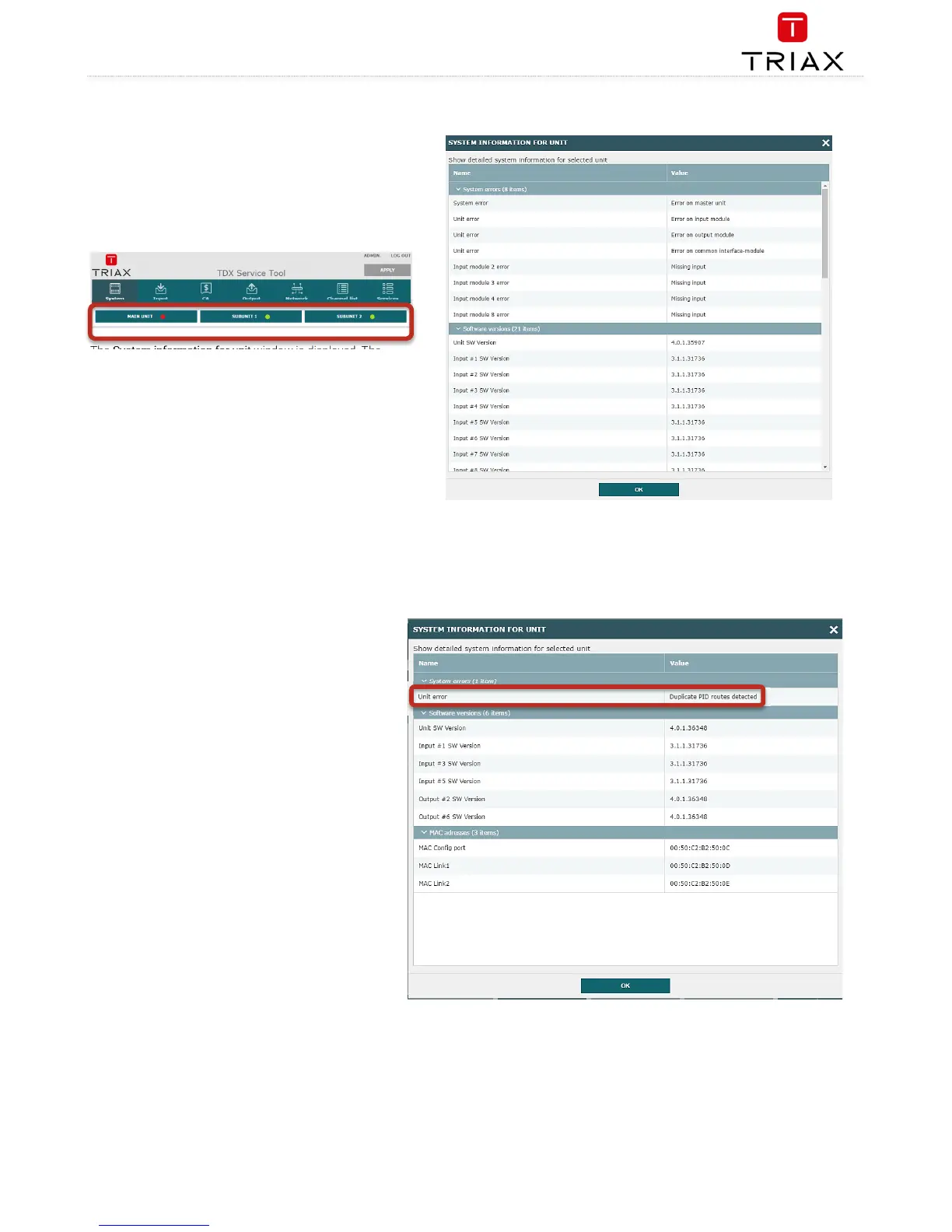

The
System information for unit window
lists the output
module(s) and channel(s) which attempt to output
services with identical PIDs.
To solve the problem you have to open the configuration
window of the output module(s) listed in the
System
information for unit
window, and deselect the selected IP
services one by one while checking the
System
information for unit
window until the message disappears
from the window.
Viewing
system information
Detailed information is available on headend units:
1. Select the
System
tab.
2. Select the main unit or one of the subunits in the
System information list
area.
The
System information for unit
window is displayed. The
window contains information relating to:
Any headend system errors
Name and associated software version of input and output
modules
Note that the software versions installed on all headends,
including each input/output module must be identical.
Update the software for the entire headend installation
(including input/output modules) if this is not the case.
 MAC addresses
 Current/minimum/maximum temperatures
 Power supply
