Triax TDX User Manual

TDX Headend System Main Unit
Black Edition
31
EN
Creating
-
continued
Important:
If the IP input uses MPTS streams, then each stream can
contain one or more services. An MPTS stream may use
the same PID (Package ID) for two or more of the
services that it contains.
However, the headend system cannot output services
with the same PID. To discover services with the same
PID is NOT possible until you have selected the services
with identical PIDs in order to output them using an
output module or a Link socket.
If you attempt to output services with identical PIDs:
 the System Status LED turns red on the unit
that tries to output the IP services,
 the System icon of the affected headend unit
turns red on the System tab in the Service Tool,
 the System Status LED and System icon turn
red on the main unit in a multi-unit installation.
 See “Duplicated PIDs” for further information.
7. View the
Status information
area to ensure that
IP data is being sourced through the Link
socket.
8. Press the
Submit
button.
The selected service is now available in the headend
service pool.
9. Press the Apply button to save the new
settings in the configuration.

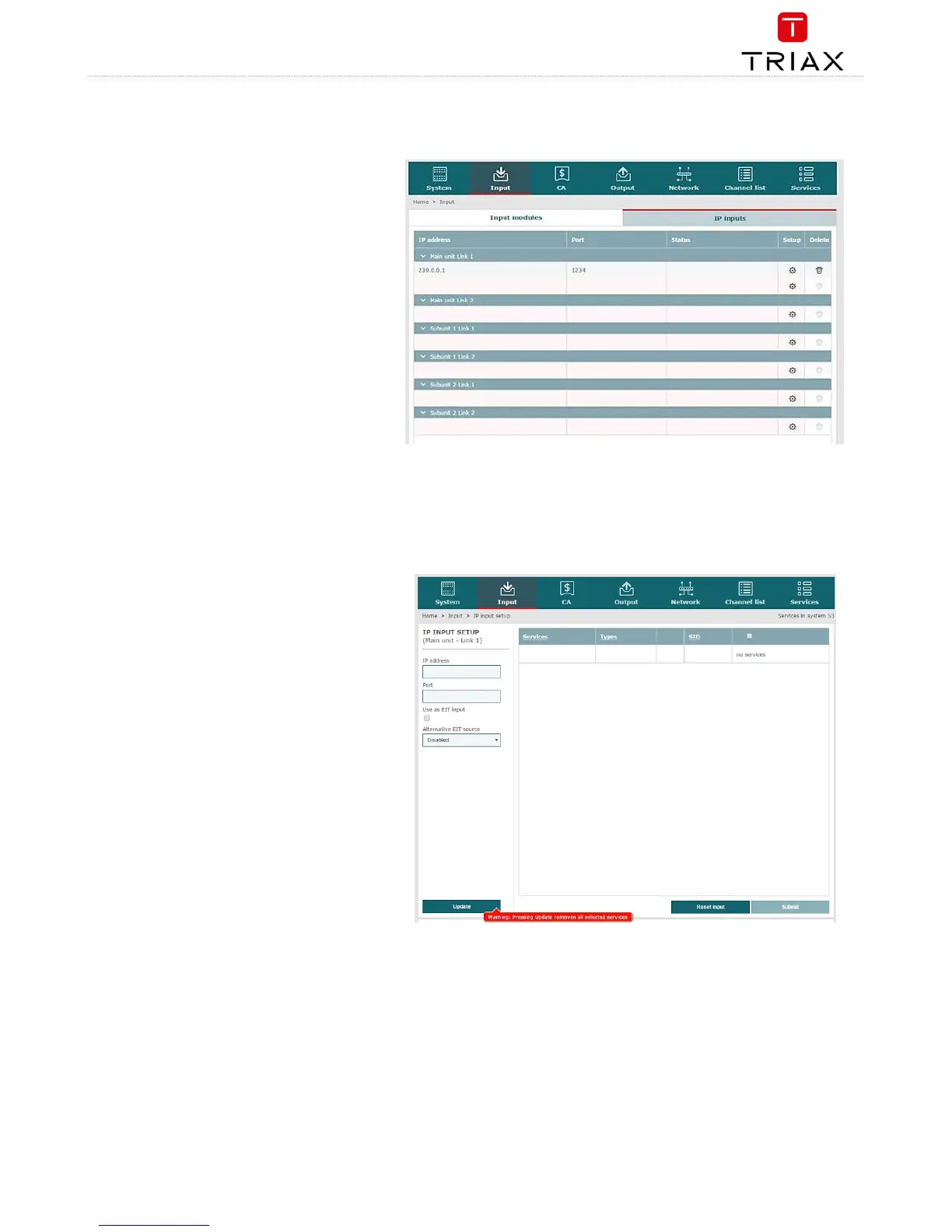

Specifying EIT/EPG source
One input on each link per headend can be configured to
carry Event Information Table (EIT) data.
1. Specify the desired IP address and associated
IP port number in the corresponding fields.
2. Check the
Use as EIT input
checkbox.
3. Press the
Update
button.
4. Check the
Selected services
checkbox for one
or more services to select the service(s) you
want to use
5. View the
Status information
area to ensure that
IP data is being sourced through the Link
socket.
6. Press the
Submit
button.
Specifying Alternative EIT/EPG source
