Triax TDX User Manual

TDX Headend System Main Unit
Black Edition
EN
8
Multi Headend installation
Up to three headends can be combined to further increase the number of services provided.
The headends are physically installed as per installation of single headend, i.e. by using the supplied brackets described above.
The headends can be combined in either “direct connection” or “switch connection”
RF output
Connect each headend unit to a combiner using RF cables from the RF output socket to the combiner.
Power
1. Connect each headend unit to an approved ‘earth’ connection point.
2. Provide power to each headend unit with the supplied power lead.

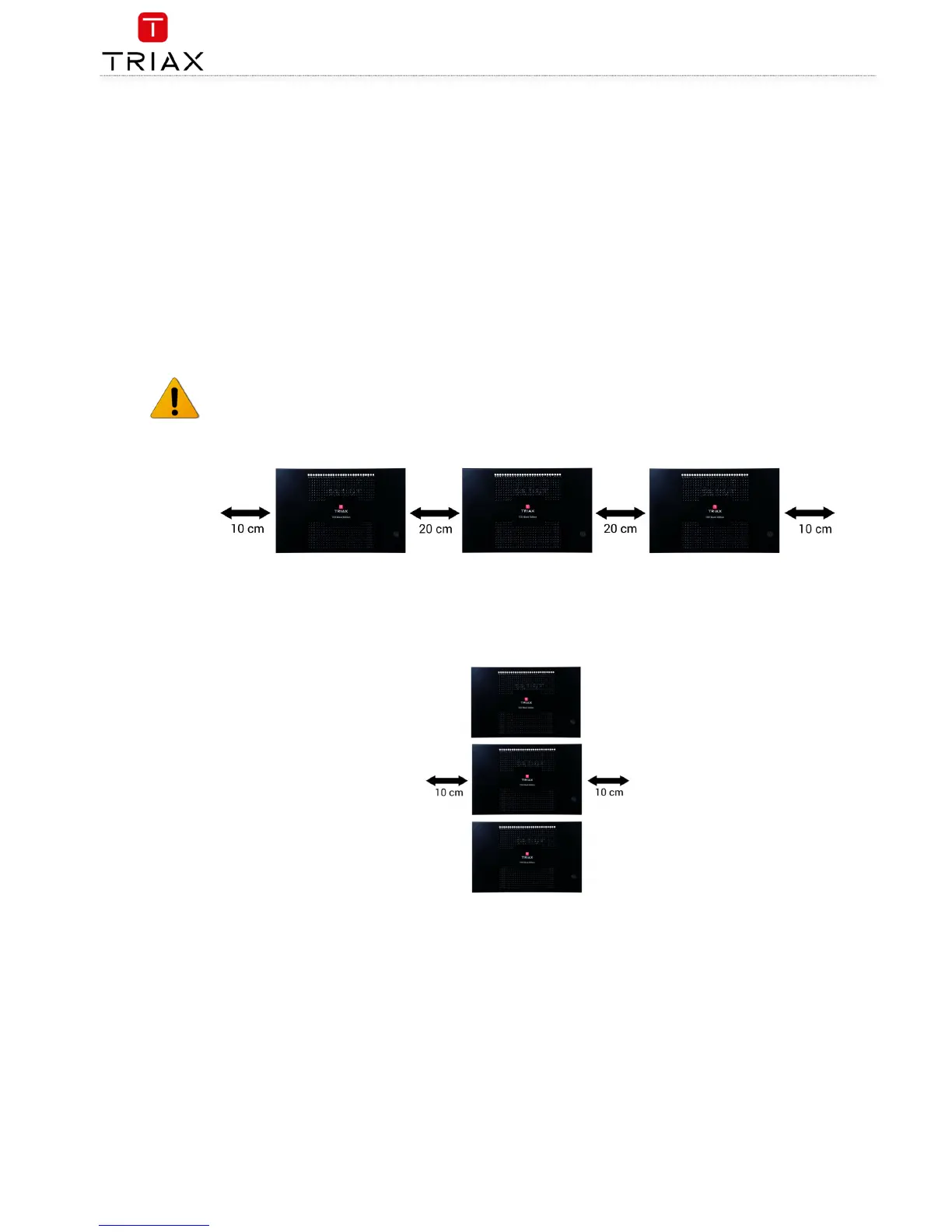

Ventilation requirements
Ensure that the following ventilation requirements are met:
1. Horizontal
 Min. 20cm ventilation space must be available between headends.
 Min. 10cm ventilation space must be available outside the end headends.
 Min. 10cm ventilation space must be available from the front of each headend.
2. Vertical
 10cm ventilation space must be available on both sides of each headend.
 10cm ventilation space must be available from the front of each headend.
