Triax TDX User Manual

TDX Headend System Main Unit
Black Edition
7
EN
Single headend installation

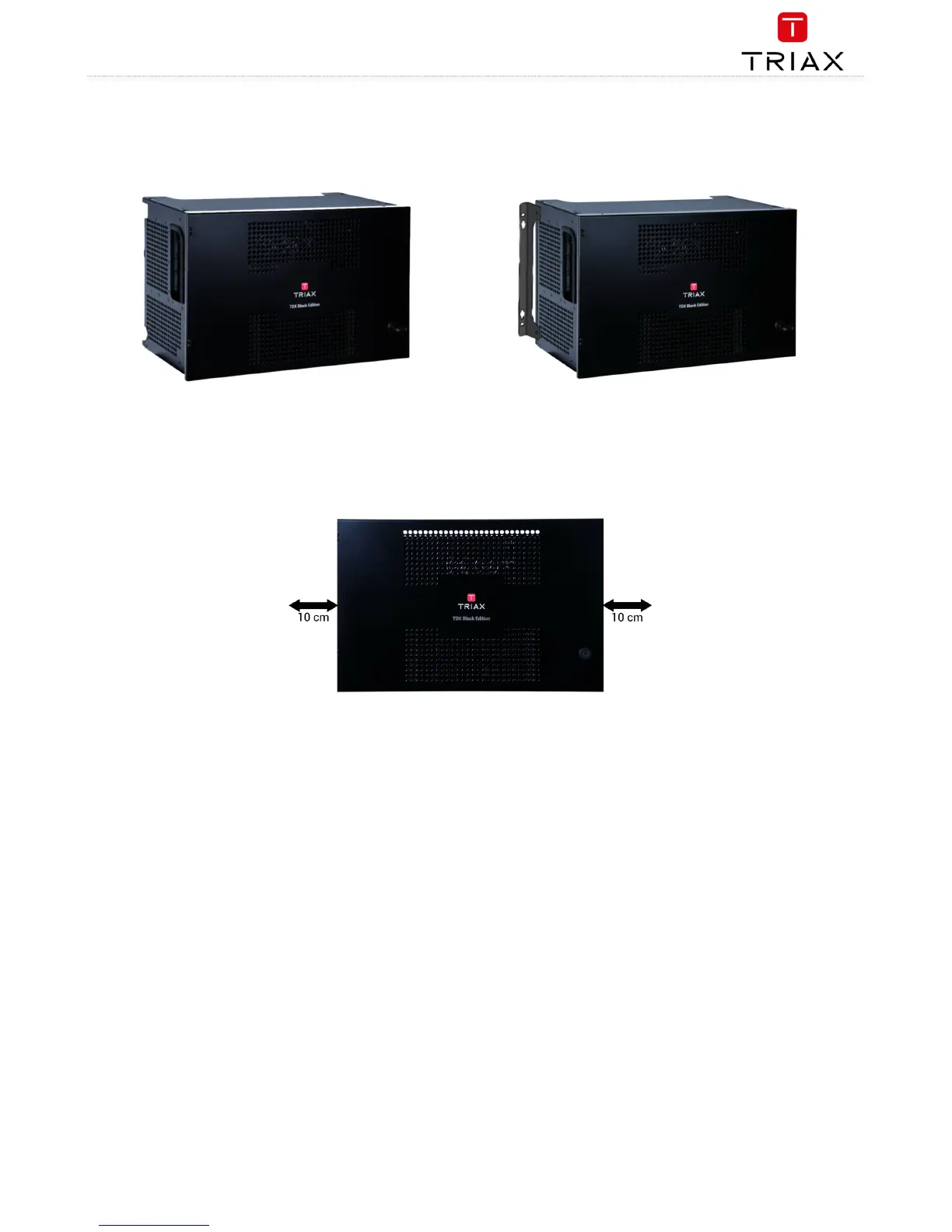

Mounting
The headend can be mounted either on a system rack or directly onto a wall.
Rack installation Wall installation
1. Attach the mounting brackets to the headend with the supplied screws.
Rack: At the front of a headend
Wall: At the rear of a headend
2. Attach the headend to the wall or onto a system rack
Ventilation requirements
1. Ensure that min. 10cm ventilation space is available on both sides and the front of the headend
2. Insert the key into the headend
3. Open the door
4. Lift the door off its hinges (optional)
5. Remove the top cover (optional)
Power / Earth / ID switch
1. Connect an earth cable to Earth terminal
2. Attach the other end of the earth cable to an approved earth connection point
3. Insert the supplied cable into the Power Input port
4. Confirm that the ID switch is set to “0”

Triax TDX Specifications

General

Brand	Triax
Model	TDX
Category	Control Unit
Language	English
