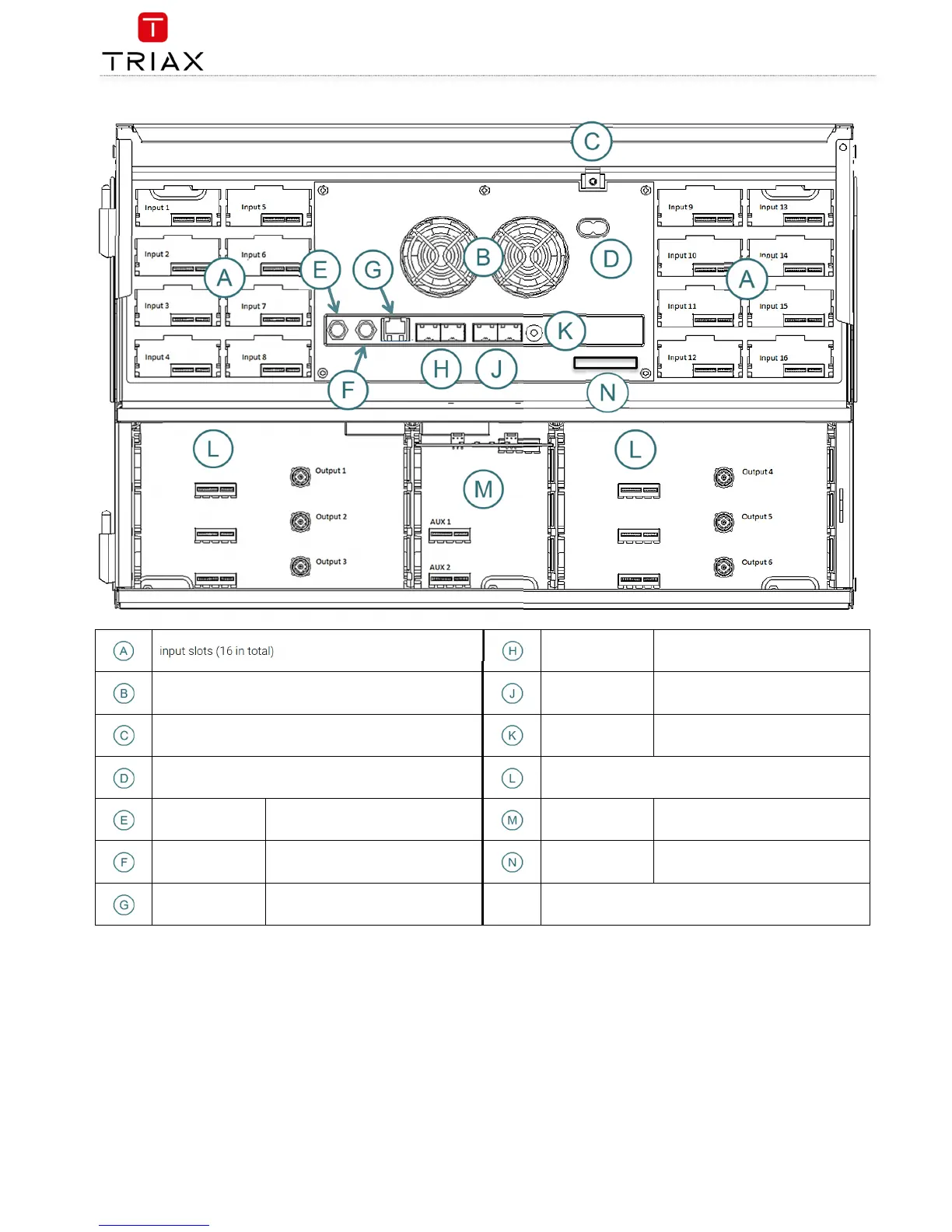

TDX Headend System Main Unit
Black Edition
EN
6
input slots (16 in total)
AUX 1 & 2
Distributes services from IP output
modules
Extractor fans
Link 1 & 2
Connects the main unit with subunits 1
and 2. Can also be used in conjunction
with IP input and output
Earth terminal
ID switch
Switch for setting the ID of the main
unit and the two subunits
Output slots (6 in total )
RF output
Distributes the RF channels form the
output modules using an F-connector
Slot 1 & 2 for
auxiliary boards
Auxiliary boards are used in connection
with IP output modules
Test point -20dB RF test point of output (-20dB)
Secure Digital (SD
card)
Memory card for storage of the system
configuration (behind panel)
Configuration port
Ehternet configuration port for setting
up the headend unit
