4.2.2.1 Mono View

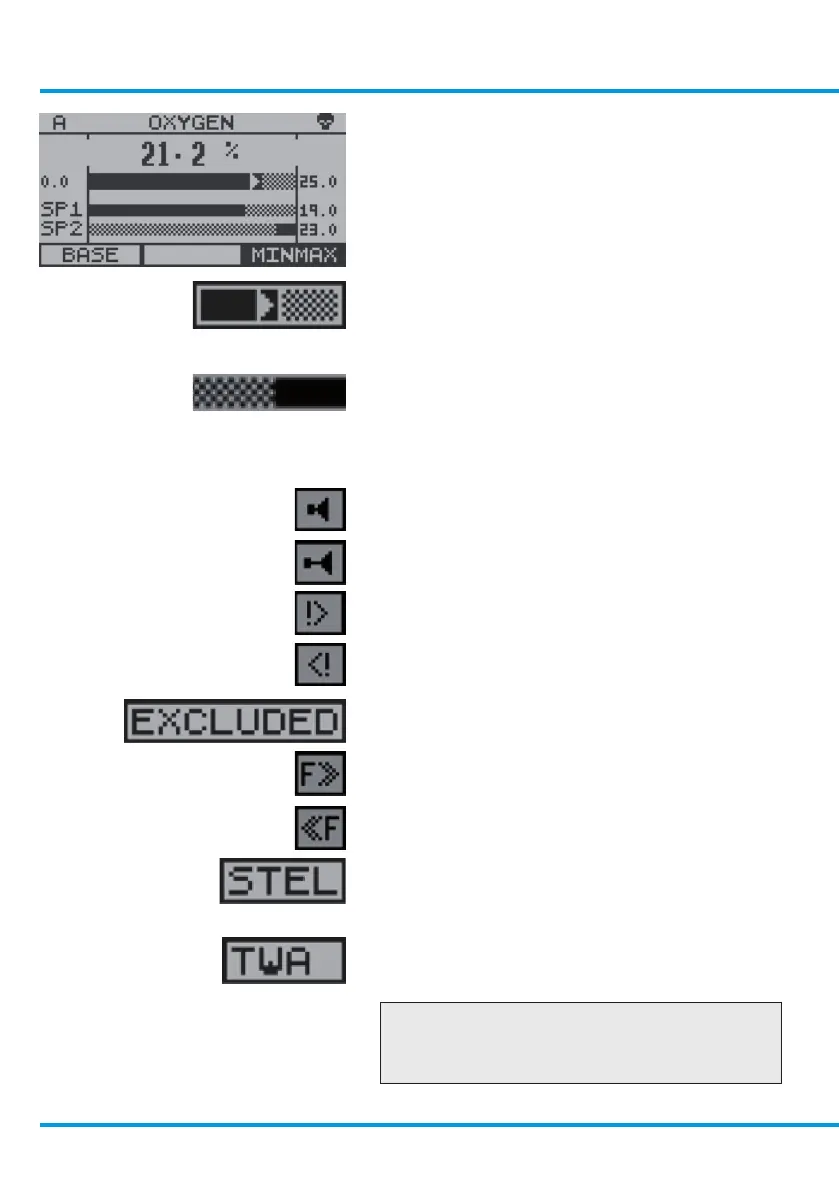

This displays more detailed information about
individual channels.
Channel Information
This is a bar graph of the input signal with
lower and upper scale values on the left and
right. The arrow indicates increasing/stable/
decreasing signal tendency.
Setpoint 1 (SP1) General alarm) and
Setpoint 2 (SP2) (High alarm) marker with a
numerical value on the right side.
Alarm Messages
• Setpoint 1 (SP1) (General alarm) or
Setpoint 2 (SP2) (High alarm) On
• Setpoint 2 (SP2) (High alarm) On
• The input signal is under range
• The input signal is over range
• A location is temporarily excluded
• The input signal is low fault
• The input signal is high fault
• The STEL alarm in the eModule is
activated
• The TWA alarm in the eModule is
activated
Checkpoint
Scroll up or down to view the Mono View
information on an adjacent input channel.
