Removal
Cover frame R is provided to access the battery and
rear disc brake master cylinder. This cover can be
opened in the following manner:
1. Remove the seats as explained in page No. 53.
2. Remove the mounting screws (1), (2), (3) and take
out the cover frame.
Re-install
1. Locate the lugs of the cover frame at the holes
provided on the frame and install the mounting
screws (1), (2) and (3).
Make sure that the cover frame is locked securely in
position after installation.
Caution
ADJUSTMENTS
CLUTCH LEVER - ADJUSTMENT

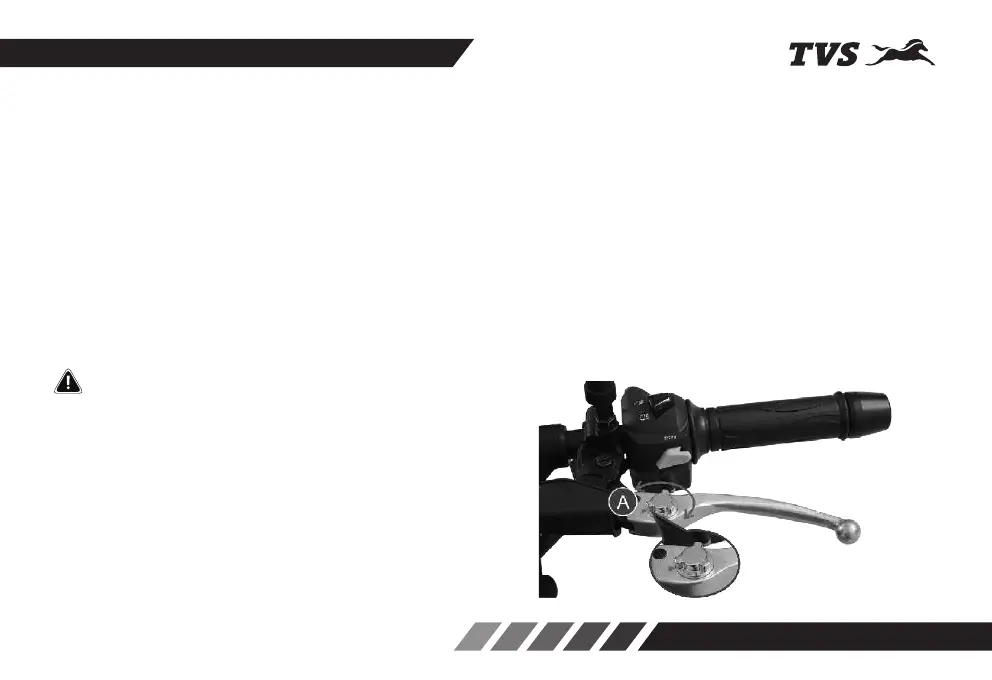

TVS Apache RTR 200 Fi 4V comes with an adjustable
clutch lever. There are three positions provided for
you to adjust the lever to suit your palm size. The lever
can be adjusted by adjusting the "position adjuster" (A)
provided in the knob itself. Position-1 is the closest to
handle bar grip and Position-3 is the farthest.
To adjust the lever position, push the lever forward
and rotate the "position adjuster" to any of the three
positions by aligning the 'arrow mark' on the lever to
the number provided on the adjuster.
