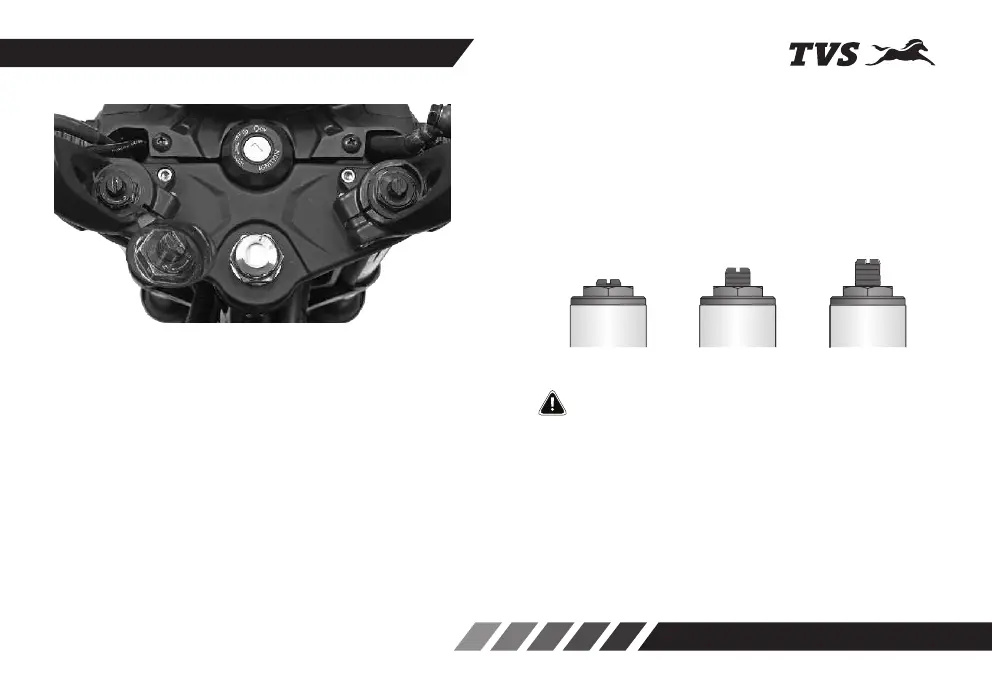

FRONT SUSPENSION - ADJUSTMENT
TVS Apache RTR 200 Fi 4V front suspension level can
be adjusted as per your convenience. Adjust the
suspension level as per the load or road conditions.
To adjust the suspension level rotate the knob (A)
either towards 'H' (clockwise) or towards 'S' (anti-
clockwise) position. Turning the knob towards 'H'
increases the pre-load which makes suspension
harder and turning the knob towards 'S' decreases the
pre-load which makes suspension softer. This
adjustment can be made even using a coin.
There are grooves provided in the adjuster for aligning
it with top surface of the fork bolts while adjusting the
suspension level. By default the third groove from the
top is aligned with the surface.
1st groove -
hard
suspension
3rd groove -
Standard
position
5th groove -
soft
Suspension
Ensure to keep both left and right adjuster level at the
same position to avoid improper suspension feel.
Ensure not to damage the adjuster groove or the top
surface of the fork bolts.
