6. During re-assembly, engage the drum sprocket
with the wheel along with the drive chain and then
assemble the wheel into swing arm.
7. Re-assemble the other parts in the reverse order
of removal.
REAR WHEEL REMOVAL AND REASSEMBLY
1. Remove the wheel hugger rear.

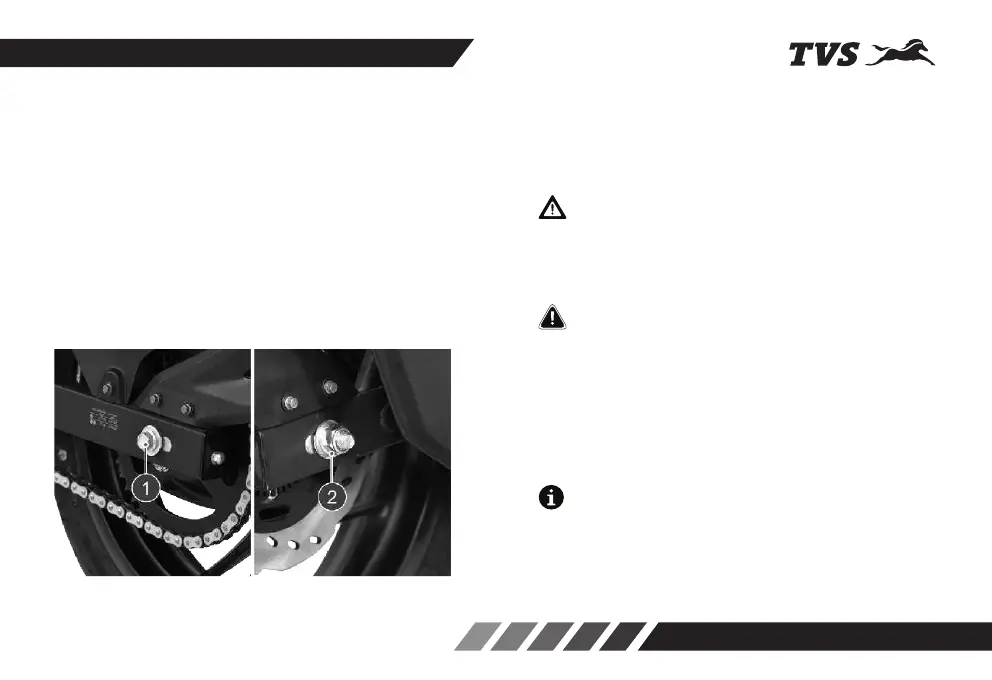

2. Remove the axle nut (1) and along with the
washer and partially pull out the axle (2).
3. Take out the caliper assembly along with the
wheel speed sensor* by dislocating it from the
disc and the swing arm lug.
4. Carefully hang the caliper assembly in the swing
arm itself. Take out the spacer and pull out the axle
fully.
5. Remove the wheel assembly by gently tapping it
along with the disc and toner ring*.
While assembling the caliper assembly ensure that
the slot provided in the caliper is properly located to
the lug provided in the swing arm assembly.
Always make sure that whenever the wheel is
removed, axle nut is properly re-tightened to the
specified torque and chain play is re checked and
adjusted if required.
Caution
MAINTENANCE
* Not applicable of non ABS type rear brake system
Note
During removal of rear wheel axle hold the drum
sprocket assembly with the hand as it may fall.
Carefully hang the drum sprocket along with chain in
the swing arm itself.
Keep the toner ring upwards whenever the wheel is
removed in order to avoid damages to the toner ring.
Damaged toner ring affects ABS function*.
Warning
83
