FRONT WHEEL REMOVAL AND REASSEMBLY

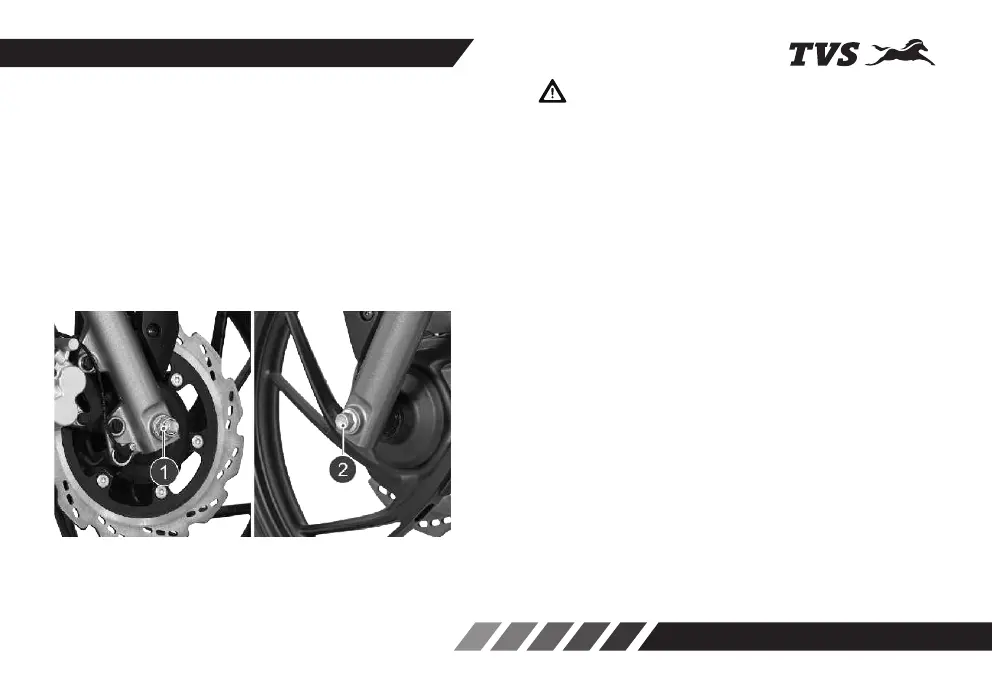

1. Remove the axle nut (1) along with a washer.
2. Pull out the axle (2) along with a washer and
remove a spacer from both the sides of the wheel.
3. Place a support below the frame to prevent
vehicle from falling and lift the vehicle up.
4. Carefully dislocate the disc from the caliper
assembly and slide the wheel out.
5. Reverse the procedure for reassembling.
MAINTENANCE
Ensure proper seating of disc in the caliper assembly
while reassembling the wheel.
Ensure to re-fix the right spacers at both the sides of
the wheel.
Keep the toner ring upwards whenever the wheel is
removed in order to avoid damages to the toner ring.
Damaged toner ring affects ABS function.
