2. Check the brake fluid level in the reservoir. It should
be between maximum and minimum level.
3. If the brake fluid level is below minimum or while
applying brake if you feel the brake is more spongy
or ineffective due to air entry, contact TVS Motor
Company Authorised Distributor or Dealers /
Authorised Service Centers for topping-up the
brake fluid, air bleeding and other brake related
inspections.

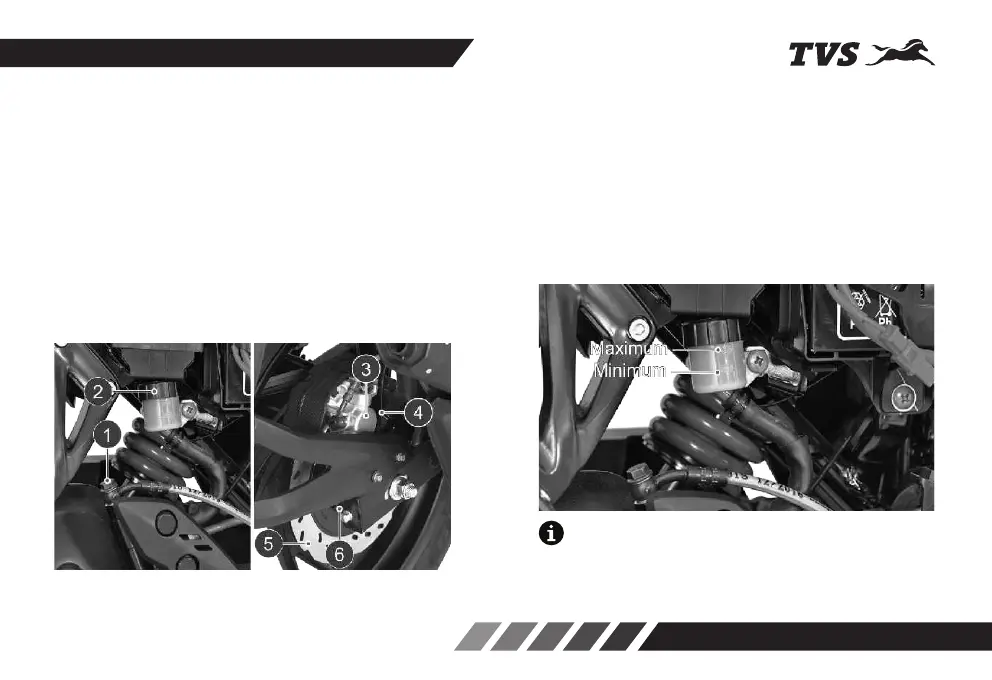

Rear brake
You can observe a master cylinder (1) mounted on the
right side pillion foot rest, a reservoir (2) below the
cover frame R, a caliper assembly (3) fitted on the rear
wheel axle along with wheel speed sensor (4)*, a disc
(5) and toner ring (6)* to the rear wheel. Two high
pressure hoses connecting the master cylinder to
HECU* and HECU* to the caliper (in non ABS version
high pressure hose is connected directly to the caliper
assembly).
1. Remove the cover frame R (refer page No. 55 for
removal procedure).
MAINTENANCE
Not applicable of non ABS type rear brake system
Note
Check the brake fluid level only when the master
cylinder is parallel to the ground.
