2. Brake fluid level always should be above the
'LOWER' mark (B) on the master cylinder when
the master cylinder is parallel to the ground.
3. If the brake fluid level is below the mark or while
applying brake if you feel the brake is more spongy
or ineffective due to air entry, contact TVS Motor
Company Authorised Distributor or Dealers /
Authorised service centers for topping-up the
brake fluid, air bleeding and other brake related
inspections.
BRAKES
Front brake

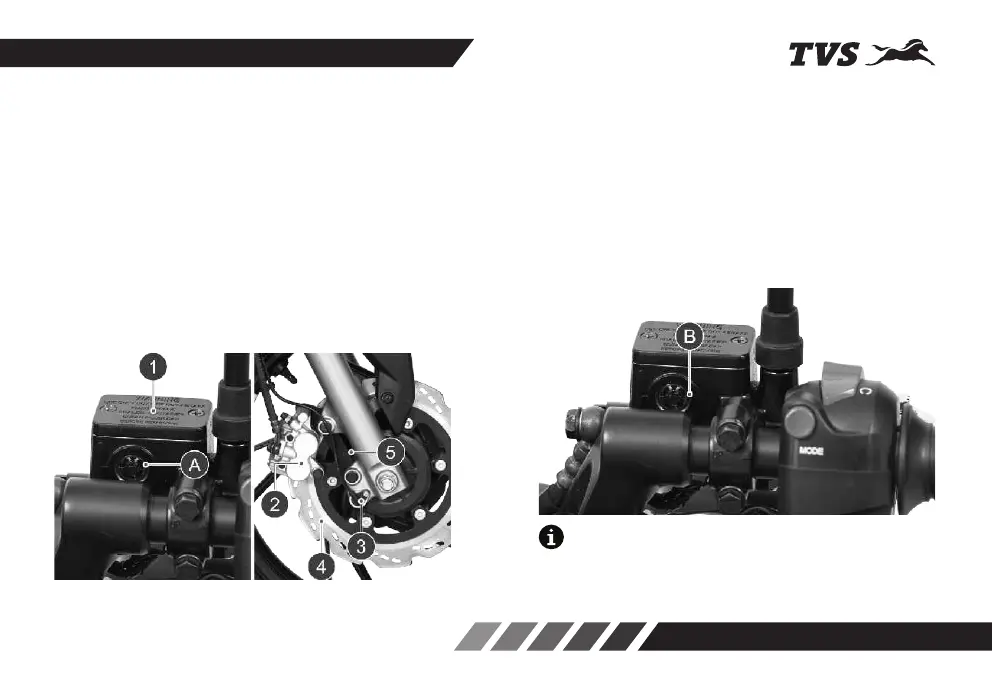

You can observe a master cylinder (1) on the right side
of the handle bar, a caliper assembly (2) fitted to the
fork leg R along with a wheel speed sensor (3), a disc
(4) and the toner ring (5) to the front wheel. Also you
can observe a high pressure hose connecting the
master cylinder to the HECU of ABS system and
another hose connecting HECU to the caliper
assembly.
1. Check the master cylinder brake fluid level
through the view piece glass (A).
MAINTENANCE
Note
Check the brake fluid level only when the master
cylinder is parallel to the ground.
