Tyco AutoPulse Z-10 User Manual

3-17
24V auxiliary power is wired from either resettable, or “on steady” terminals. The combined
rating for any combination of steady or resettable devices must not exceed 750 mA.
This section provides information on wiring steady 24 VDC power. Resettable 24 VDC power is
typically used with four wire smoke detectors. Refer to “Wiring Initiating Device Circuits,”
earlier in this chapter for specific information on wiring resettable 24 VDC power.
Use the + terminal (24 VDC) and the – terminal (0 V) when wiring a device that requires steady
24 VDC power.

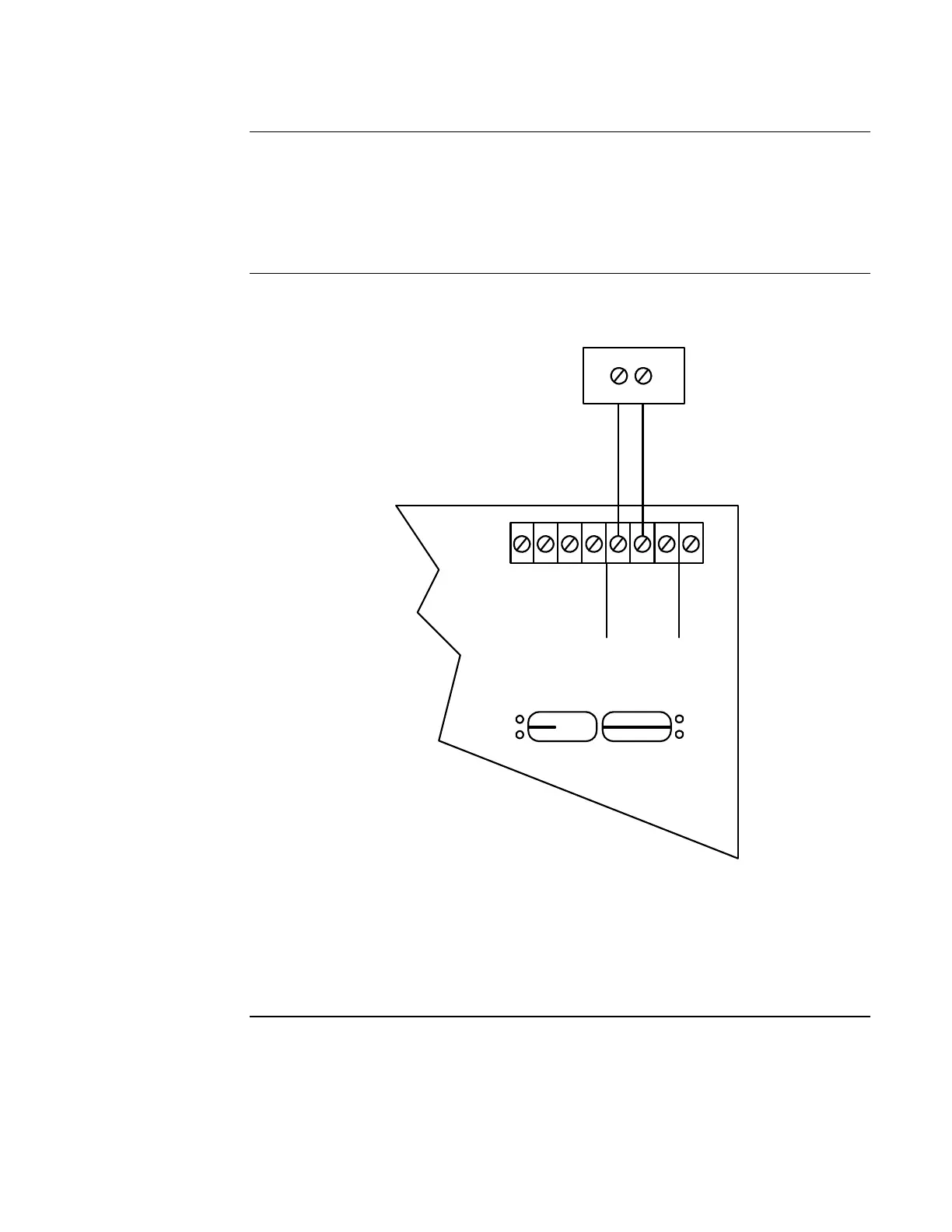

Figure 3-12. Wiring Steady, 24 VDC Aux Power
Note: This circuit is rated Special Application. The output is 19.25 - 27 VDC. The maximum current is 750mA.
+
-
R
-
24V Pwr
2A Max.
for +/-
"R" is Neg.
for 24 V
Reset
Alarm
Trouble
Zone 1
Zone 5 Trouble
Manual Release
+
-
24 VDC Device Requiring
Steady 24 VDC. 750 mA Max.
Wiring 24V Aux Power
General
Wiring Steady, 24
VDC Aux Power
