Overview, Continued

A-10

1. Remove plastic PCB cover.

2. Place Program Switch on the AutoPulse Z-10 in the ON position.

3. Locate the PC within 6 feet of the AutoPulse Z-10 FACP and connect a Part No. 431206

serial cable to a free serial port (typically COM1) on the PC.

4. Connect the other end of the cable to the service port on the AutoPulse Z-10 FACP. The

Service port, labeled P2, is located on the top left of the AutoPulse Z-10 motherboard. Make

sure the stripe on the cable is positioned at the bottom, as shown in the following figure.

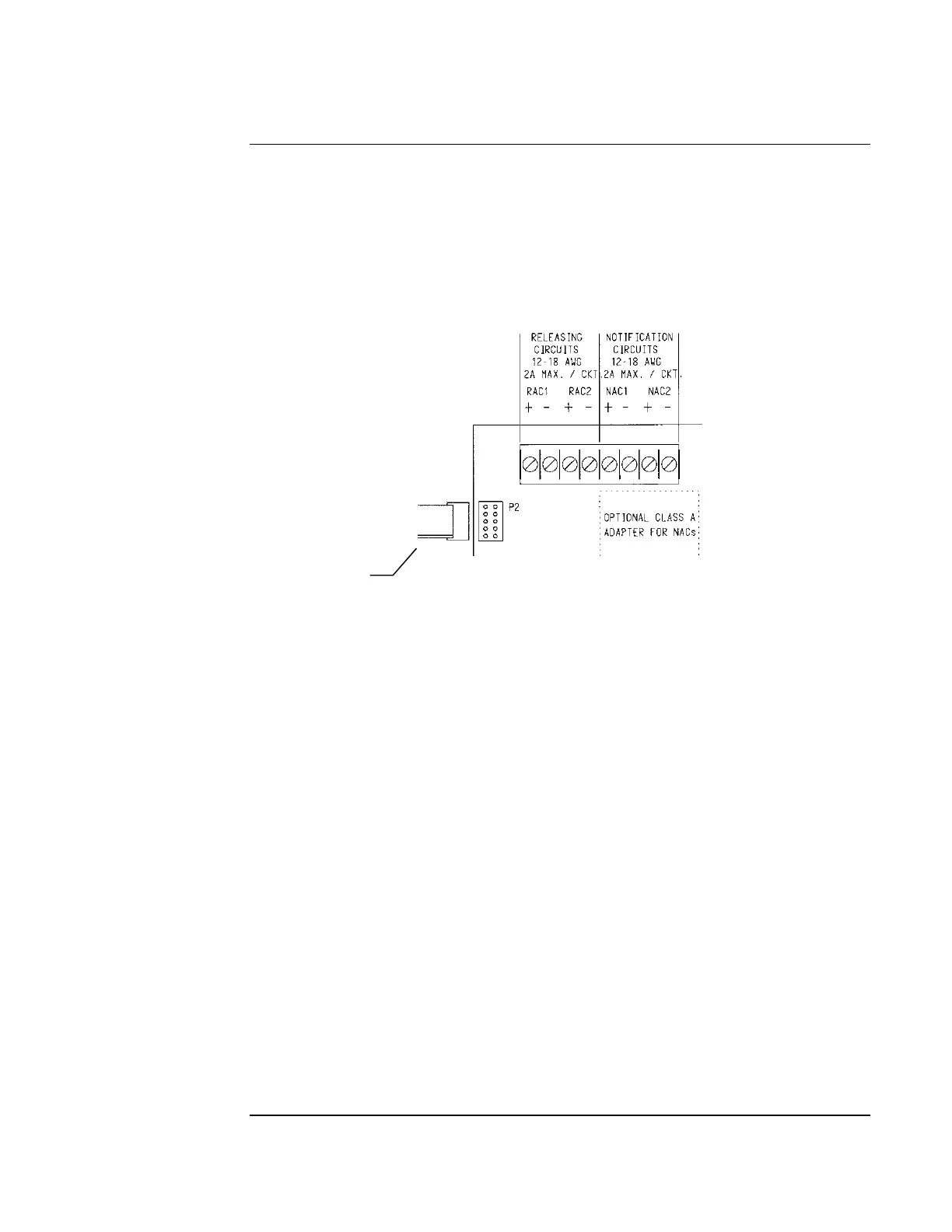

Figure 5-2. Connecting Cable to Service Port

5. Use a terminal emulation program, such as Windows HyperTerminal to establish a serial

communication session with the AutoPulse Z-10. Set the serial communication parameters

for the PC port to which the serial cable is connected, as follows:

 9600 baud

 no parity

 8 data bits

 1 stop bit

6. To display the historical log, enter an “L,” followed by a carriage return, at the dash prompt.

7. To view the timestamp used by the panel, enter a “T,” followed by a carriage return.

To change the timestamp, enter the following command at the dash prompt (where HH is the

hour, MM is the minutes, and SS is the seconds).

T HH:MM:SS

Each field must be separated by a colon.

8. To view the current date set on the panel, enter a “D,” followed by a carriage return, at the

dash prompt.

To change the date set on the panel, enter the following command at the dash prompt (where

MM is the month, DD is the date, and YY is the year).

D MM/DD/YY

Viewing Historical Log/Setting Time and Date

Procedure

Stripe

Part No.

431206

Serial

Cable
