Tyco AutoPulse Z-10 - Programming the RAC Time Limit Cutout

Overview, Continued
The RAC Cutout Timer is a programmable timer that specifies the length of time the Releasing
Circuits are active. When the timer expires, the RACs “cut out”. This stops the water flow or
release of the extinguishing agent. This option is typically used on Deluge systems, and does not
work with all releasing systems and or releasing devices. (Some devices discharge their entire
supply of agent when fired so this setting would have no effect on operation.) A selection of “0”
means the RACs do not “cut out” and remain on until the system is reset.
Method Description
Text-Based
Programming
The fifth prompt, shown below, asks you to set the RAC Cutout Timer.
[05] RAC TIME LIMIT CUTOUT:
d*1 = None
2 = 45 secs.
3 = 1 min.
4 = 3 min.
5 = 4 min.
6 = 5 min.
7 = 6 min.
8 = 7 min.
9 = 3.5 min.
10 = 21 min.
11 = 25 min.
12 = 34 min.
13 = 44 min.
14 = 64 min.
(d=default, *=current setting)
Select Number(X=exit):
Enter the number corresponding to the value you want to select and press the carriage return. Refer to
“Programming Manual Release Time Delay” in the next section for a description of the next programming step.
Front Panel
Programming
Eight selections are available in this first of two RAC Cutout Time menus – no cutout, 45 seconds, one minute,
three minutes, four minutes, five minutes, six minutes, seven minutes. Use the Reset key to scroll through the
selections. When the desired choice is illuminated, press the ACK key to save the selection in memory and
move to the next programming step. If none of the first eight selections are selected, the second RAC Cutout
Time menu will appear. It is shown on the next page.

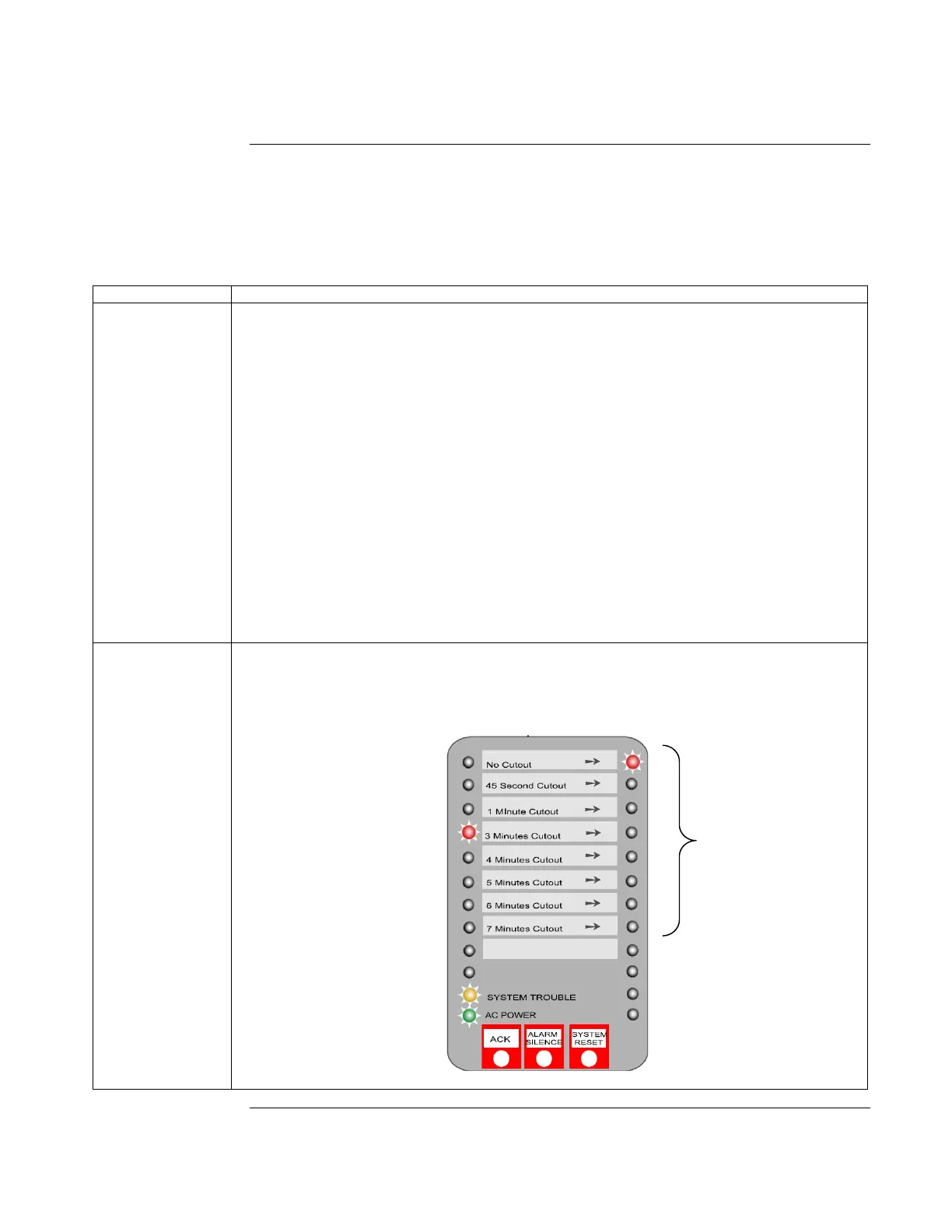

Programming the RAC Time Limit Cutout
Overview
When fourth LED from top
on left side of display is lit,
it indicates that the RAC
Cutout Timer is being
programmed.
These LEDs represent the
available timer selections.
Use the RESET key to
move through the choices.
Press ACK when the
illuminated LED
corresponds to the desired
choice.
Yellow Trouble LED
indicates panel is in
programming mode.
Green LED is AC Power.
