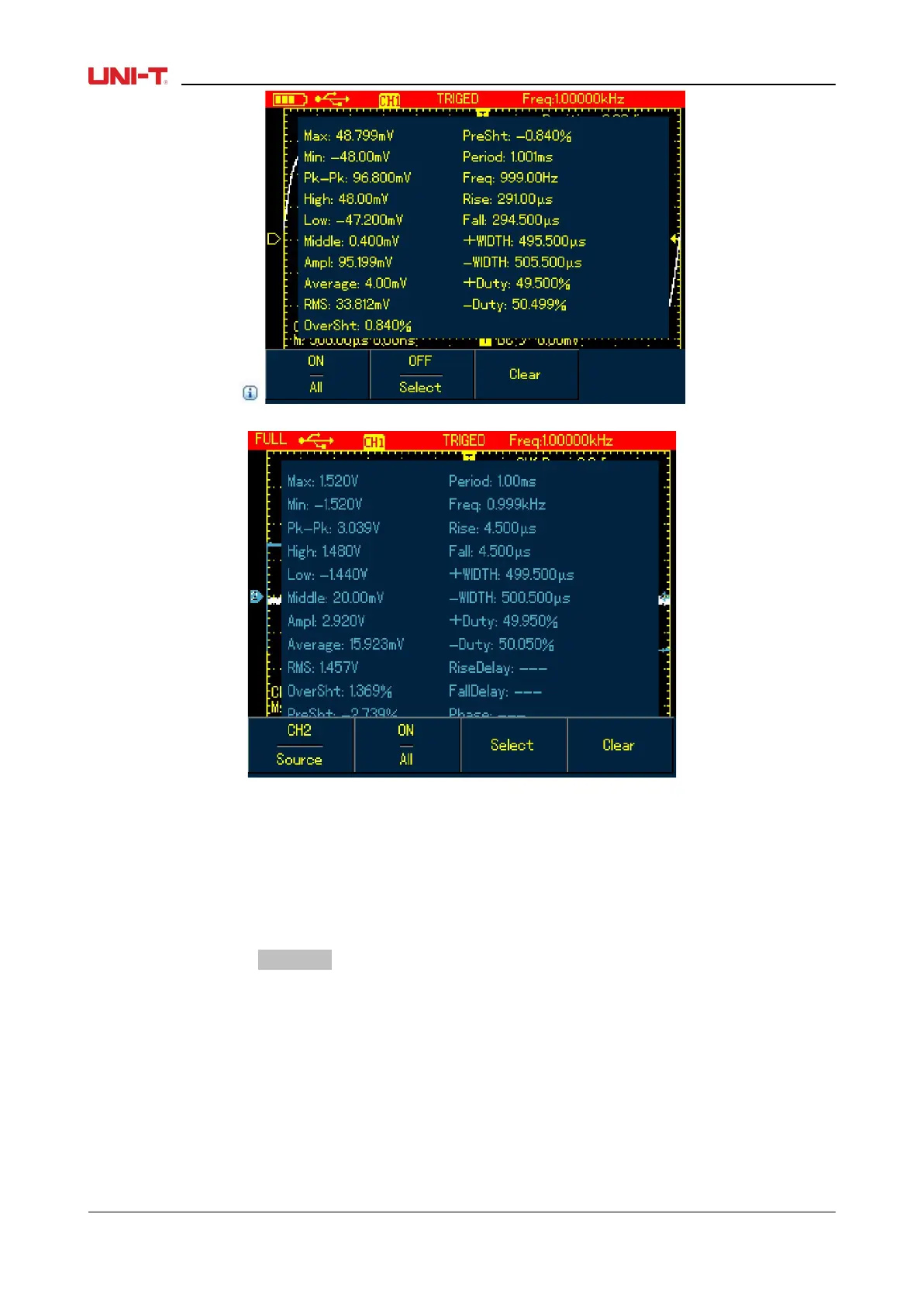

Figure 6-16A UTD1000CL measures all parameters
Figure 6-16B UTD1000DL measures all parameters
Case 2: To measure Vpp and Amplitude parameters, do the following:
1. Press MEASURE to open parameter measurement menu;
2. Press F2 of UTD1000CL (F2 ofUTD1000DL) button to open parameter selection box;
3. Press Arrow Buttons to select Vpp parameter;
4. With Vpp parameter chosen, press SELECT to confirm; and one marker will appear on the front of Vpp
parameter to indicate it has been successfully selected, the parameter will show on the display accordingly.
5. Do the same to select Amplitude parameter;
6. Press SELECT to confirm, one marker also show on the front of Amplitude parameter, and then the
parameter displays on the screen.
7. Press F2 of UTD1000CL (F3 of UTD1000DL) to turn off parameter selection box;
See the following figures for Vpp and Amplitude parameters displayed on the upper right part of screen:
56 UTD1000L User Manual
