Uponor Smatrix Base PULSE User Manual

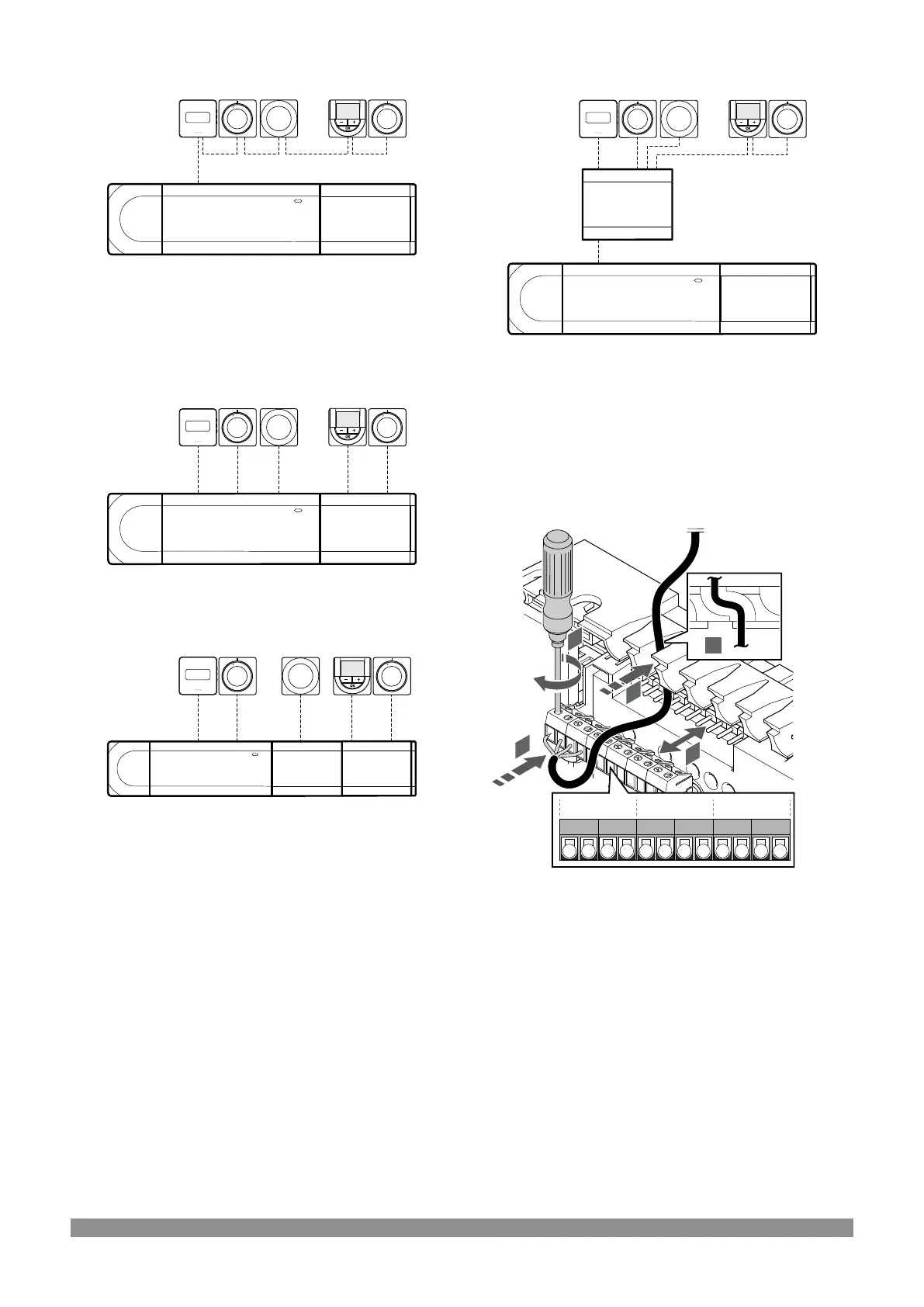

Daisy chain connection
SD0000003
The thermostats in the example are connected in series and only one
cable needs to be routed from the room controller and slave module
(if available).
This method reduces the total length of cable needed in the system.
Direct connection to room controller and slave
module
SD0000004
Every thermostat in the example is connected to the room controller
and slave module (if available) with its own cable.
Connection to attached star module
SD0000005
The star module is attached to the room controller and slave module
(if available) adding extra connection terminals to the system. Each
thermostat in the example is connected direct to the room controller,
slave module (if available) and star module.
Connection to cable connected star module
SD0000006
The star module is connected to the room controller and/or slave
module (if available) with a cable, using two of the extra connection
points. Each thermostat in the example is connected direct to the star
module, except one that is connected with daisy chain.
Connect communication cable
Connect the communication cable to either the room controller, slave
module, and/or star module.
Connect communication cable to room controller
+ - + - + -BA BA BA
3
3
1
1
2
SI0000034
1. Lead the cables through cable entries on the top of the room
controller frame.
2. Insert the four wires (A,B, + and -) into the connector on the
room controller.
3. Tighten the screws fixing the wires in the connector.
26
|
Uponor Smatrix Base PULSE
|
Installation and operation manual
