Uponor Smatrix Base PULSE User Manual

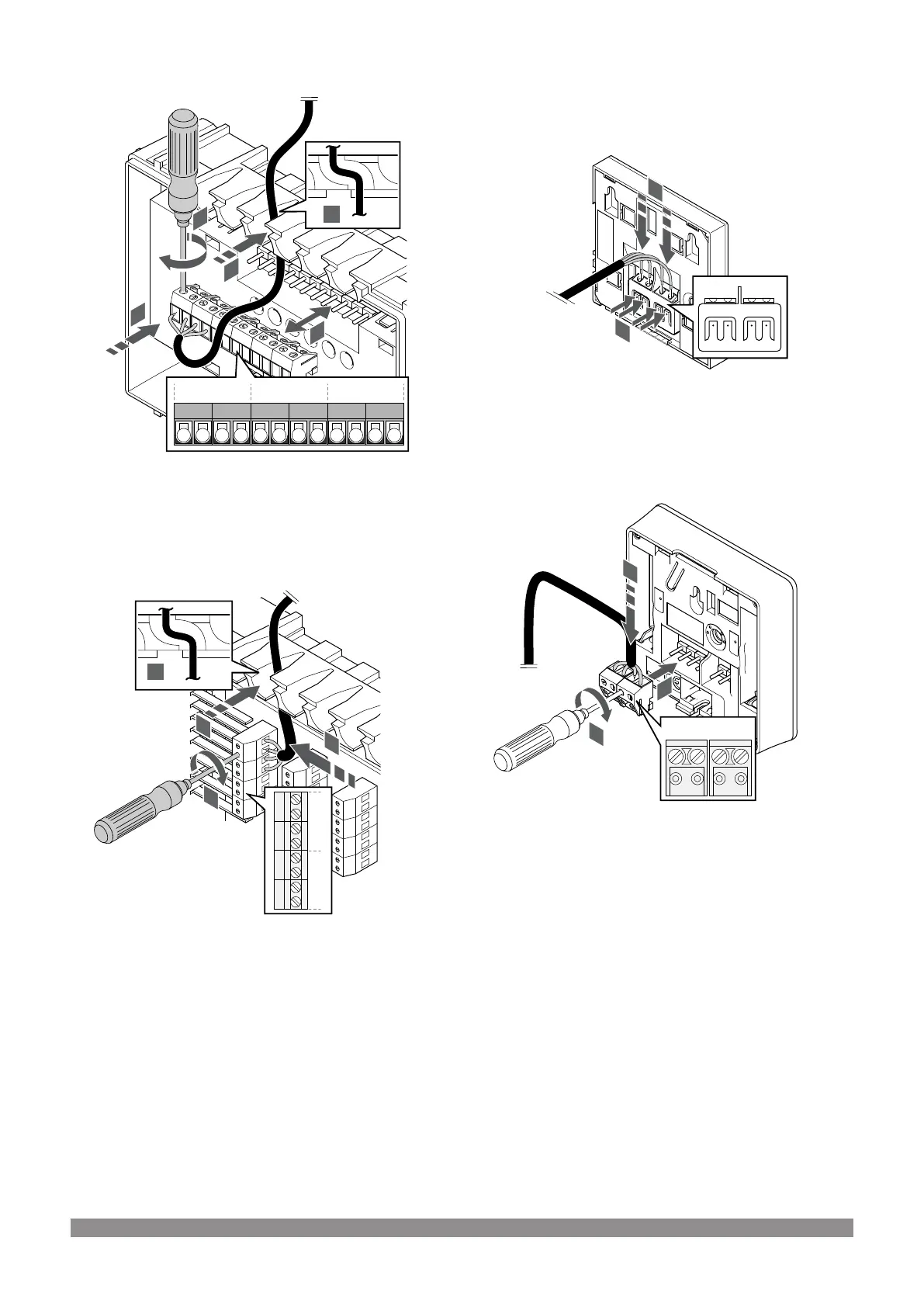

Connect communication cable to slave module
+ - + - + -BA BA BA
3
3
1
1
2
SI0000035
1. Lead the cables through cable entries on the top of the slave
module frame.
2. Insert the four wires (A,B, + and -) into the connector on the
slave module.
3. Tighten the screws fixing the wires in the connector.
Connect communication cable to star module
+ - + -BA BA
2
3
1
1
SI0000033
1. Lead the cables through cable entries in the star module frame.
2. Insert the four wires (A,B, + and -) into the connector on the
electrical card.
3. Tighten the screws fixing the wires in the connector.
Connect communication cable to thermostat
Connect the communication cable to a thermostat.
Uponor Smatrix Base T-141
+ -A B
1
2
SI0000032
1. Press the push buttons on the connection terminal on the back
of the thermostat.
2. While pressing the push buttons, insert each of the four wires
into the connection terminal on the thermostat (marked A,B, + or
-).
Uponor Smatrix Base T-143
SI0000036
A B + -
1
2
3
1. Insert the four wires into the removable connectors marked (A,B,
+ and -) on the thermostat.
2. Tighten the screws fixing the wires in the connector.
3. Insert the connectors on the input pegs on the thermostat.
Uponor Smatrix Base PULSE
|
Installation and operation manual
|
27
