Uponor Smatrix Base PULSE User Manual

Caution!
Changing status of the pump management and/or
cooling allowed (in the Uponor Smatrix app, requires
communication module) will set all relays to Not
configured. Which will have to be configured again.
Note
In systems with multiple room controllers (master/sub
configuration), all relays are initially set to Not
configured. Which will have to be configured during
installation.
Note
The room controller cannot supply power for the output.
Note
The room controller uses a dry contact connection on the
terminal block to control the output. When the relay
closes the function is activated.
Note
The electrical circuits of the output must be protected by
a circuit breaker with a maximum rating of 8 A.
The room controller has two relays which can be operated
independently.
The relays on the master room controller can be set to one of the
following combinations. A communication module is required to
change the relay configuration from default values.
Relay 1 (PUMP) Relay 2 (BOILER)
Circulation pump (default)
1)
Boiler (default)
Circulation pump
1)
H/C Switch
3)
Circulation pump
1)
Dehumidifier
5)
Chiller
1)3)
Boiler
Circulation pump
1)
Comfort/ECO
6)
Not configured Not configured
The relays on the sub room controller can be set to one of the
following combinations. A communication module is required for
configuration.
Relay 1 (PUMP) Relay 2 (BOILER)
Circulation pump
2)
H/C Switch
4)
Circulation pump
2)
Dehumidifier
5)
Not configured Not configured
1) Function only available when Pump management is set to Individual or
Common.
2) Function only available when Pump management is set to Individual,
otherwise "Not used" is shown in the Uponor Smatrix PULSE app.
3) Function only available when cooling is activated.
4) Function only available when cooling is activated, otherwise "Not used" is
shown in the Uponor Smatrix PULSE app.
5) Function only available during relative humidity control (in cooling, no fan
coils).
6) This function is also used when connecting a ventilation unit.

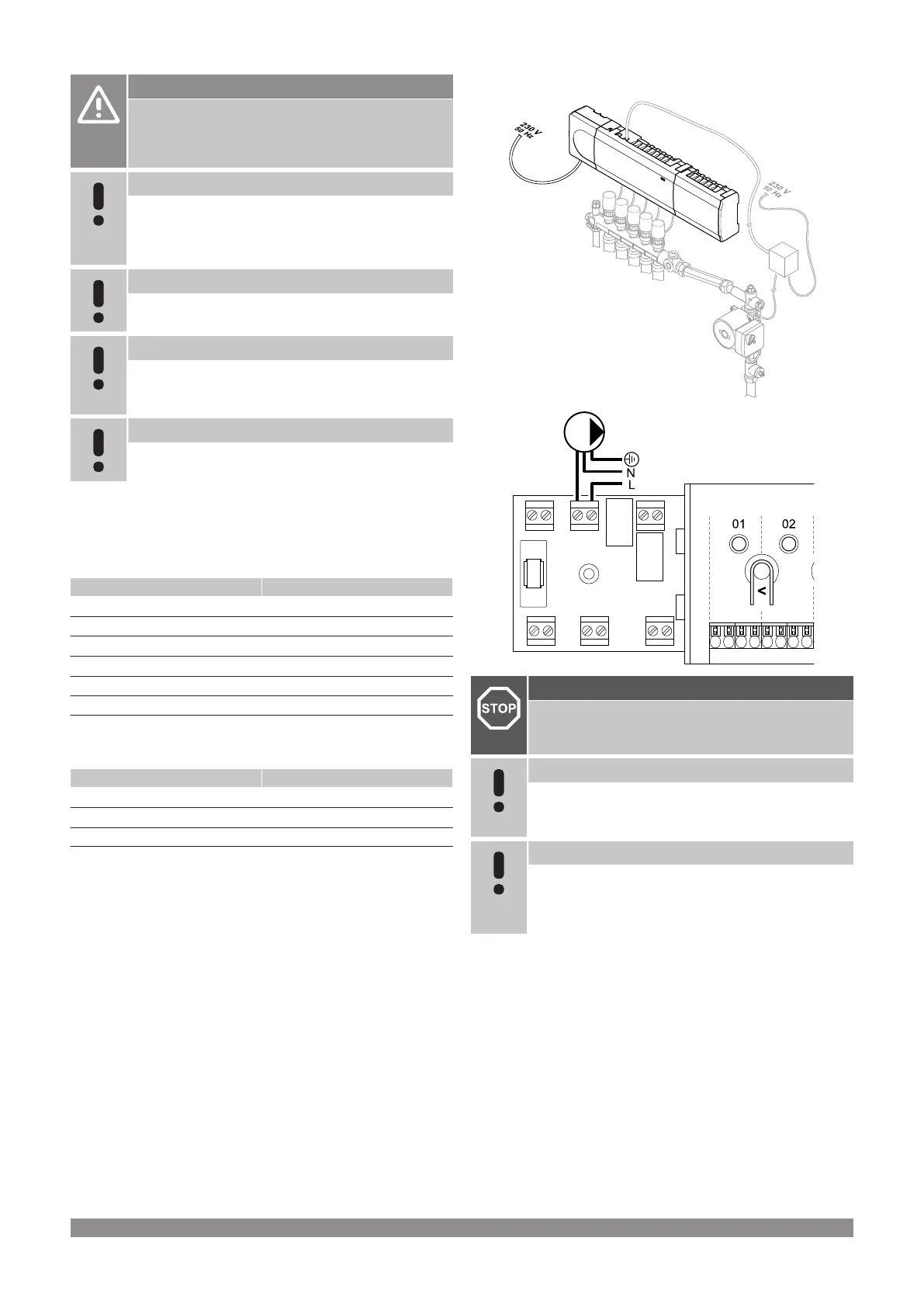

Circulation pump
CD0000000
RELAY 1
(PUMP)
WD0000003
Warning!
Risk of electrical shock! Electrical installation and service
behind secured 230 V AC covers must be carried out
under the supervision of a qualified electrician.
Note
See the documentation from the circulation pump
supplier as well as relevant Uponor wiring diagrams
before connecting the pump.
Note
There is no power in the room controller to supply the
pump. The connector in the room controller provides only
a dry contact to switch off and on the power connection
to the pump.
1. Ensure that the power is disconnected from both the room
controller and the circulation pump.
2. Remove the screw and open the cover for the optional
connections compartment.
3. Route the cable to/from the pump via a cable entry.
4. Connect the L wire to/from the pump via the connection labelled
Relay 1 (PUMP).
5. Secure the pump cable with a cable clamp in the enclosure.
6. Close and secure the lid to the optional connections
compartment.
Uponor Smatrix Base PULSE
|
Installation and operation manual
|
31
