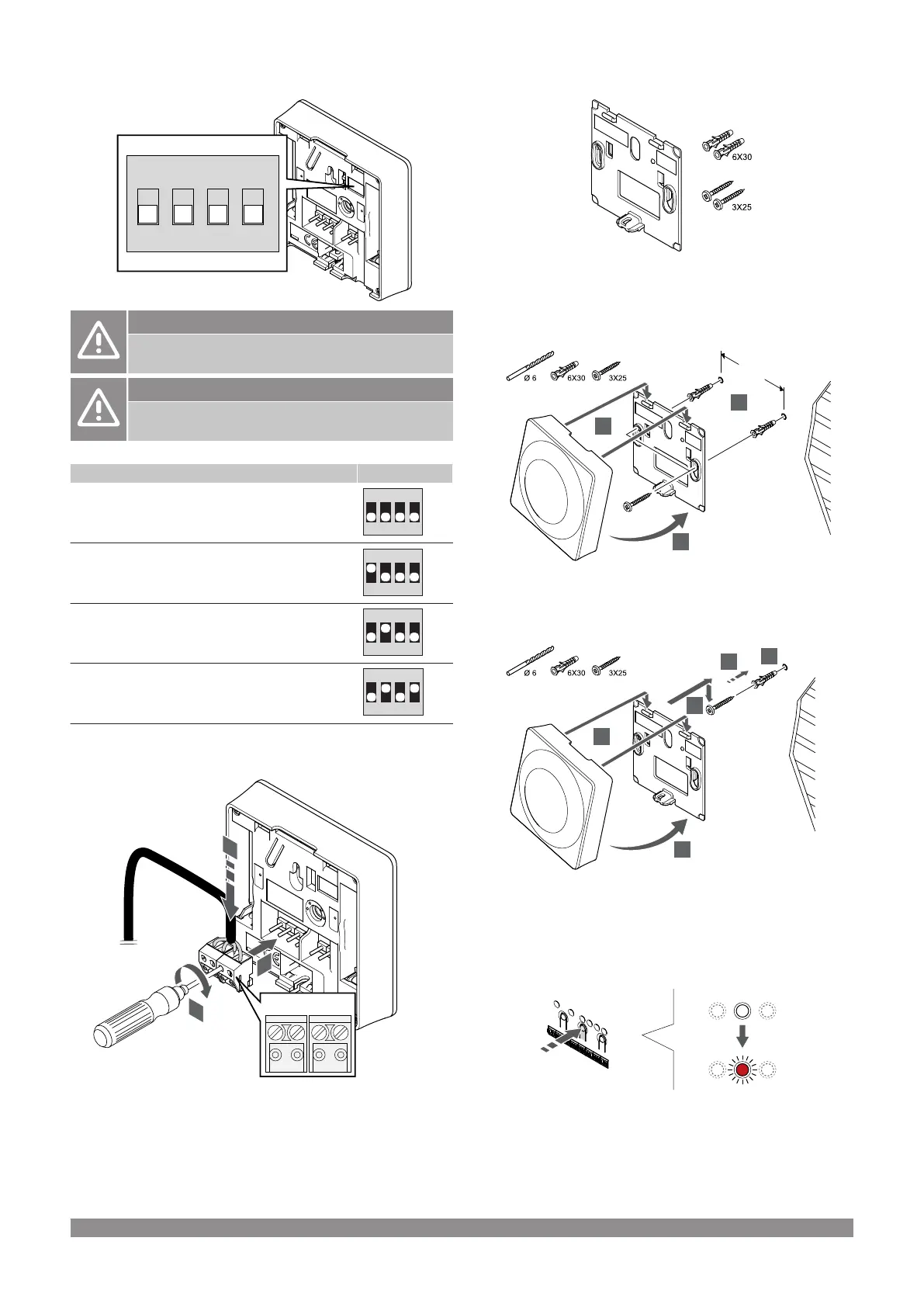

Uponor Smatrix Base PULSE User Manual

DIP switch
1 2 3 4
ON DIP
CD0000010
Caution!
The DIP switch in the thermostat must be set before it is
registered.
Caution!
The switches must be set to one of the available
functions, otherwise the thermostat cannot be registered.
Set the DIP switch according to the function of the thermostat.
Thermostat function Switch
Room temperature sensor
1 2 3 4
ON DIP
Room temperature sensor and floor temperature
sensor
1 2 3 4
ON DIP
Room temperature sensor and outdoor temperature
sensor
1 2 3 4
ON DIP
Remote sensor
1 2 3 4
ON DIP
Connect communication cable to thermostat
SI0000036
A B + -
1
2
3
1. Insert the four wires into the removable connectors marked (A,B,
+ and -) on the thermostat.
2. Tighten the screws fixing the wires in the connector.
3. Insert the connectors on the input pegs on the thermostat.
Attach thermostat to the wall
CD0000004
The thermostat is delivered in a kit with screws, wall plugs, and a wall
bracket, presenting several options of attaching the thermostat to the
wall.
Wall bracket (recommended)
60 mm
1
2
3
SI0000018
Attach the thermostat to the wall using the wall bracket, screws and
wall plugs.
Screw and wall plug
5
1
2
3
4
SI0000017
Attach the thermostat to the wall using the screw and wall plug.
Register thermostat to room controller
1. Enter registration mode
3 s
SI0000065
Press and hold the OK button on the room controller until the LED for
channel 1 (or the first unregistered channel) flashes red.
Uponor Smatrix Base PULSE
|
Installation and operation manual
|
39
