Uponor Smatrix Base PULSE User Manual

Uponor Smatrix Base T-143
During normal operation a discreet LED on the back of the thermostat
is lit for about 60 seconds if there is a demand for heating or cooling.
The thermostat contains a switch that, if activated during registration,
sends an alarm when the thermostat is removed from the wall. The
alarm is transmitted by radio, causing the related channel LEDs on
the room controller to flash.

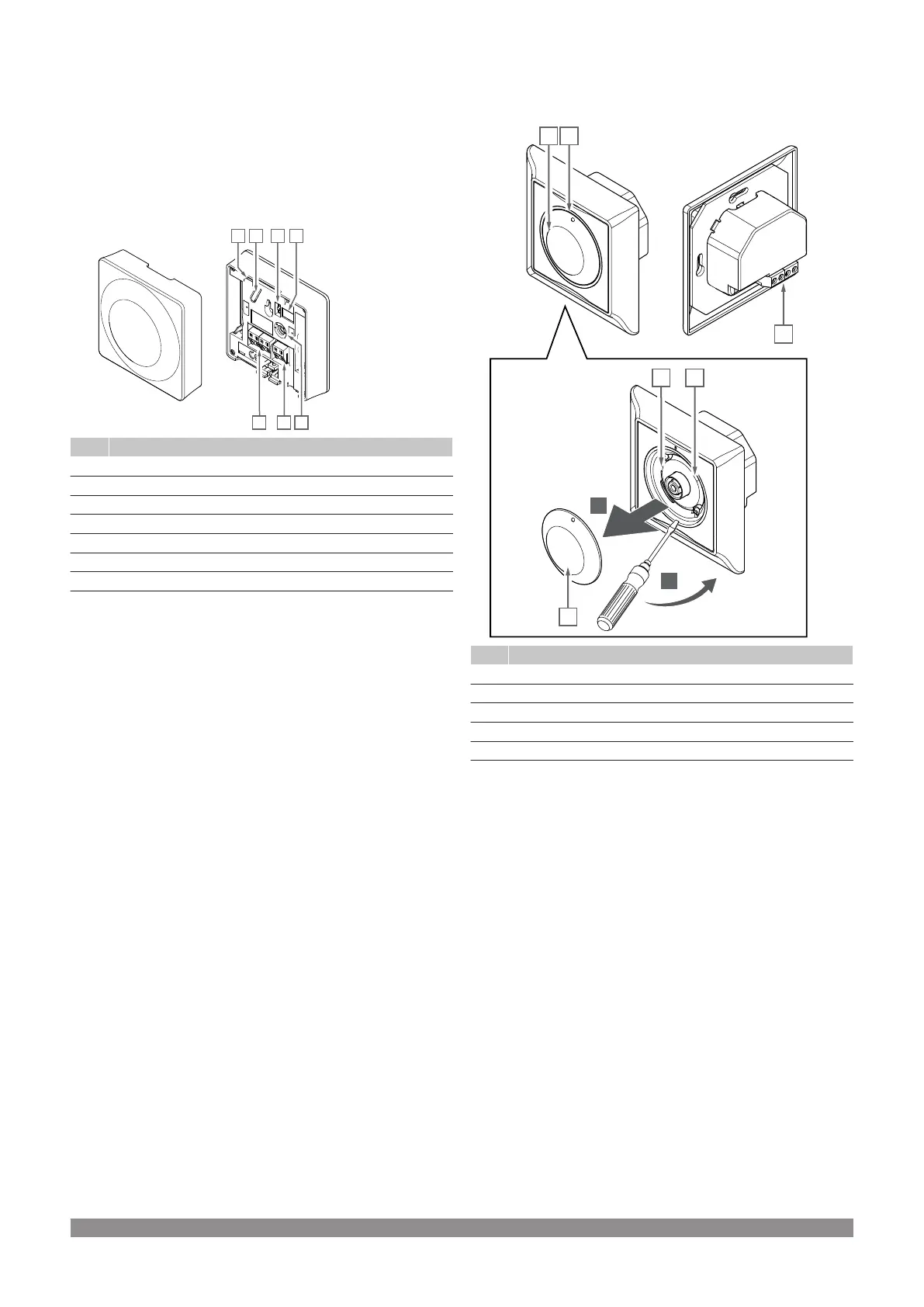

The illustration below shows the parts of the thermostat.
CD0000143
B
AD
E
F
G C
Item Description
A Setpoint temperature potentiometer
B Registration button
C Disable timer switch
D Terminal for external sensor (non-polarised)
E Configuration DIP switches
F Terminal for communication cable
G Heating/cooling demand LED
Uponor Smatrix Base T-144
The illustration below shows the parts of the thermostat.
CD0000143
A
A B
D
E
C
1
2
Item Description
A Room temperature setpoint dial control
B Heating/cooling demand LED
C Registration button
D Disable timer switch
E Terminal for communication cable
Uponor Smatrix Base PULSE
|
Installation and operation manual
|
67

Uponor Smatrix Base PULSE Specifications

General

Brand	Uponor
Model	Smatrix Base PULSE
Category	Controller
Language	English
