6-20 SB80 Work Platform - European
I
LLUSTRATED
P
ARTS
B
REAKDOWN

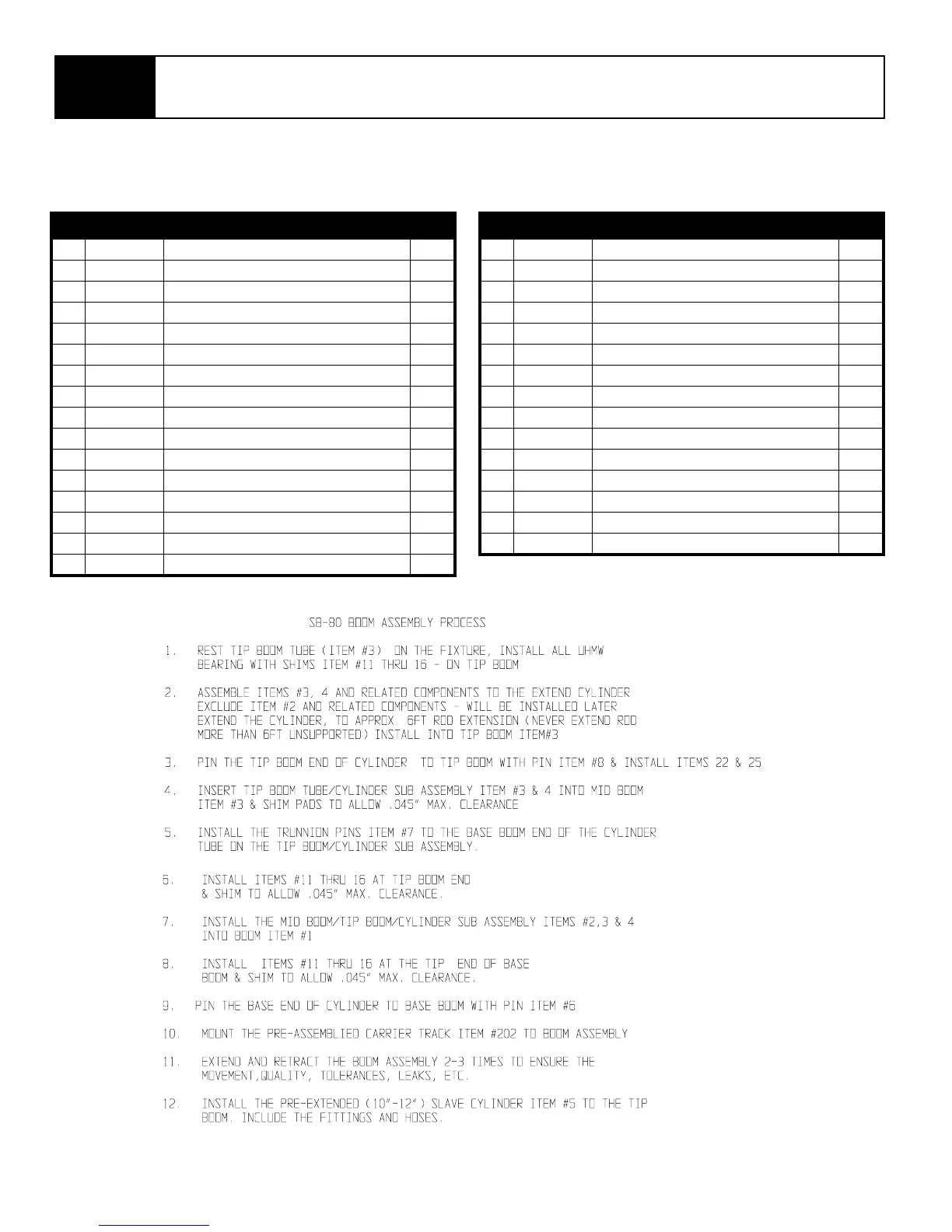

Section
6.1
B
OOM
A
SSEMBLY
,
SB80
102009-000
ITEM PA RT NO. DESCRIPTION QTY.
1 102094-000 BASE BOOM WELDMENT 1
2 102095-000 MID BOOM WELDMENT 1
3 102096-000 TIP BOOM WELDMENT 1
4 102049-000 EXTENSION CYLINDER ASSEMBLY 1
5 102338-000 SLAVE CYLINDER ASSEMBLY 1
6 100480-003 PIN, (EXT. CYL. BASE) 1
7 100472-013 PIN WELDMENT, (EXT. CYL. MID) 2
8 102200-000 PIN, (EXT. CYL. TIP) 1
9 102201-000 PIN, SLAVE CYL. 1
10 011764-023 SNAP RING 4
11 102081-000 SHIM, 3 X 7 X .079 AS REQ.
12 102081-001 SHIM, 3 X 7 X .040 AS REQ.
13 102083-000 SHIM, 1.5 X 6 X .079 AS REQ.
14 102083-001 SHIM, 1.5 X 6 X .040 AS REQ.
15 102051-000 SLIDE PAD, HIGH LOAD 8
16 102050-000 SLIDE PAD 24
17 102367-000 EXTEND INTERLOCK WELDMENT 1
18 102368-000 EXTEND INTERLOCK BRACKET 1
19 100562-300 BEARING, GARLOCK 4048-48 2
20 011254-008 SCREW HHC 3/8-16 UNC X 1 20
21 011254-007 SCREW HHC 3/8-16 UNC X 7/8 16
22 011238-006 WASHER 3/8 SPLIT RING LOCK 36
23 011248-006 LOCKNUT 3/8-16 ESNA 32
24 011254-004 SCREW HHC 3/8-16 UNC X 1/2 2
25 011254-010 SCREW HHC 3/8-16 UNC X 1 1/4 2
26 014996-004 WASHER 1/4 FLAT 2
27 011238-004 WASHER 1/4 LOCK 2
28 011252-006 SCREW HHC 1/4-20 UNC X 3/4 2
29 011287-004 SCREW FLAT HD SOC 3/8-16 UNC X 1/2 2
30 011254-024 SCREW HHC 3/8-16 UNC X 3 1
31 011248-006 NUT 3/8-16 ESNA 1
ITEM PA RT NO. DESCRIPTION QTY.
