Upright SB80 - Figure 3-31: Axle Extend Cylinder

SB80 Work Platform - European 3-25
M
AINTENANCE
Section
3.18

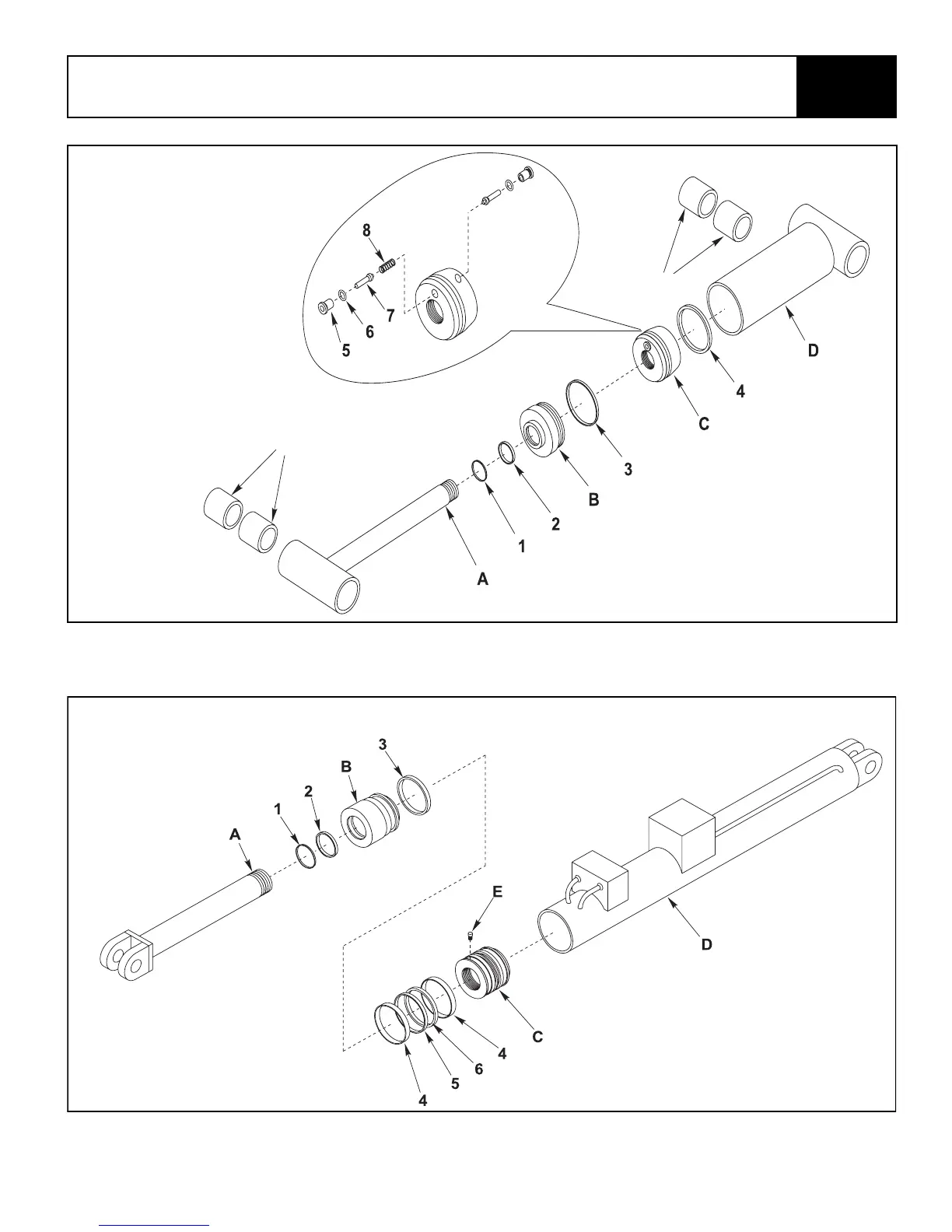

Figure 3-30: Steering Cylinder
Figure 3-31: Axle Extend Cylinder
E
F
Seal Kit 102257-010 Includes:
1. Rod Wiper
2. Rod Seal
3. Static Seal
4. Piston Seal
5. Plug
6. Seal
7. Pin
8. Spring
A. Rod
B. Head
C. Piston
D. Cylinder
A. Rod
B. Head
C. Piston
D. Cylinder
E. Set Screw
Seal Kit 102335-010 Includes:
1. Rod Wiper
2. Rod Seal
3. Static Seal
4. Wear Ring
5. Piston Seal
6. Backup Ring
