SB80 Work Platform - European 3-11
M
AINTENANCE
Section
3.10
3.10 T
ILT
S
ENSOR
The Tilt Sensor has three wires; red-power (12v in),
black-ground, white-output (12v out). To verify the
sensor is working properly there is an LED on the
bottom of the sensor that lights up when the sensor is
out of level.
1. Check tires for proper pressure.
2. Place machine on firm level surface ± 1/4°.
3. Use Inclinometer to ensure that the front and rear
the chassis are level within ± 1/4°.
4. Adjust the three leveling locknuts until the bubble
is centered in the circle on the bubble level.
5. Elevate the platform until the down limit switch
opens and push the tilt sensor base to test the
alarm circuit. Alarm should sound.

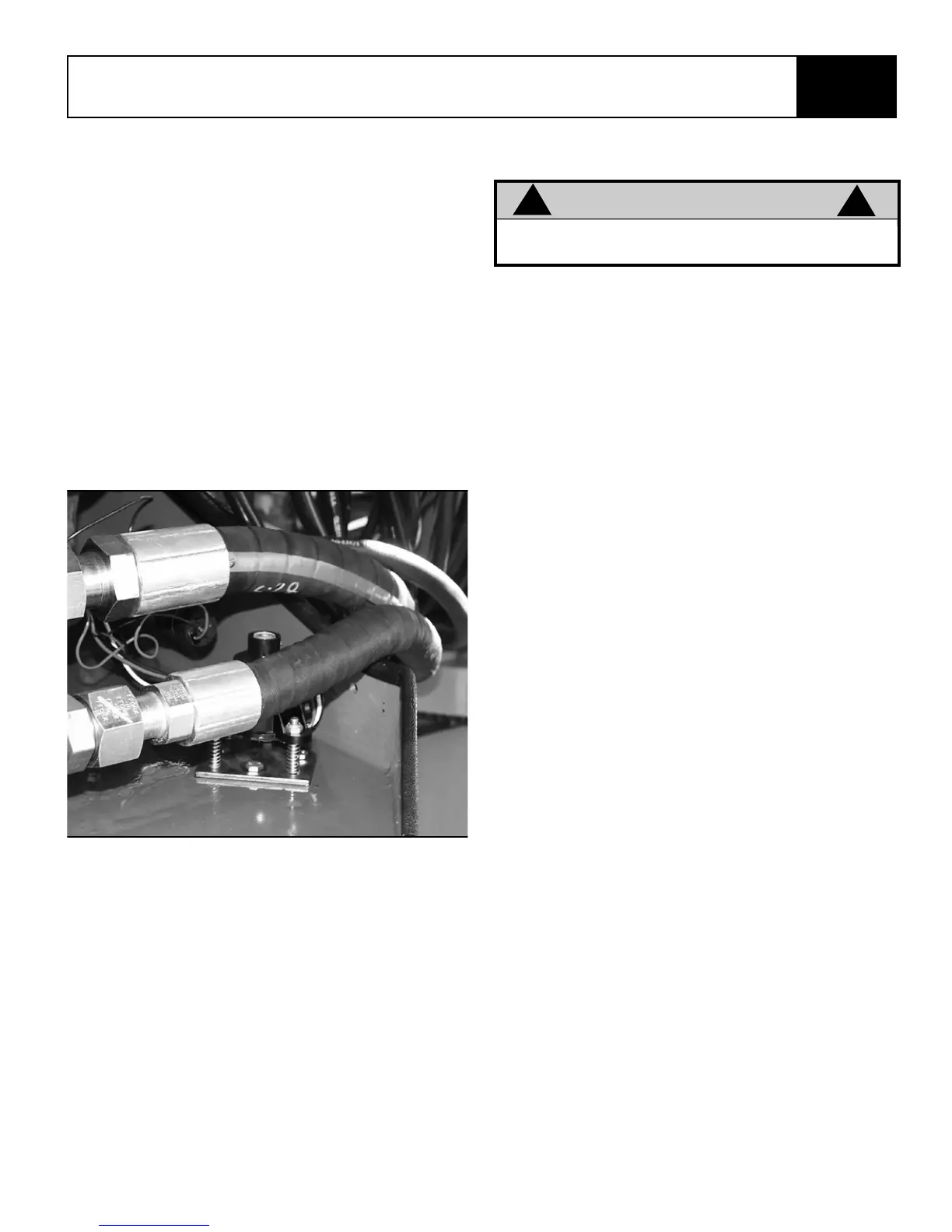

Figure 3-12: Tilt Sensor
1. Lower the Platform completely.
2. With the Platform / Chassis switch on Chassis,
push the Tilt Sensor base to test the alarm circuit.
3. If the alarm sounds, elevate the platform and
adjust the position of the switch arm by loosening
the adjustment screw and repositioning the arm.
Lower the platform and retest. If down limit switch
is properly adjusted, the tilt alarm will not sound.
4. With platform elevated, repeat step 2. When
switch is properly adjusted, alarm will sound.
WARNING
!
!
DO NOT attempt to adjust Limit Switches with-
out first blocking the elevating assembly.
