M
ACHINE
P
REPARATION
& O
PERATION
Section
2.6
2-10 SB80 Work Platform - European
Machines Equipped With Plus3
Option
Machines equipped with Plus3 option are capable of
operating all functions on a firm flat 3° slope.
2.6 T
RANSPORTATION
Important: Axles must be fully retracted to trans-
port machine. Machine must be driven forward
or reverse while retracting the axles. Ensure all
four wheels can be clearly seen and persons
and obstacles are clear of the machine.
1. Drive the machine forward or reverse.
2. Hold the axle extend/retract switch to retract.
3. The axles will retract.
4. Re-synchronize the steering geometry by steer-
ing full left or full right and holding for a few sec-
onds.
5. The machine may now be loaded for transport.
By Crane
1. Ensure that boom is fully lowered and retracted.
2. Attach straps to chassis lifting lugs only. Ensure
that straps are adjusted properly to keep unit
level when lifting.
By Truck or Trailer
1. Ensure that boom is fully lowered and retracted.
2. Maneuver the machine onto bed of truck / trailer.
3. When winching, follow instructions for emergency
towing on page 2-9. Attach winch cable to front
tie down lugs.
4. After winching, ensure that all four drive hubs are
engaged by returning the center caps to their
original orientation.
5. Secure the machine to the transport vehicle using
chains / straps of adequate load capacity (refer to
specifications, Table 1-1) attached to chassis tie
down lugs (Figure 2-5).
6. Place wooden block (10 cm x 20 cm x 1 m) under
platform support braces as shown. (Figure 2-6)
7. Attach ratchet strap to platform tie down brackets.

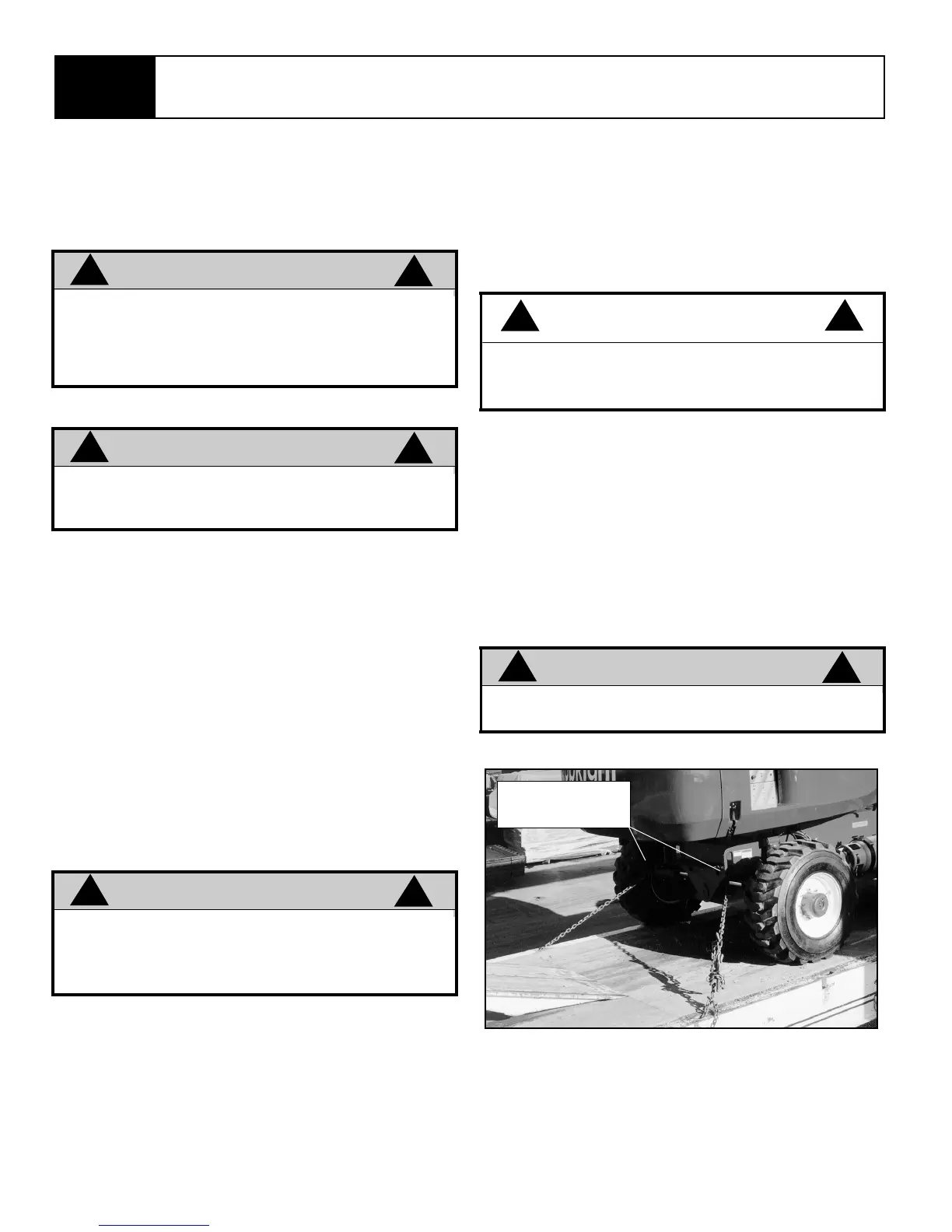

Figure 2-5: Front Chassis Tie Down Lifting Lugs
WARNING
!
!
DO NOT operate machines with Plus3 option
unless machine is equipped with foam filled
tires. Remove machine from service and install
proper tire/wheel combination before operating
machine.
WARNING
!
!
If tilt warning sounds and machine will not oper-
ate, retract boom, lower platform and move
machine to a firm surface less than 3°.
WARNING
!
!
Stand clear of machine when lifting.
Check specifications on Table 1-1, ensure that
crane and slings are of correct capacity to lift
weight of unit.
CAUTION
!
!
Do not winch machine faster than 3 mph.
Faster speeds will damage drive components
and void warranty.
WARNING
!
!
NEVER elevate the machine while on a truck or
trailer.
Chassis Tie Down
Lifting Lugs
