Upright SB80 - Figure 3-28: Upper Boom Extend Cylinder; Figure 3-29: Lower Boom Extend Cylinder

3-24 SB80 Work Platform - European
M
AINTENANCE
Section
3.18

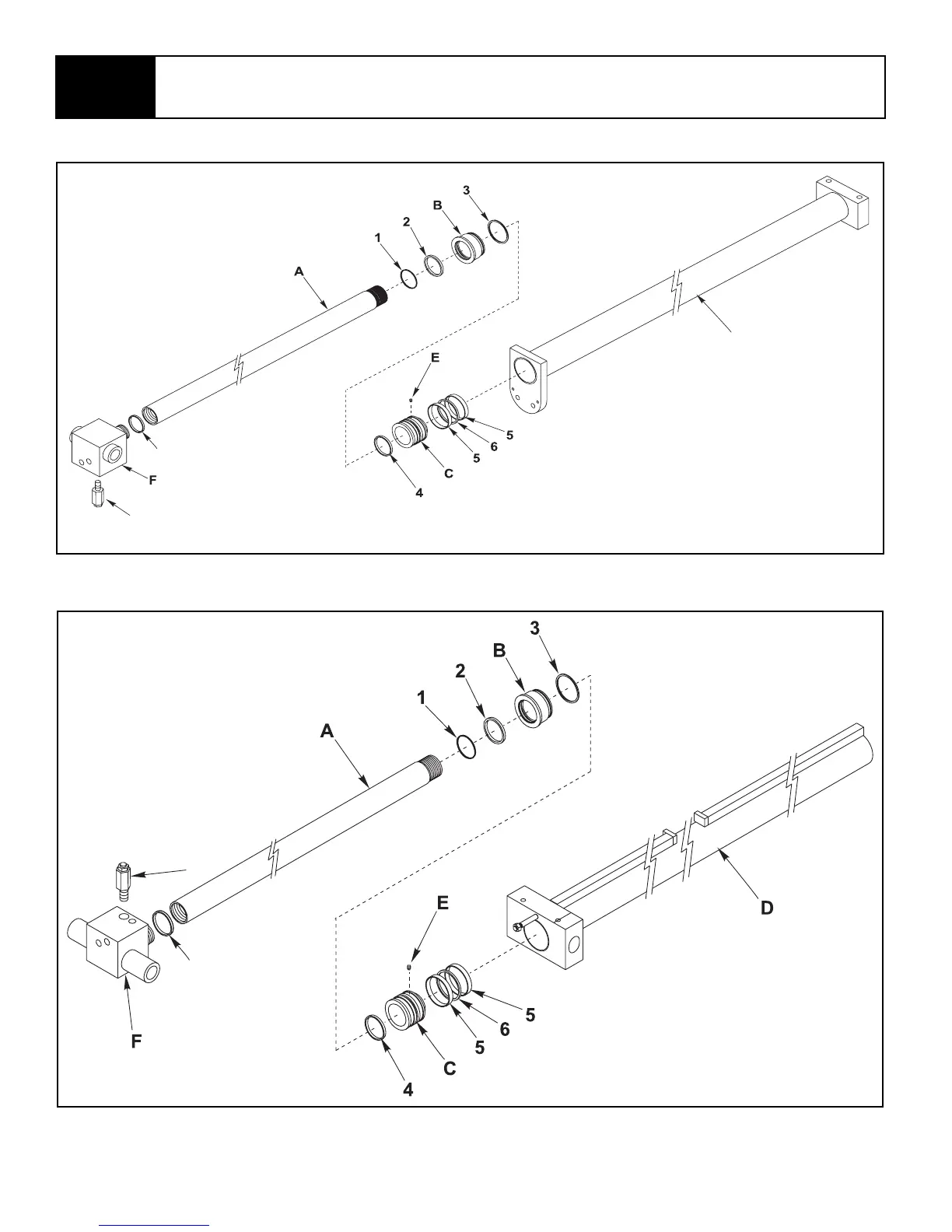

Figure 3-28: Upper Boom Extend Cylinder
Figure 3-29: Lower Boom Extend Cylinder
7
G
D
Seal Kit 102253-012 Includes:
1. Rod Wiper
2. Rod Seal
3. Static Seal
4. Static Seal
5. Wear Ring
6. Piston Seal
7. Static Seal
A. Rod
B. Head
C. Piston
D. Cylinder
E. Set Screw
F. Head
G. Counterbalance
7
G
Seal Kit 102253-012 Includes:
1. Rod Wiper
2. Rod Seal
3. Static Seal
4. Static Seal
5. Wear Ring
6. Piston Seal
7. Static Seal
A. Rod
B. Head
C. Piston
D. Cylinder
E. Set Screw
F. Head
G. Counterbalance
