Upright SB80 - Figure 3-25: Slave Cylinder

3-22 SB80 Work Platform - European
M
AINTENANCE
Section
3.18

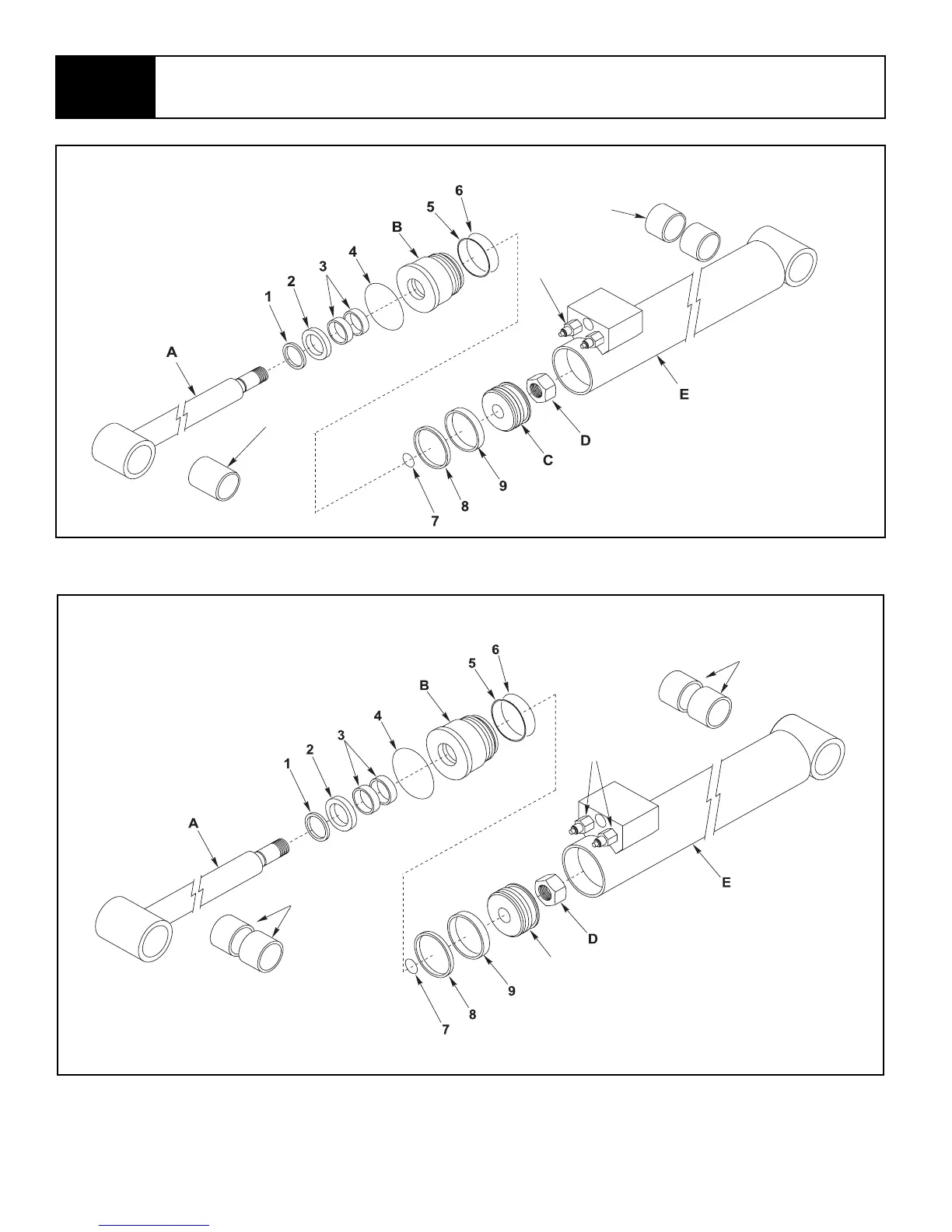

Figure 3-24: Master Cylinder
Figure 3-25: Slave Cylinder
F
G
H
A. Rod
B. Head
C. Piston
D. Nut
E. Cylinder
F. Counterbalance
G. Bushing
H. Bushing
NOTE: Torque Locknut “D”to 339-407 Nm
Seal Kit 102255-010 Includes:
1. Rod Wiper
2. Rod Seal
3. Wear Ring
4. O-Ring
5. Backup Ring
6. O-Ring
7. O-Ring
8. Seal
9. Wear Ring
C
F
F
G
A. Rod
B. Head
C. Piston
D. Nut
E. Cylinder
F. B u s h i n g
G. Counterbalance
Seal Kit 102252-010 Includes:
1. Rod Wiper
2. Rod Seal
3. Wear Ring
4. O-Ring
5. Backup Ring
6. O-Ring
7. O-Ring
8. Seal
9. Wear Ring
NOTE: Torque Locknut “D”to 339-407 Nm
