Upright SB80 - Figure 3-16: Torque Hub

SB80 Work Platform - European 3-17
M
AINTENANCE
Section
3.14

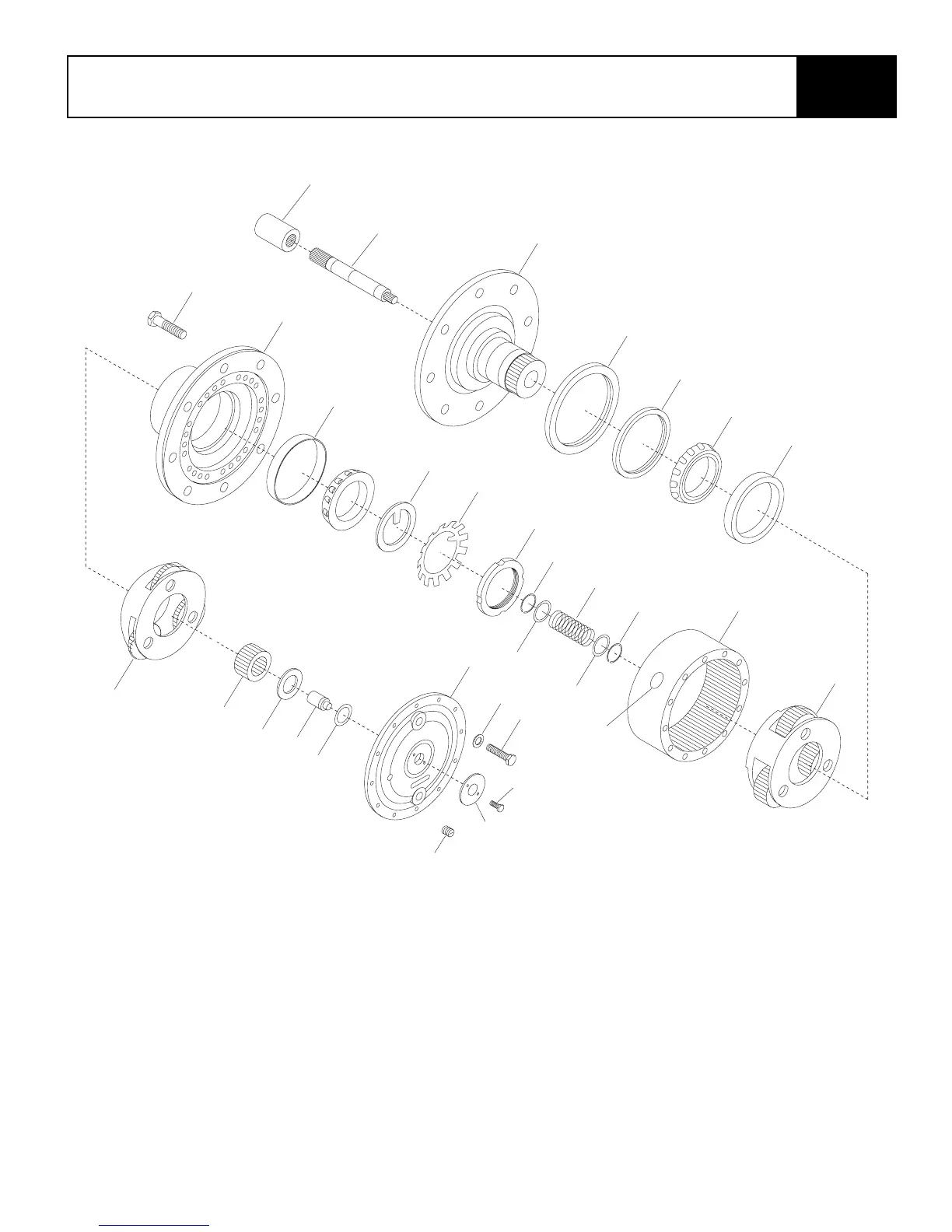

Figure 3-16: Torque Hub
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
15
17
16
16
18
20
19
21
22
23
24
25
26
28
27
31
30
29
1. Coupling
2. Input Shaft
3. Spindle
9. Hub
14. Bearing Nut
15. Retaining Ring
16. Washer
17. Disengage Spring
18. Ring Gear
19. Magnetic Plug
20. Secondary Carrier
Assembly
21. Primary Carrier Assy.
22. Primary Sun Gear
24. Disengage Plunger
26. large Cover
27. Hex Head Bolt
28. Flat Washer
29. Pipe Plug
30. Disengage Cover
31. Hex Head Bolt
Repair Kit Contains:
4. Boot Seal
5. Oil Seal
6. Bearing, Cone
7. Bearing, Cup
8. Wheel Bolt
10. Bearing Cup
11. Bearing Cone
12. Thrust Washer
13. Lock Washer
23. Thrust Washer
25. O-Ring
