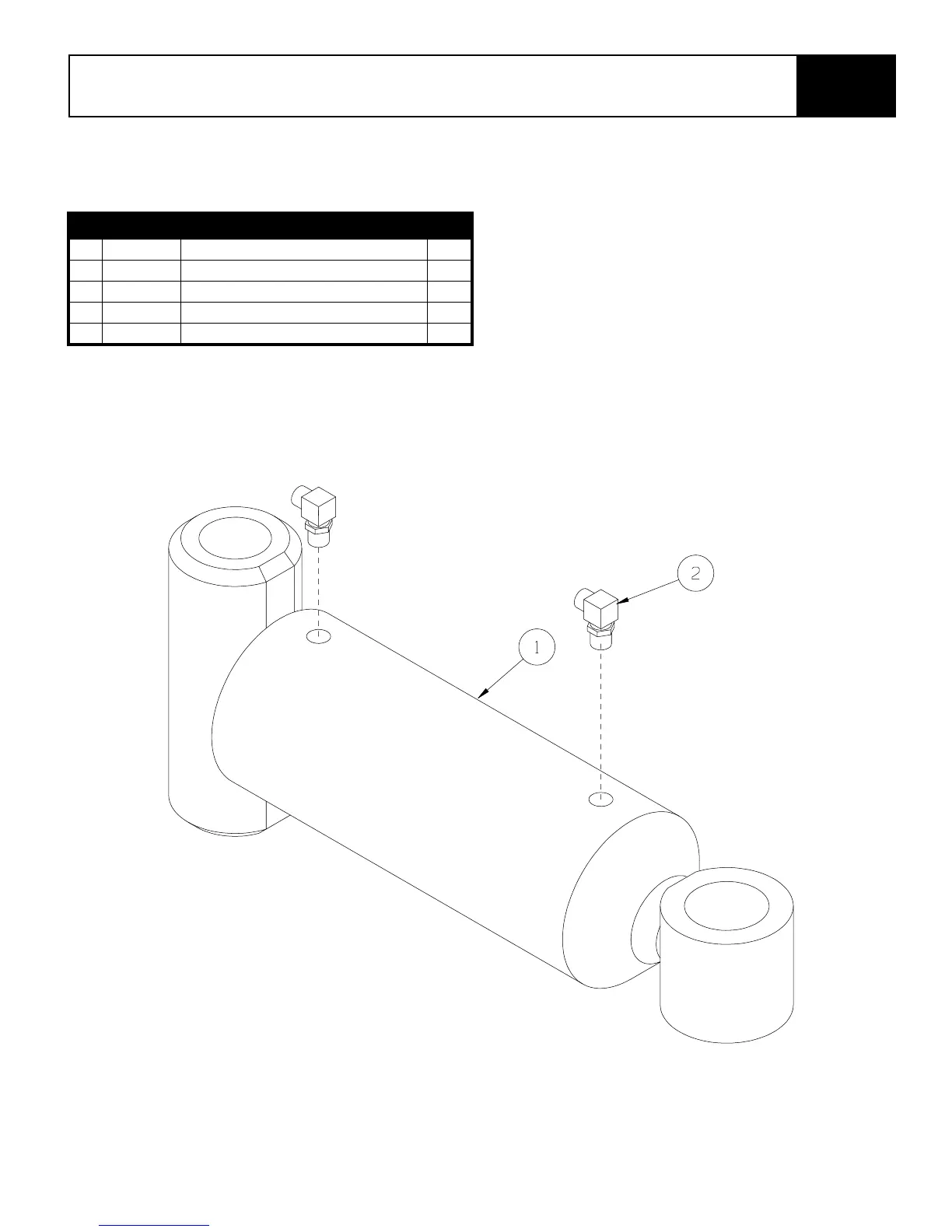

Upright SB80 - Figure 3-30: Steering Cylinder

To Next Page

To Previous Page

SB80 Work Platform - European 6-87

LLUSTRATED

ARTS

REAKDOWN

Section

6.1

TEERING

YLINDER

SSEMBLY

SB80

102344-000

ITEM PART NO. DESCRIPTION QTY.

1 102257-000 STEERING CYLINDER 1

* 102257-010 SEAL KIT -

* 102257-003 BUSHING (ROD END) 1

* 102257-004 BUSHING (CYLINDER END) 1

2 100434-008 FITTING, 90° ADAPTER 6MB-6MFOR 2

*Not Shown
