Upright SB80 - Figure 3-26: Jib Cylinder

SB80 Work Platform - European 3-23
M
AINTENANCE
Section
3.18

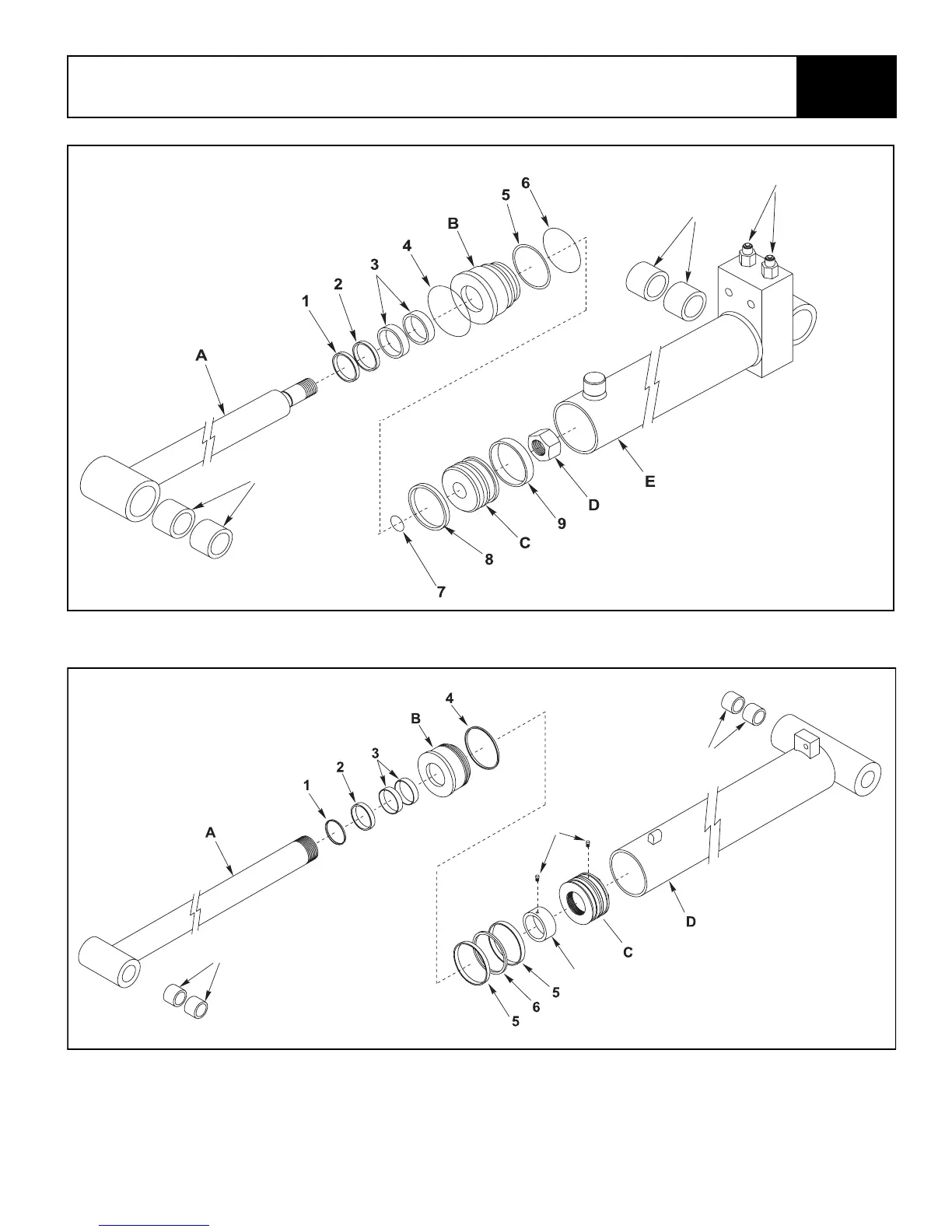

Figure 3-26: Jib Cylinder
Figure 3-27: Lift Cylinder
G
G
F
A. Rod
B. Head
C. Piston
D. Nut
E. Cylinder
F. Counterbalance
G. Bushing
Seal Kit 102251-010 Includes:
1. Rod Wiper
2. Rod Seal
3. Wear Ring
4. O-Ring
5. Backup Ring
6. O-Ring
7. O-Ring
8. Seal
9. Wear Ring
NOTE
:
T
orque
L
oc
k
nu
t
“D”t
o
339
-
407
N
m
F
G
E
E
Seal Kit 102254-010 Includes:
1. Rod Wiper
2. Rod Seal
3. Wear Ring
4. O-Ring
5. Wear Ring
6. Seal
A. Rod
B. Head
C. Piston
D. Cylinder
E. Bushing
F. Set Screw
G. Spacer
