Upright SB80 - 3.6 Proportional Controllers

SB80 Work Platform - European 3-7
M
AINTENANCE
Section
3.6
3.6 P
ROPORTIONAL
C
ONTROLLERS
Joystick Handle
1. If necessary, remove handle assembly from con-
troller box.
2. Remove and replace defective parts.
3. If replacing Digisensor, adjust Digisensor to neu-
tral (both LED’s on) when joystick is centered.
NOTE: Check that controller operates correctly
when handle is pushed completely forward and
reverse.
Refer to pages 6-50 (Gas) and 6-54 (Diesel) for
repair part numbers.

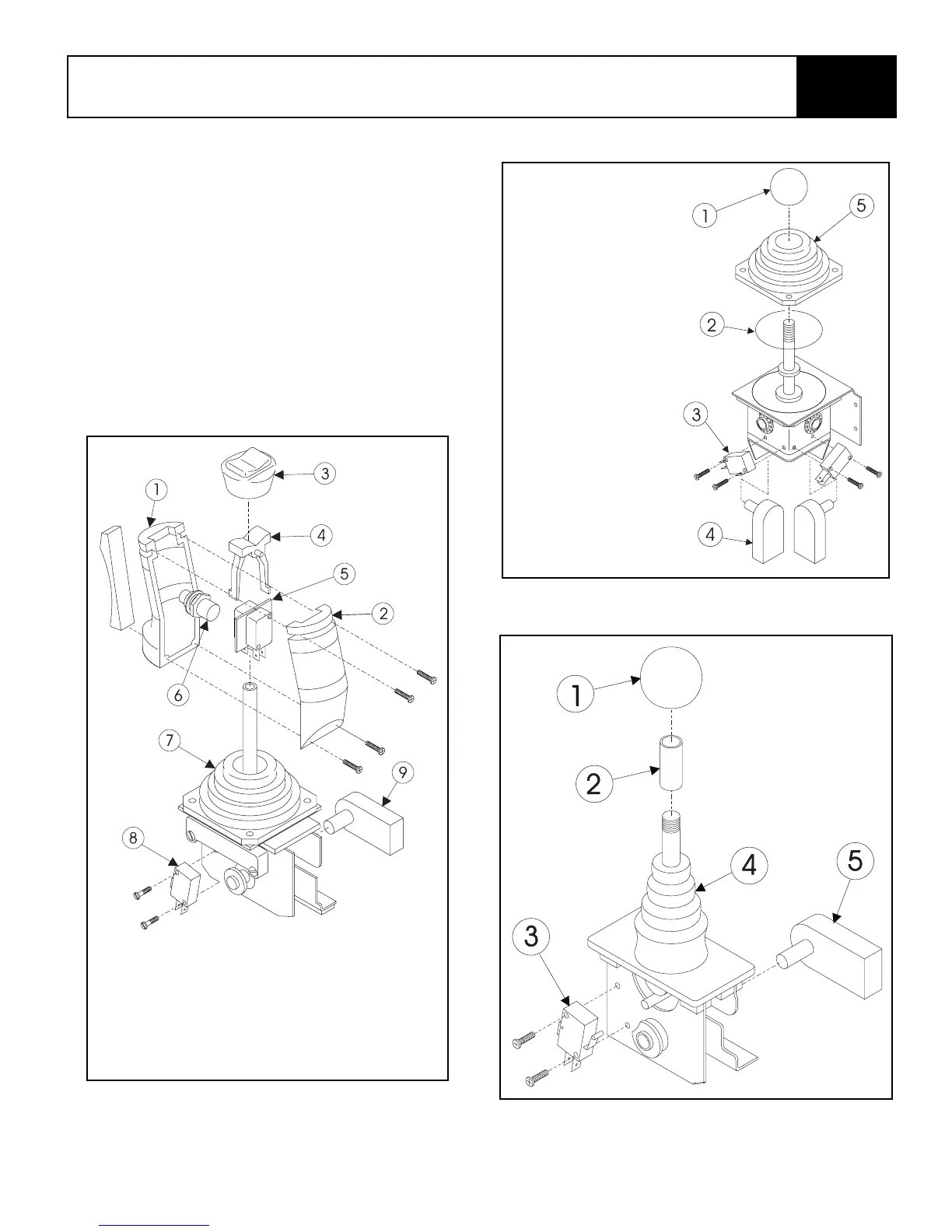

Figure 3-6: Proportional Controller
Figure 3-7: Lift Controller
Figure 3-8: Boom Extend Controller
1. Handle Half, Front
2. Handle Half, Rear
3. Rocker Boot
4. Rocker
5. Micro Switch
6. Switch
7. Handle Boot
8. Drive Micro Switch
9. Digisensor
1. Cap Handle
2. “O” Ring
3. Micro Switch
4. Boot
5. Boot
1. Cap handle
2. Handle Sleeve
3. Micro Switch
4. Boot
5. Digisensor
