Upright SB80 - Figure 5-12: Lower Controller

SB80 Work Platform - European 5-13
S
CHEMATICS
Section
5.3

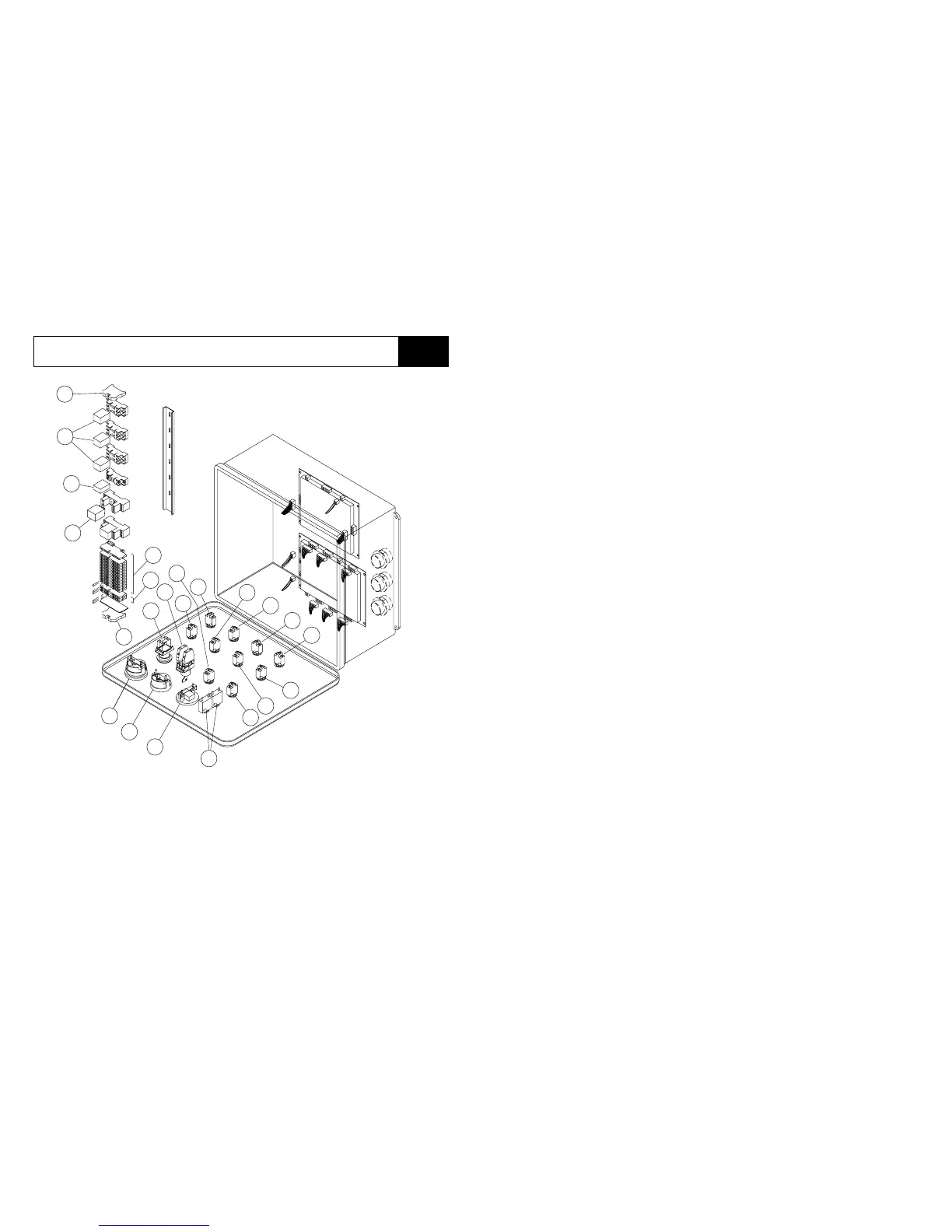

Figure 5-12: Lower Controller
1
2
3
4
5
8
9
7
22
10
11
15
14
13
12
16
21
20
19
18
17
16
6
1. Oil Pressure
2. Water Temp
3. Hour Meter
4. Emergency Stop
5. Key Switch
6. Engine Start
7. Glow Plug
8. Auxilliary Power
9. Enable
10. Boom Control
11. Boom Extend
12. Turret Control
13. Cage Rotate
14. Cage Level
15. End Block
16. Relay, Double
17. Relay, Double Pole
18. Relay, Single Pole
19. Relay
20. Terminal Block, Tan
21. Terminal Block,
Orange
22. Circuit Breaker
