Upright SB80 - Main Valve Block Assembly, SB80

To Next Page

To Previous Page

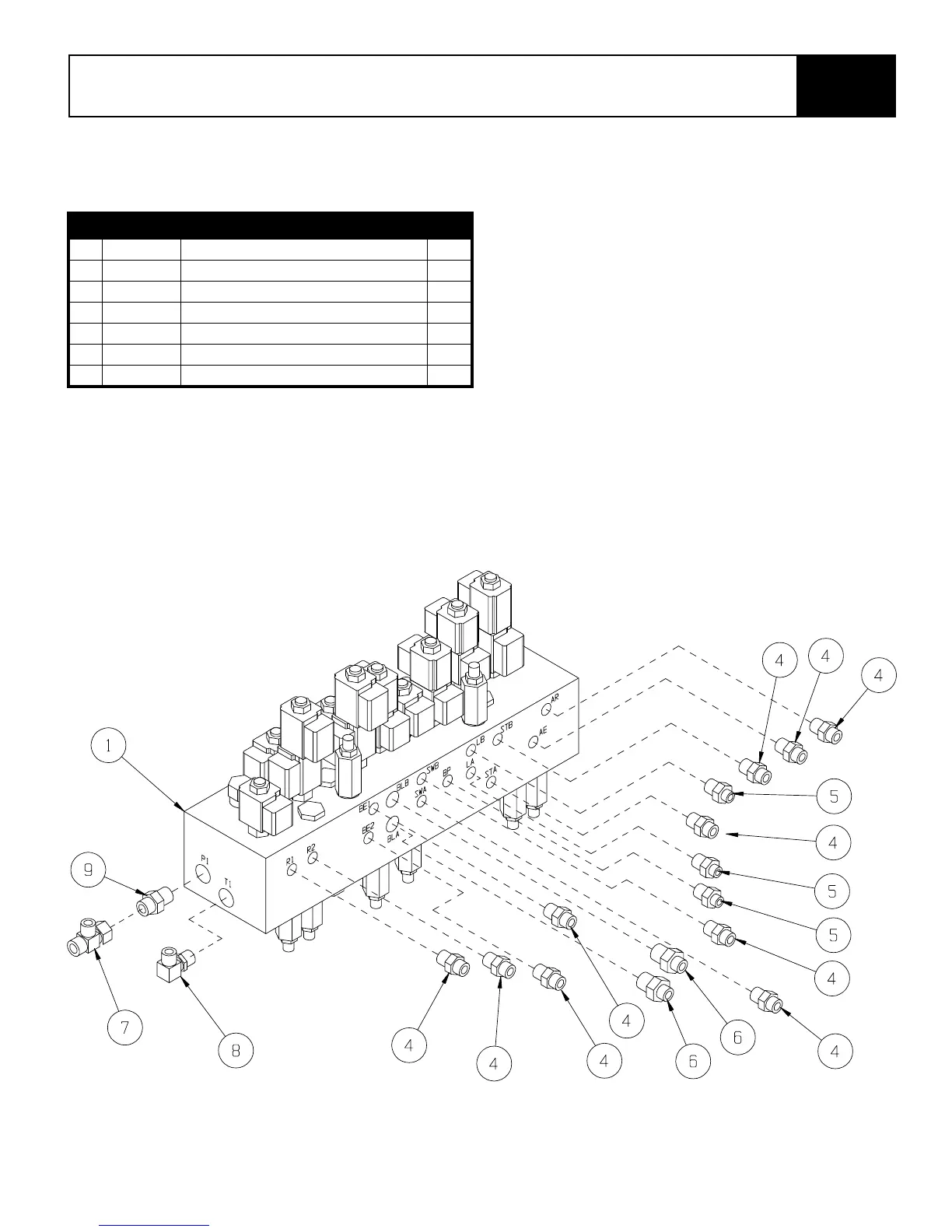

SB80 Work Platform - European 6-61

LLUSTRATED

ARTS

REAKDOWN

Section

6.1

AIN

ALVE

LOCK

SSEMBLY

SB80

102039-000

ITEM PART NO. DESCRIPTION QTY.

1 102272-000 VALVE BLOCK, 1

4 100432-009 FITTING, STR. 6MB-6MFOR 10

5 100432-004 FITTING, STR. 6MB-4MFOR 3

6 100432-010 FITTING, STR. ADAPTER 8MB-6MFOR 2

7 100448-002 FITTING, TEE 8FFORX-8MFOR-8MFOR 1

8 100434-014 FITTING, 90° 10MB-8MFOR 1

9 100432-016 FITTING, STR 10MB-8MF OR 1
