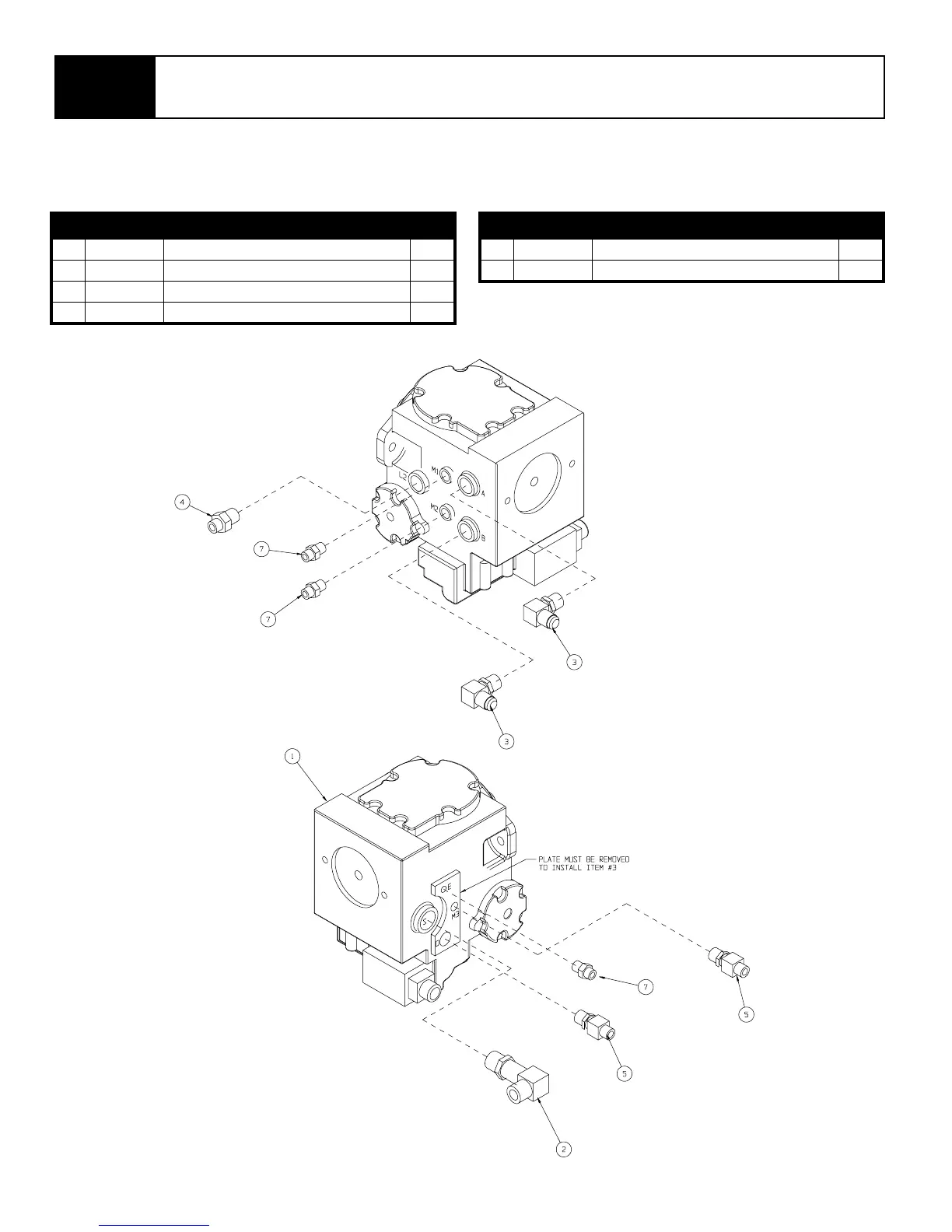

6-74 SB80 Work Platform - European

LLUSTRATED

ARTS

REAKDOWN

Section

6.1

RIVE

UMP

SSEMBLY

SB80

102325-000

ITEM PA RT NO. DESCRIPTION QTY.

1 102259-000 PUMP, SUNDSTRAND SERIES 42 1

2 102397-005 FITTING, 90° LG ADAPTER 16MB-16MFOR 1

3 011934-015 F ITTING, 90° ADAPTER 12MB-12MJ 2

4 100432-032 FITTING, STR. ADAPTER 16MB-12FOR 1

5 100432-020 FITTING, STG ADAPTER 10MB-8FOR 2

7 100432-007 FITTING, STR ADAPTER 6MB-4MF OR 3
