6-8 SB80 Work Platform - European
I
LLUSTRATED
P
ARTS
B
REAKDOWN
Section
6.1
F
INAL
A
SSEMBLY
, SB80
O
SCILLATING
A
XLE
, D
IESEL
102002-001

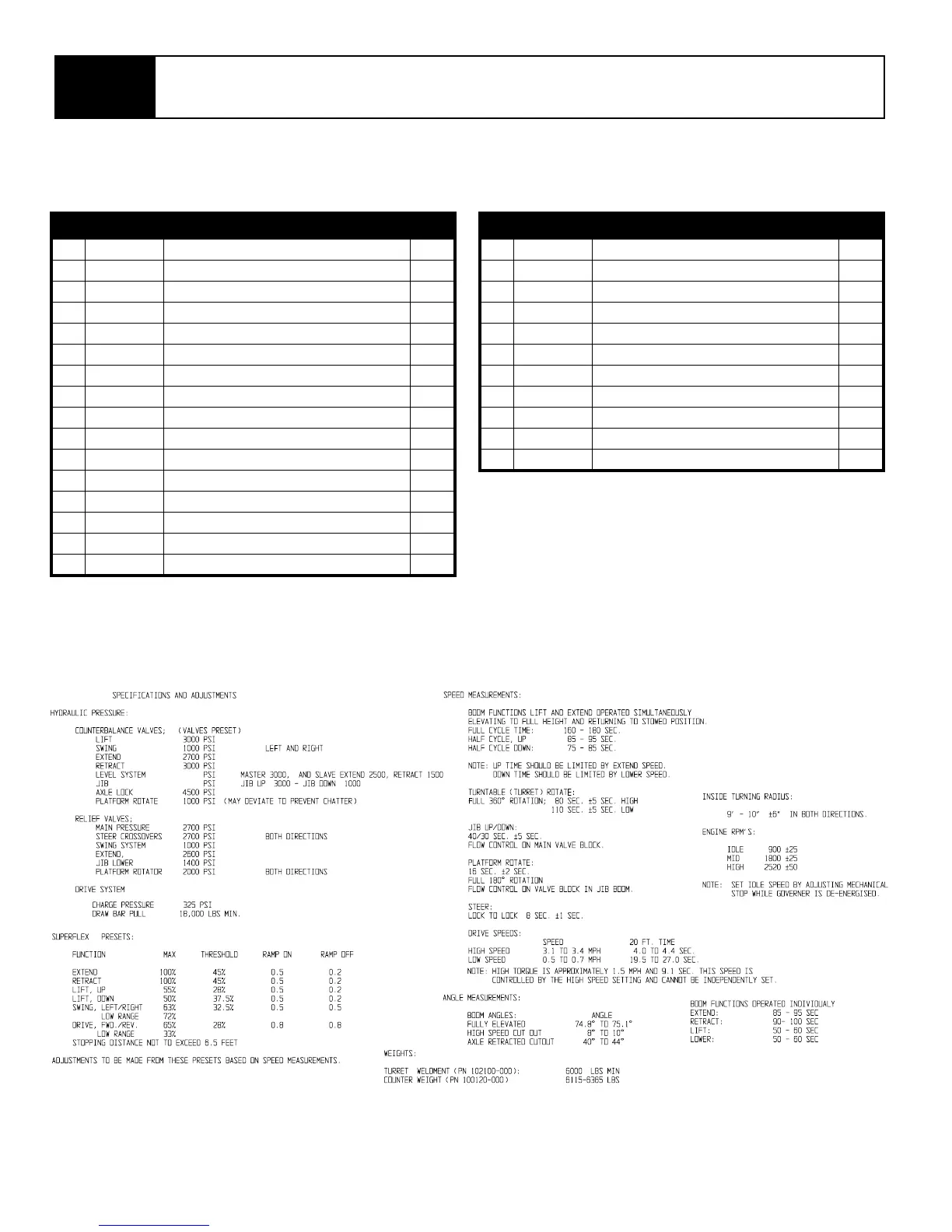

ITEM PA RT NO. DESCRIPTION QTY.
1 102005-000 BASIC ASSY. SB-80 DSL. (OSCIL. AXLE) 1
2 102046-000 COVER ASSY./INSTALLATION 1
4 102016-000 UPPER CONTROL BOX ASSY (DIESEL) 1
5 102029-001 HOSE KIT, OSCIL. AXLE 1
6 102024-005 LABEL KIT, DIESEL EUROPEAN 1
7 102037-100 PLATFORM ASSY, 6FT. EURO. 1
8 102027- HYDRAULIC SCHEMATIC RE F.
9 102026- ELECTRICAL SCHEMATIC REF.
10 063906-000 FOOT SWITCH 1
11 064479-000 GUARD, FOOT SWITCH 1
12 011252-006 SCREW, HHC. 1/4-20 UNC X 3/4 LG. 7
13 014996-004 WASHER, 1/4” SAE FLAT PLATED 9
14 011248-004 LOCKNUT, 1/4-20 UNC ESNA 11
15 011252-010 SCREW, HHC. 1/4-20 UNC X 1 1/4 LG. 2
16 068820-000 RETAINING STRAP, F OOT SWITCH 2
17 066695-006 SCREW, FLT HD #10-24 UNC X 3/4” LG. 2
18 013949-003 LOCKWASHER, #10 STAR EXTERNAL TOOTH 2
19 011250-003 HEX NUT, #10-24 UNC 2
20 029945-018 LEVEL SENSOR 1
23 102034-002 TIRE / WHEEL ASSY. L.H. (POLY FILLED) 2
24 102034-003 TIRE / WHEEL ASSY. R.H. (POLY FILLED) 2
25 011723-036 SCREW, HHC. 3/4-10 UNC X 4 1/2” LG. 4
26 011240-012 WASHER, 3/4 F LAT 4
27 011248-012 LOCKNUT, 3/4-10 UNC ESNA 4
28 102373-000 BRACKE T, CHAIN TIE DOWN 2
35 029435-099 CABLE, 3 COND. 12 GA. FT 105
36 102018-001 LOWER CONTROL BOX (EUROPEAN) 1
ITEM PA RT NO. DESCRIPTION QTY.
